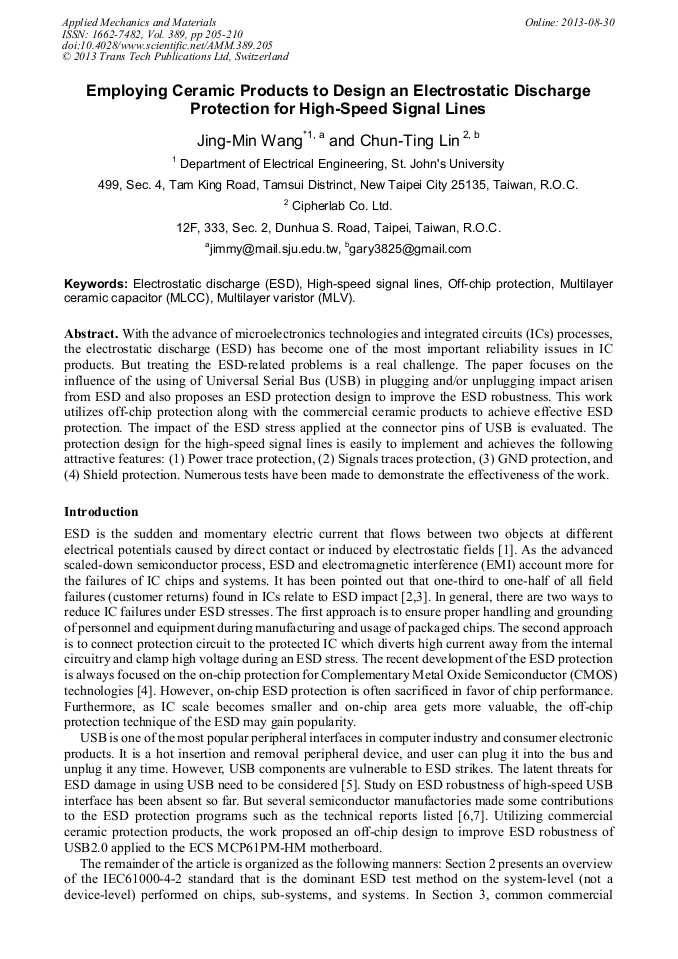

Employing Ceramic Products to Design an Electrostatic Discharge Protection for High-Speed Signal Lines

Abstract:

With the advance of microelectronics technologies and integrated circuits (ICs) processes, the electrostatic discharge (ESD) has become one of the most important reliability issues in IC products. But treating the ESD-related problems is a real challenge. The paper focuses on the influence of the using of Universal Serial Bus (USB) in plugging and/or unplugging impact arisen from ESD and also proposes an ESD protection design to improve the ESD robustness. This work utilizes off-chip protection along with the commercial ceramic products to achieve effective ESD protection. The impact of the ESD stress applied at the connector pins of USB is evaluated. The protection design for the high-speed signal lines is easily to implement and achieves the following attractive features: (1) Power trace protection, (2) Signals traces protection, (3) GND protection, and (4) Shield protection. Numerous tests have been made to demonstrate the effectiveness of the work.

• Periodical: Applied Mechanics and Materials (Volume 389)
• Pages: 205-210
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.389.205
• Online since: August 2013
• Authors: Jing Min Wang, Chun Ting Lin
• Keywords: Electrostatic Discharge (ESD), High-Speed Signal Lines, Multilayer Ceramic Capacitor (MLCC), Multilayer Varistor (MLV), Off-Chip Protection

References

[1] A. Amerasekera and C. Duvvury: ESD in Silicon Integrated Circuits 2/E, John Wiley & Sons (2002).

DOI: 10.1002/0470846054

[2] C. Rostamzadeh, H. Dadgostar, and F. Canavero: Electrostatic Discharge Analysis of Multilayer Ceramic Capacitors. IEEE International Symposium on Electromagnetic Compatibility (2009), pp.35-40.

DOI: 10.1109/isemc.2009.5284661

[3] T.J. Green and W.K. Denson: Review of EOS/ESD Field Failures in Military Equipment. Proc. of EOS/ESD Symposium (1988), pp.7-14.

[4] M. -D. Ker, C. -Y Lin, and Y. -W. Hsiao: Overview on ESD Protection Designs of Low- Parasitic Capacitance for RF ICs in CMOS Technologies. IEEE Trans. on Devices and Materials Realibility, Vol. 11, No. 2 (2011), P. 207-218.

DOI: 10.1109/tdmr.2011.2106129

[5] B.W. Fon and A. Prajuckamol: Integrated Solution for High Speed Data Filtering Using Package-in-Package Approach. Electronic Manufacturing Technology Symposium (2010), pp.1-5.

DOI: 10.1109/iemt.2010.5746697

[6] Texas Instruments. System-Level ESD/EMI Protection Guide. http: /www. ti. com/lit/ml/sszb130a/sszb130a.

[7] NXP Semiconductors. AN10753 ESD Protection for USB 2. 0 Interfaces. http: / www. nxp. com/documents/application_note/AN10753.

[8] IEC 61000-4-2 Standard, EMC - Part 4-2, Testing and Measurement Techniques – Electrostatic discharge immunity test, IEC. (2001).

[9] M.H. Ji, C.H. Choi, B.K. Jang, and B. K. Kim: Study on electrostatic discharge (ESD) reliability improvement of ZnO based multilayered chip varistor (MLV). Microelectronics Reliability, Vol. 4 (2004), pp.1565-1569.

DOI: 10.1016/j.microrel.2004.07.062

[10] M. Abdel-Salam, N.A. Ahmed, and I.S. Elhamd: Varistor as a Surge Protection Device for Electronic Equipments. IEEE International Conference on Industrial Technology, Vol. 2 ( 2004), pp.688-694.

DOI: 10.1109/icit.2004.1490158

[11] Compaq, Hewlett-Packard, Intel, Lucent, Microsoft, NEC and Philips, Universal Serial Bus Specification Revision 2. 0 (2000).
