Slow On-Off Control of Two-State Damping for Electrically Controlled Air Suspension Based on Extended Kalman Filter

Abstract:

To improve riding performance of the bus with air suspension, the half-car nonlinear model of air suspension was created with the help of analyzing nonlinear character of spring-pneumatic. Slow on-off control of two-state damping was proposed according to the tire deformation and suspension deflection, and the shock absorber with two-state damping was designed by opening and closing the orifice of throttle. It was difficult to obtain the tire deformation directly, and the state-observer of air suspension was proposed based on Extended Kalman Filtering (EKF) algorithm, namely the tire deformation was estimated by the suspension deflection and its relative changing speed. Simulation shows EKF algorithm can estimate the running states well, and the estimating error of RMS is below 10% in 3 seconds and the whole vehicle testing validate that the slow on-off control can enhance the capability of air suspension.

You might also be interested in these eBooks

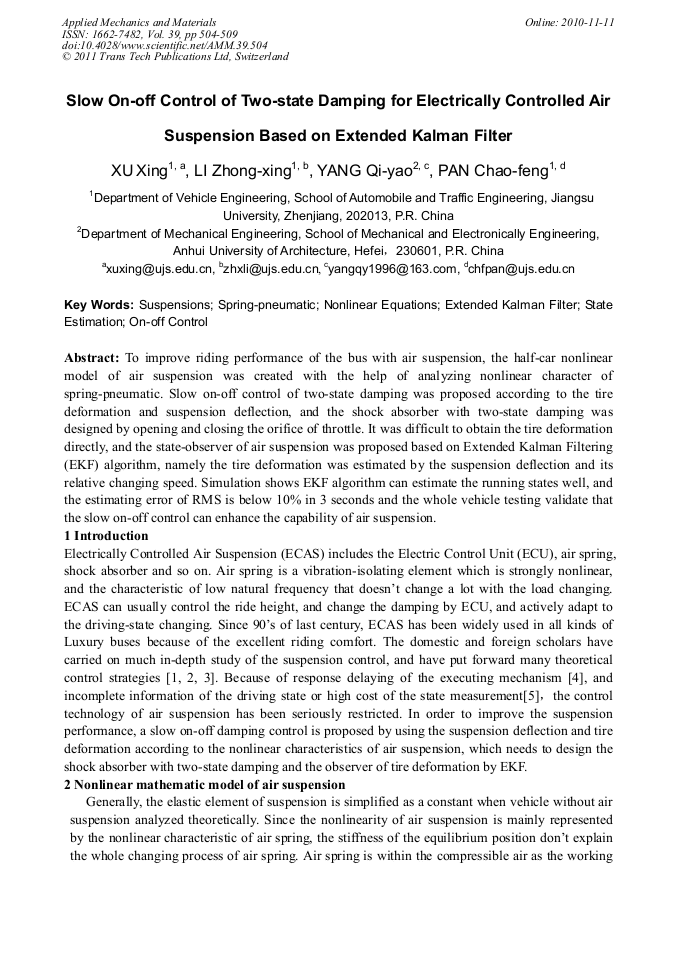

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volume 39)

Pages:

504-509

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.39.504

Citation:

Cite this paper

Online since:

November 2010

Authors:

Xing Xu, Zhong Xin Li, Qi Yao Yang, Chao Feng Pan

Keywords:

Extended Kalman Flter (EKF), Nonlinear Equation, On-Off Control, Spring-Pneumatic, State Estimation, Suspension

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Y.H. Chen, H.W. Liu and H.R. Lei: Journal of Jilin University of Technology (Natural Science Edition), Vol. 33(2003), p.7.

Google Scholar

[2] J.M. Sun, ZH.Q. Wang and X.Y. Zhang: Automotive Engineering, Vol. 25 (2003), p.362.

Google Scholar

[3] H. Porumamilla and A.G. Kelkar: 24th American Control Conference, Vol. 3 (2005), p.2203.

Google Scholar

[4] H.B. Jiang, E. Fang and K.K. Zhou: Journal of Jiangsu University (Natural Science Edition), Vol. 25(2005), p.394.

Google Scholar

[5] F. Yun, and Y. Lin, in: Vehicle system dynamics, edited by China machine press, BJ(2005) in press.

Google Scholar

[6] G.H. Liu and Y. Jiang: Journal of Jiangsu University (Natural Science Edition), Vol. 24(2006), p.247.

Google Scholar

[7] Information on http: /www. cs. unc. edu/~tracker/ref/s2001/kalman.

Google Scholar

[8] S.G. Mohinder and P. A. Angus, in: John Wiley &Sons, Inc, NY (2001), in press.

Google Scholar
