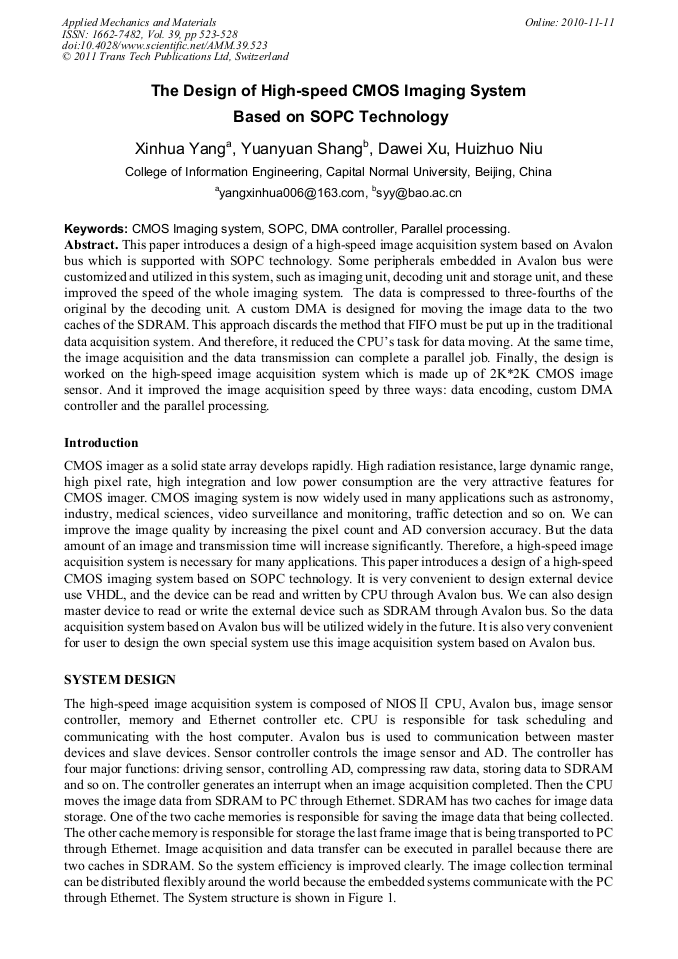

The Design of High-Speed CMOS Imaging System Based on SOPC Technology

Abstract:

This paper introduces a design of a high-speed image acquisition system based on Avalon bus which is supported with SOPC technology. Some peripherals embedded in Avalon bus were customized and utilized in this system, such as imaging unit, decoding unit and storage unit, and these improved the speed of the whole imaging system. The data is compressed to three-fourths of the original by the decoding unit. A custom DMA is designed for moving the image data to the two caches of the SDRAM. This approach discards the method that FIFO must be put up in the traditional data acquisition system. And therefore, it reduced the CPU’s task for data moving. At the same time, the image acquisition and the data transmission can complete a parallel job. Finally, the design is worked on the high-speed image acquisition system which is made up of 2K*2K CMOS image sensor. And it improved the image acquisition speed by three ways: data encoding, custom DMA controller and the parallel processing.

• Periodical: Applied Mechanics and Materials (Volume 39)
• Pages: 523-528
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.39.523
• Online since: November 2010
• Authors: Xin Hua Yang, Yuan Yuan Shang, Da Wei Xu, Hui Zhuo Niu
• Keywords: CMOS Imaging System, DMA Controller, Parallel Processing, SOPC

References

[1] Ma Sen, Shang Yuanyuan, Research on Embedded Surveillance Platform in Severe Environment, sec, pp.47-52, 2008 Fifth IEEE International Symposium on Embedded Computing, (2008).

DOI: 10.1109/sec.2008.39

[2] A. Dandalis and V.K. Prasanna, Configuration Compression for FPGA based Embedded Systems FPGA, 2001, February 11-13, 2001, Monterey CA, USA.

DOI: 10.1145/360276.360342

[3] Ni F L, Jin M H, A highly integrated joint servo system based on FPGA with Nios II processor, Conf. Proc. On Mechatronics and Automation (Luoyang) 973-8, (2006).

DOI: 10.1109/icma.2006.257757

[4] D. Lewis and Al, The StratixTM Routing and Logic Architecture, FPGA 03, February 23-25, 2003, Monterey, California, USA.

[5] Tong J G, Anderson I D L, Soft-core processors for embedded systems, Conf. Proc. On Microelectronics (Dhahran) 170-3, (2005).

[6] Alistair J. Fitch, Alexander Kadyrov, William J. Christmas and Josef Kittler, Fast Robust Correlation, IEEE, (2005).

[7] F. Ghozzi, P. Nouel, Ph. Marchegay, Acquisition memorisation video systeme excalibur, IEEE Canada, Conference Canadienne en Genie Electrique et Informatique 2003, Montreal, Mai (2003).

DOI: 10.1109/ccece.2003.1226132

[8] P. Supan, I. Stuppacher and M. Haller. Image Based Shadowing in Real-Time Augmented Teality, In the International Journal of Virtual Reality, vol. 5, no. 3, pp.1-7, September (2007).

DOI: 10.20870/ijvr.2006.5.3.2692

[9] Robson C W Bousselham, An FPGA based general purpose data acqui-siton controller, IEEE Transactions on Nuclear Science 10 (2092).

DOI: 10.1109/tns.2006.878698

[10] McMillan and Bishop. Plenoptic Modeling: An Image-Based Rendering System, In Proceedings of ACM SIGGRAPH 95, ACM Press/ACM SIGGRAPH, New York. ACM, pp.39-46.

DOI: 10.1145/218380.218398
