The Influence of Bath Concentration on Particle Size of Cobalt Nanoparticles

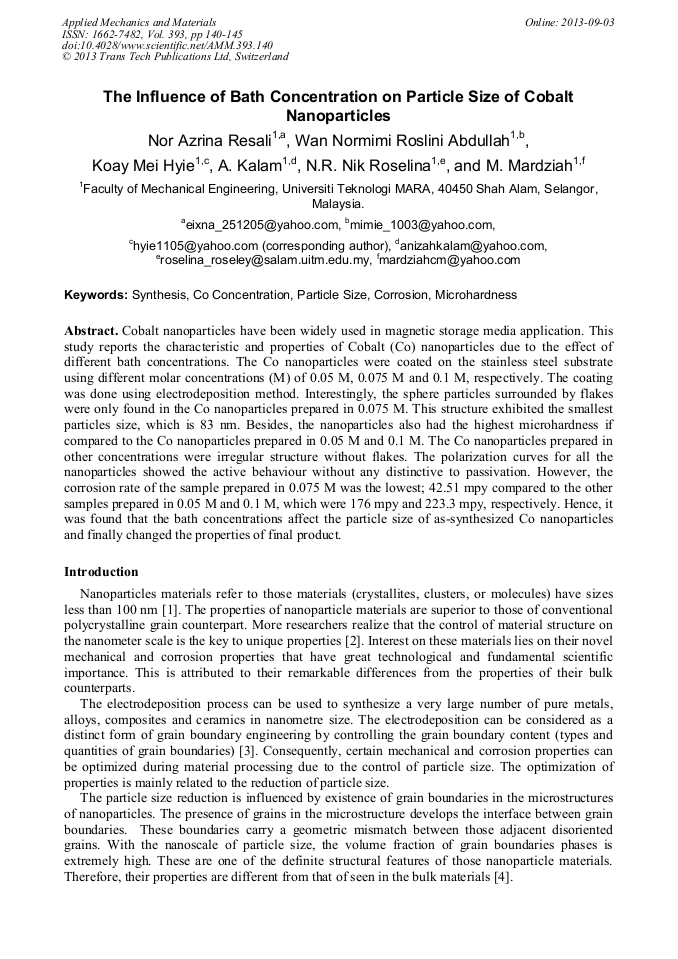

Abstract:

Cobalt nanoparticles have been widely used in magnetic storage media application. This study reports the characteristic and properties of Cobalt (Co) nanoparticles due to the effect of different bath concentrations. The Co nanoparticles were coated on the stainless steel substrate using different molar concentrations (M) of 0.05 M, 0.075 M and 0.1 M, respectively. The coating was done using electrodeposition method. Interestingly, the sphere particles surrounded by flakes were only found in the Co nanoparticles prepared in 0.075 M. This structure exhibited the smallest particles size, which is 83 nm. Besides, the nanoparticles also had the highest microhardness if compared to the Co nanoparticles prepared in 0.05 M and 0.1 M. The Co nanoparticles prepared in other concentrations were irregular structure without flakes. The polarization curves for all the nanoparticles showed the active behaviour without any distinctive to passivation. However, the corrosion rate of the sample prepared in 0.075 M was the lowest; 42.51 mpy compared to the other samples prepared in 0.05 M and 0.1 M, which were 176 mpy and 223.3 mpy, respectively. Hence, it was found that the bath concentrations affect the particle size of as-synthesized Co nanoparticles and finally changed the properties of final product.

• Periodical: Applied Mechanics and Materials (Volume 393)
• Pages: 140-145
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.393.140
• Online since: September 2013
• Authors: Nor Azrina Resali, Wan Normimi Roslini Abdullah, Koay Mei Hyie, Anizah Kalam, N.R. Nik Roselina, C.M. Mardziah
• Keywords: CO Concentration, Corrosion, Microhardness, Particle Size, Synthesis

References

[1] M. D. L. Balela, Synthesis and Characterization of Cobalt Nanoparticles Prepared by Liquid-Phase Reduction, Thesis Master of Science, Universiti Sains Malaysia (2008).

[2] Y. Marita and I.I. Yaacob, Synthesis and Characterization of Nickel-Iron-Silicon Nitride Nanocomposite, Advanced Materials Research 97-101 (2010) 1360-1363.

DOI: 10.4028/www.scientific.net/amr.97-101.1360

[3] U. Erb, K.T. Aust and G. Palumbo, Synthesis, Structure and Properties of Electroplated Nanocrystalline Materials, Journal of Nanostructured Materials 2(4) (1993) 383-390.

DOI: 10.1016/0965-9773(93)90180-j

[4] I. A. Ovid'ko, C. S. Pande and R. A. Masumura, Grain boundaries in Nanomaterials in: Y. Gogotsi (Eds. ), Nanomaterials Handbook, CRC Press, (2006).

DOI: 10.1201/9781420004014.ch18

[5] A. A. Karimpoor, U. Erb, K. T. Aust, Z. Wang, and G. Palumbo, Tensile Properties of Bulk Nanocrystalline Hexagonal Cobalt Electrodeposits, Journal of Metastable and Nanocrystalline Materials 13 (2002) 415-420.

DOI: 10.4028/www.scientific.net/jmnm.13.415

[6] S. H. Kim, K. T. Aust, U. Erb, F. Gonzalez and G. Palumbo, A Comparison of the Corrosion Behaviour of Coarse-grained and Nanocrystalline Cobalt, Scripta Mater. 48 (2003) 1379.

[7] A. Aledresse and A. Alfantazi, A Study on the Corrosion Behavior of Nanostructured Electrodeposited Cobalt, Journal Material Science 39 (2004) 1523.

DOI: 10.1023/b:jmsc.0000013934.85378.40

[8] H. Karami and E.M. Zadeh, Synthesis of Cobalt Nanorods by the Pulsed Current Electrochemical Method, International Journal Electrochemical Science 5 (2010) 1032–104.

[9] X. Liu et al., Highly Ordered Snowflake like Metallic Cobalt Microcrystal, Journal Physical Chemistry 111 (2006) 163-167.

[10] L. Yang, Techniques for Corrosion Monitoring. United States of America: Woodhead Publishing Ltd., (2008).

[11] C. Suryanarayana, Nanocrystalline Materials: Review Paper, International Materials Review, 40(2) (1995) 41-64.
