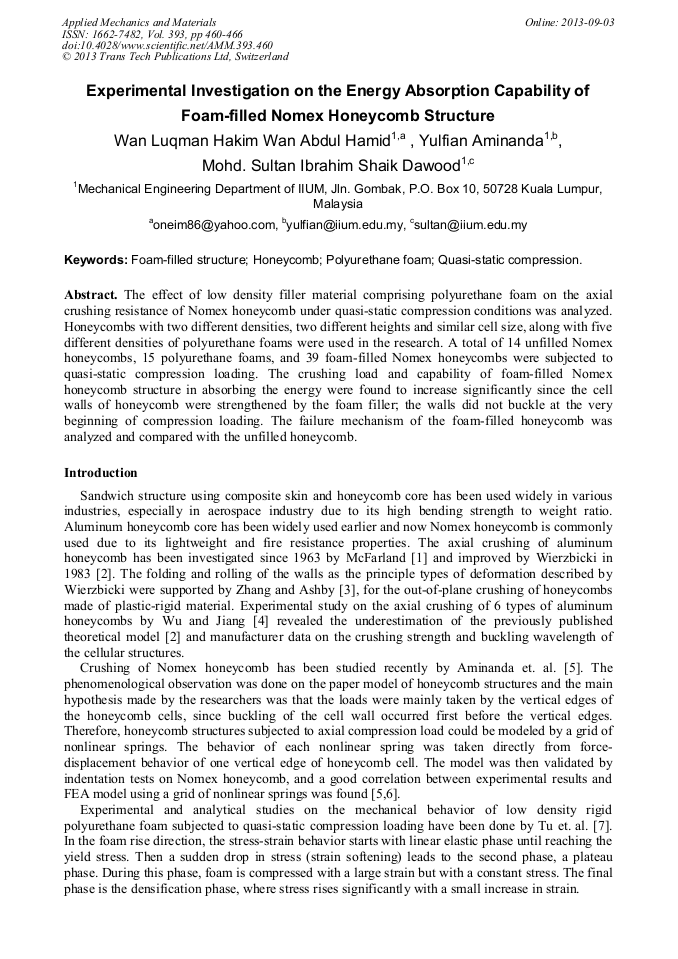

Experimental Investigation on the Energy Absorption Capability of Foam-Filled Nomex Honeycomb Structure

Abstract:

The effect of low density filler material comprising polyurethane foam on the axial crushing resistance of Nomex honeycomb under quasi-static compression conditions was analyzed. Honeycombs with two different densities, two different heights and similar cell size, along with five different densities of polyurethane foams were used in the research. A total of 14 unfilled Nomex honeycombs, 15 polyurethane foams, and 39 foam-filled Nomex honeycombs were subjected to quasi-static compression loading. The crushing load and capability of foam-filled Nomex honeycomb structure in absorbing the energy were found to increase significantly since the cell walls of honeycomb were strengthened by the foam filler; the walls did not buckle at the very beginning of compression loading. The failure mechanism of the foam-filled honeycomb was analyzed and compared with the unfilled honeycomb.

• Periodical: Applied Mechanics and Materials (Volume 393)
• Pages: 460-466
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.393.460
• Online since: September 2013
• Authors: Wan Luqman Hakim Wan Abdul Hamid, Yulfian Aminanda, Mohamed Shaik Dawood
• Keywords: Foam-Filled Structure, Honeycomb, Polyurethane Foam, Quasi-Static Compression

References

[1] McFarland, R.K., Jr. Hexagonal cell structures under post-buckling axial load, AIAA Journal, Volume 1, No. 6 (1963), pp.1380-1385.

DOI: 10.2514/3.1798

[2] Wierzbicki, T., Crushing analysis of metal honeycombs, International Journal of Impact Engineering, Volume 1, No. 2 (1983), pp.157-174.

DOI: 10.1016/0734-743x(83)90004-0

[3] Zhang J. and Ashby, M.F., The out-of-plane properties of honeycombs, International Journal of Mechanical Sciences, Volume 34, No. 6 (1992), pp.475-489.

DOI: 10.1016/0020-7403(92)90013-7

[4] Wu, E. and Jiang, W. -S., Axial crush of metallic honeycombs, International Journal of Impact Engineering, Volume 19, Nos. 5-6 (1997), pp.439-456.

DOI: 10.1016/s0734-743x(97)00004-3

[5] Aminanda, Y., Castanié, B., Barrau, J.J., and Thevenet, P., Experimental analysis and modeling of the crushing of honeycomb cores, Applied Composite Materials, Volume 12 (2005), pp.213-227.

DOI: 10.1007/s10443-005-1125-3

[6] Castanié, B., Bouvet, C., Aminanda, Y., Barrau, J.J., and Thevenet, P., Modelling of low energy/low velocity impact on Nomex honeycomb sandwich structures with metallic skins, International Journal of Impact Engineering, Volume 35, Issue 7 (2008).

DOI: 10.1016/j.ijimpeng.2007.02.008

[7] Tu, Z.H., Shim, V.P.W., Lim, C.T., Plastic deformation modes in rigid polyurethane foam under static loading, International Journal of Solids and Structures, Volume 38 (2001), pp.9267-9279.

DOI: 10.1016/s0020-7683(01)00213-x

[8] Reddy, T.Y., and Wall, R.J., Axial compression of foam-filled thin-walled circular tubes, International Journal of Impact Engineering, Volume 7, No. 2 (1988), pp.151-166.

DOI: 10.1016/0734-743x(88)90023-1

[9] Abramowicz W. and Wierzbicki T., Axial crushing of foam-filled columns, International Journal of Mechanical Sciences, Volume 30, No. ¾ (1988), pp.263-271.

DOI: 10.1016/0020-7403(88)90059-8

[10] Ismail, A.E., Experimental studies on the quasi-static axial crushing behavior of foam-filled steel extrusion tubes, IIUM Engineering Journal, Volume 10, No. 1 (2009), pp.1-17.

DOI: 10.31436/iiumej.v10i1.101
