Metal Transfer Behavior of Consumable DE-GMAW

Abstract:

Consumable double-electrode gas metal arc welding (consumable DE-GMAW) is a novel and high efficient welding method. According to the different polarity of two electrodes in consumable DE-GMAW, the metal transfer behaviors are analyzed by using the state force balance theory. For main torch with direct current electrode positive polarity, the arc root area is enlarged by bypass arc and increased electromagnetic force promotes main metal transfer. For bypass torch with direct current electrode negative polarity, the electromagnetic force does not work on the melting area. Only gravity force is major detaching force. The volume of bypass droplet is large and not easily detache to the weld pool.

You might also be interested in these eBooks

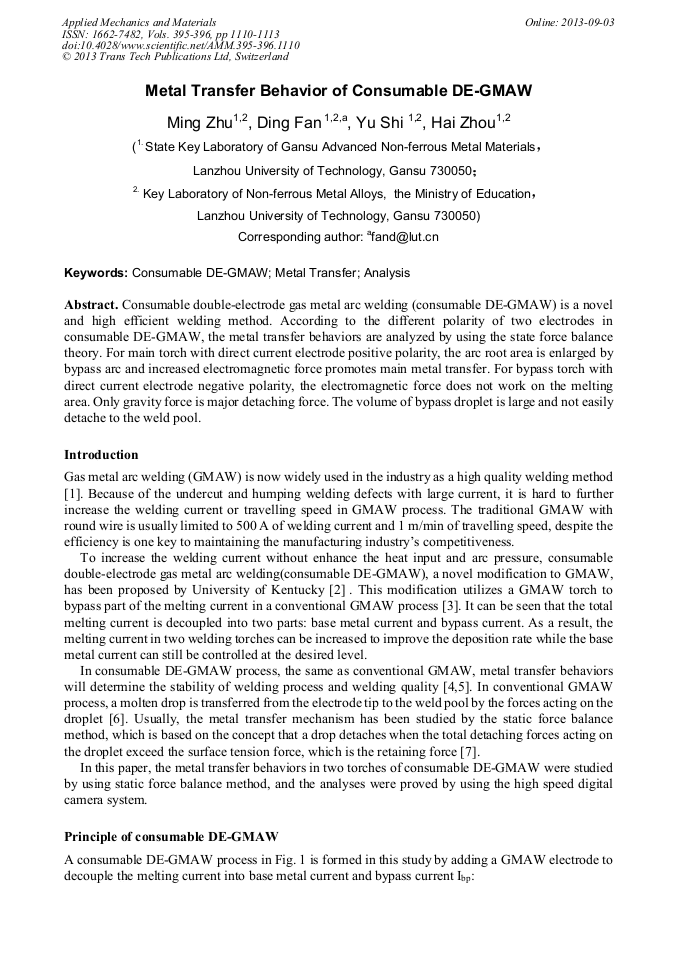

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volumes 395-396)

Pages:

1110-1113

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.395-396.1110

Citation:

Cite this paper

Online since:

September 2013

Authors:

Ming Zhu, Ding Fan, Yu Shi, Hai Zhou

Keywords:

Analysis, Consumable De-GMAW, Metal Transfer

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] SHI Yu，ZHU Ming，HUANG Jiankang，et al. Study on control system for high efficiency double-electrode MIG welding[J]. Transactions of the China Welding Institution，2012，33(3): 17-20.

Google Scholar

[2] LI K H, CHEN J S, ZHANG Y M. Double-electrode GMAW process and control [J]. Welding Journal, 2007, 86(8): 231-237.

Google Scholar

[3] Zhang Y M, Jiang M，LU W. Double electrodes GMAW improve heat input control[J]. Welding Journal, 2004, 83(11): 39-41.

Google Scholar

[4] HUANG Jiankang，ZHU Ming，SHI Yu，et al. Modeling and simulation for DE-GMAW[J]. Transactions of the China Welding Institution，2012，33(6)：63-67.

Google Scholar

[5] ZHU Ming，SHI Yu，WANG Guilong，et al. Simulation and experiment of decoupling control for consumable DE-GMAW[J]. Journal of Mechanical Engineering, 2012, 48(22): 46-51.

DOI: 10.3901/jme.2012.22.046

Google Scholar

[6] SHI Yu，CHEN Zuoyan，XUE Cheng，et al. Research on metal transfer in dual bypass MIG welding of aluminum[J]. Journal of Mechanical Engineering，2010，46(20)：76-79.

DOI: 10.3901/jme.2010.20.076

Google Scholar

[7] SHI Yu，LIU X，ZHANG Y，et al. Analysis of metal transfer and correlated influences in dual-bypass GMAW of aluminum [J]. Welding Journal, 2008, 87：229-236.

Google Scholar
