For Libraries For Publication Open Access Downloads About Us Contact Us
Paper Titles
Impact of DOM in Reclaimed Water on Nitrogen/Phosphate Adsorption in Sediments
p.678
Amplification and Bioinformatics Analysis of IGS1 Sequence of Aurcularia Auricular
p.686
Bioinformatic Analysis of rbcL Gene in Lilium
p.691
Numerical Simulation of Preparation Process of Selective Absorbing Coating Based on Magnetron Sputtering Technology
p.699
Development of Thermal Barrier Coatings on AZ91 Magnesium Alloy Surface
p.703
Anti-Corrosion Performance of Four Hot Dip Galvanizing Bolts
p.708
Effect of Vanadium and Niobium on Abrasive Behaviour of Arc Sprayed 4Cr13 Coatings
p.712
Investigating the use of Nanoscale Bilayers Assembly on Stainless Steel Plate to Improve Evaporation
p.718
Oxidation Protective Barrier Coatings for Austenitic Stainless Steels at 1100°C
p.726

Development of Thermal Barrier Coatings on AZ91 Magnesium Alloy Surface

Article Preview

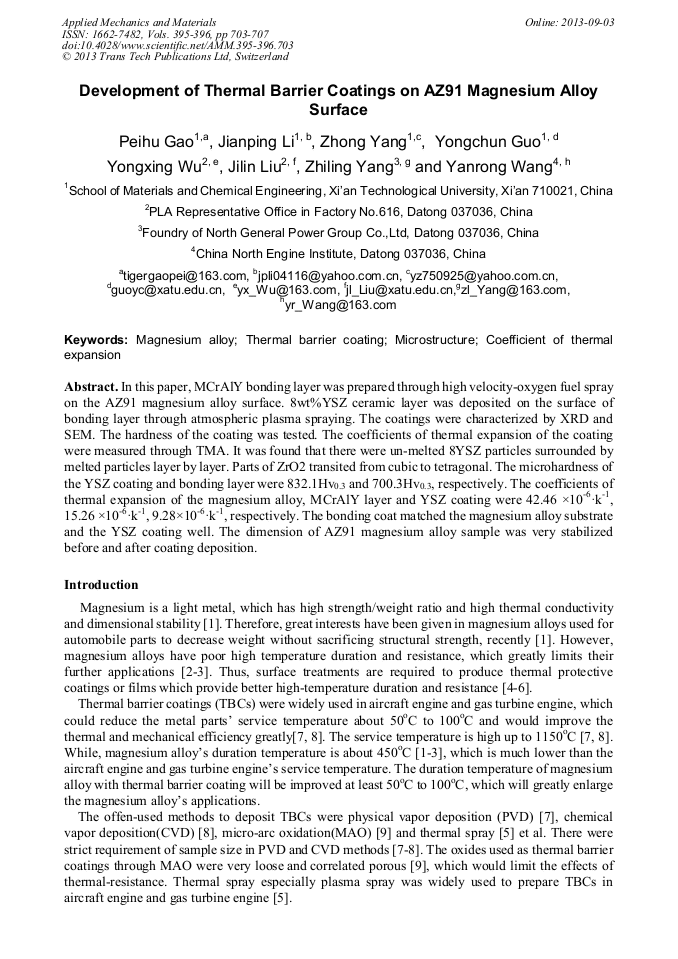

Abstract:

In this paper, MCrAlY bonding layer was prepared through high velocity-oxygen fuel spray on the AZ91 magnesium alloy surface. 8wt%YSZ ceramic layer was deposited on the surface of bonding layer through atmospheric plasma spraying. The coatings were characterized by XRD and SEM. The hardness of the coating was tested. The coefficients of thermal expansion of the coating were measured through TMA. It was found that there were un-melted 8YSZ particles surrounded by melted particles layer by layer. Parts of ZrO2 transited from cubic to tetragonal. The microhardness of the YSZ coating and bonding layer were 832.1Hv0.3 and 700.3Hv0.3, respectively. The coefficients of thermal expansion of the magnesium alloy, MCrAlY layer and YSZ coating were 42.46 ×10-6·k-1, 15.26 ×10-6·k-1, 9.28 ×10-6·k-1, respectively. The bonding coat matched the magnesium alloy substrate and the YSZ coating well. The dimension of AZ91 magnesium alloy sample was very stabilized before and after coating deposition.

You might also be interested in these eBooks
Advanced Materials and Processes III View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volumes 395-396)

Pages:

703-707

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.395-396.703

Citation:

Cite this paper

Online since:

September 2013

Authors:

Pei Hu Gao, Jian Ping Li, Zhong Yang, Yong Chun Guo, Yong Xing Wu, Ji Lin Liu, Zhi Lin Yang, Yan Rong Wang

Keywords:

Coefficient of Thermal Expansion, Magnesium Alloy, Microstructure, Thermal Barrier Coating (TBC)

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2013 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

References

[1] B.L. Mordike, T. Ebert: Mat. Sci. Eng. A. Vol. 302 (2001), p.37.

Google Scholar

[2] J.E. Gray, B Luan: J. Alloys. Compd. Vol. 336 (2002), p.88.

Google Scholar

[3] Guangling Song: Mater. Sci. Forum Vol. 488-489 (2005), p.649.

Google Scholar

[4] N.P. Padture, M Gell, E.H. Jordan: Science Vol. 296 (2002), p.280.

Google Scholar

[5] C.J. Li, A Ohmori: J. Therm. Spray Techn. Vol. 11 (2002), p.365.

Google Scholar

[6] R.A. Miller: Surf. Coat. Tech. Vol. 30 (1987), p.1.

Google Scholar

[7] W. Belle, G. Marijnissen, A.V. Lieshout: Surf. Coat. Tech. Vol. 120−121 (1999), p.61.

Google Scholar

[8] J.T. DeMasi Marcin, D.K. Gupta: Surf. Coat. Tech. Vol. 68 (1994), p.1.

Google Scholar

[9] J.L. Patel, N. Szka, U.S. Patent 6, 197, 178. (2001).

Google Scholar

[10] G. Štefanić, S. Musić, A. Gajović: J. Eur. Ceram. Soc. Vol. 27 (2007), p.1001.

Google Scholar

© 2025 Trans Tech Publications Ltd. All rights are reserved, including those for text and data mining, AI training, and similar technologies. For open access content, terms of the Creative Commons licensing CC-BY are applied.
Scientific.Net is a registered trademark of Trans Tech Publications Ltd.
