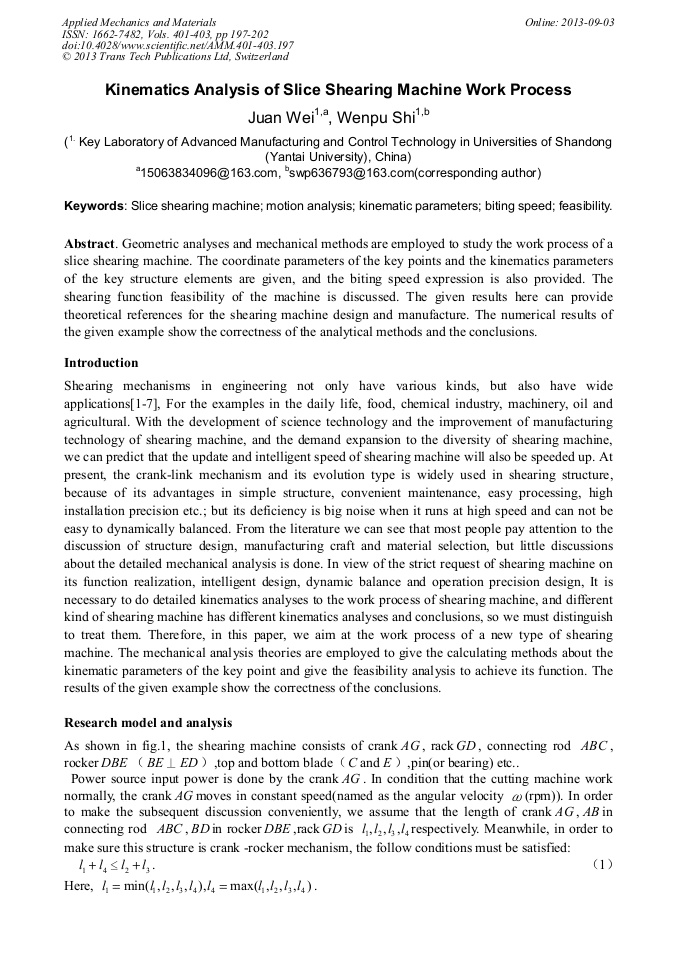

Kinematics Analysis of Slice Shearing Machine Work Process

Abstract:

Geometric analyses and mechanical methods are employed to study the work process of a slice shearing machine. The coordinate parameters of the key points and the kinematics parameters of the key structure elements are given, and the biting speed expression is also provided. The shearing function feasibility of the machine is discussed. The given results here can provide theoretical references for the shearing machine design and manufacture. The numerical results of the given example show the correctness of the analytical methods and the conclusions.

• Periodical: Applied Mechanics and Materials (Volumes 401-403)
• Pages: 197-202
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.401-403.197
• Online since: September 2013
• Authors: Juan Wei, Wen Pu Shi
• Keywords: Biting Speed, Feasibility, Kinematic Parameters, Motion Analysis, Slice Shearing Machine

References

[1] Pere Liu, Calculation of shearing force for slitting shears, Iron and Steel, 31(8) (1996) 55-60(In Chinse).

[2] Ming Liu, Jian Dong, JIAO Zhidong. 250T crank shearing machine optimization improvements, Modern manufacturing technology and equipment, 5( 2011) 53-62(In Chinse).

[3] Ming Fei Tan, Application of Planar linkage mechanism in the shearing machine, Metal Forming, 9(2011)57-57(In Chinse).

[4] Qing Zhang, FENG Changfu , CUI QIhui etc., Continuous rotary shearing machine and its application, Forestry Machinery and Woodworking Equipment, 30(2)(2002) 27-28(In Chinse).

[5] Chang Rong Liu, Fang Chen, Tao Liu, et al, Design of a roller-type clipper, Journal of Hebei Normal University of Science &Technology , 21(2)(2007)43-46(In Chinse).

[6] Man Long Chen, Method od blade adjustment for hydraulic rotary shear, Equipment, 1(2007)22-24(In Chinse).

[7] Liang Chen, Li Kun Wang, Research and experiment on the new material of the shear blades. Boiler Manufacturing, 4(2012) 52-54(In Chinse).
