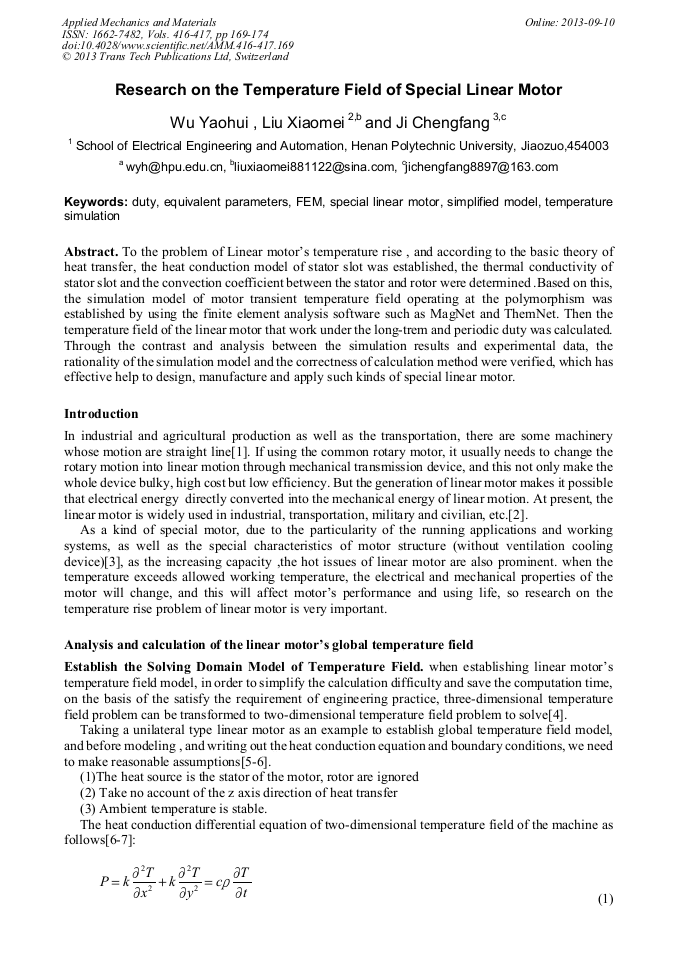

Research on the Temperature Field of Special Linear Motor

Abstract:

To the problem of Linear motors temperature rise , and according to the basic theory of heat transfer, the heat conduction model of stator slot was established, the thermal conductivity of stator slot and the convection coefficient between the stator and rotor were determined .Based on this , the simulation model of motor transient temperature field operating at the polymorphism was established by using the finite element analysis software such as MagNet and ThemNet. Then the temperature field of the linear motor that work under the long-trem and periodic duty was calculated. Through the contrast and analysis between the simulation results and experimental data, the rationality of the simulation model and the correctness of calculation method were verified, which has effective help to design, manufacture and apply such kinds of special linear motor.

• Periodical: Applied Mechanics and Materials (Volumes 416-417)
• Pages: 169-174
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.416-417.169
• Online since: September 2013
• Authors: Yao Hui Wu, Xiao Mei Liu, Cheng Fang Ji
• Keywords: Duty, Equivalent Parameters, Finite Element Method (FEM), Simplified Model, Special Linear Motor, Temperature Simulation

References

[1] Charles A. Gross write, and Zhang Bingyi translation, Electric Machines, Beijing: Posts and Telecom Press(2012).

[2] Ye Yunyue, New straight line driving devices and systems, Beijing: Metallurgical industry press(2000).

[3] Huang Guangxia, Yuan Shiying, Wang Xudong: Analysis on thermal field in permanent magnet linear synchronous motor based on infolttica, Coal technology(2007).

[4] Wu Yaohui, Liu Xiaomei, Meng Xiufeng, Zhao Hongtu: Research on Temperature Field of Variable Frequency Motor, Applied Mechanics and Materials Vol. 273 (2013), p.355.

DOI: 10.4028/www.scientific.net/amm.273.355

[5] Mo xiaojie: Research on the hot state characteristics of permanent magnet linear motor feeding system, A master's degree thesis, Hangzhou: Zhejiang university (2013).

[6] Ma Jun: Research on the erection of cylindrical linear motor model and dynamic thermal fiddle, A master's degree thesis, Harbin: Harbin university of science and technology (2005).

[7] Li Hongtao: The design of long-primary linear induction motor and research on electro-magnetic and thermal field, A master's degree thesis, Harbin: Harbin university of science and technology, (2008).

[8] Hu Minqiang, Huang Xueliang: Numerical computation method of electric machine performance and its application, Jangsu: Southeast university press (2003).

[9] Long Lingxia: Theory of linear induction motor and the electromagnetic design method, Beijing: Science press (2006).

[10] Wu Jianwen, Li Decheng: Modern motor testing technology, Beijing: Mechanical industry press(2006).

[11] Hu Yan, Wu Jianwen, Li Decheng: Small motor modern practical design techniques, Beijing: Mechanical industry press (2008).

[12] Bobby, DanKeBook, QiuJianFu, WeiShuCi translation. The air in the motor dynamics and heat transfer [M]. Beijing: machinery industry publicationClub (1985).
