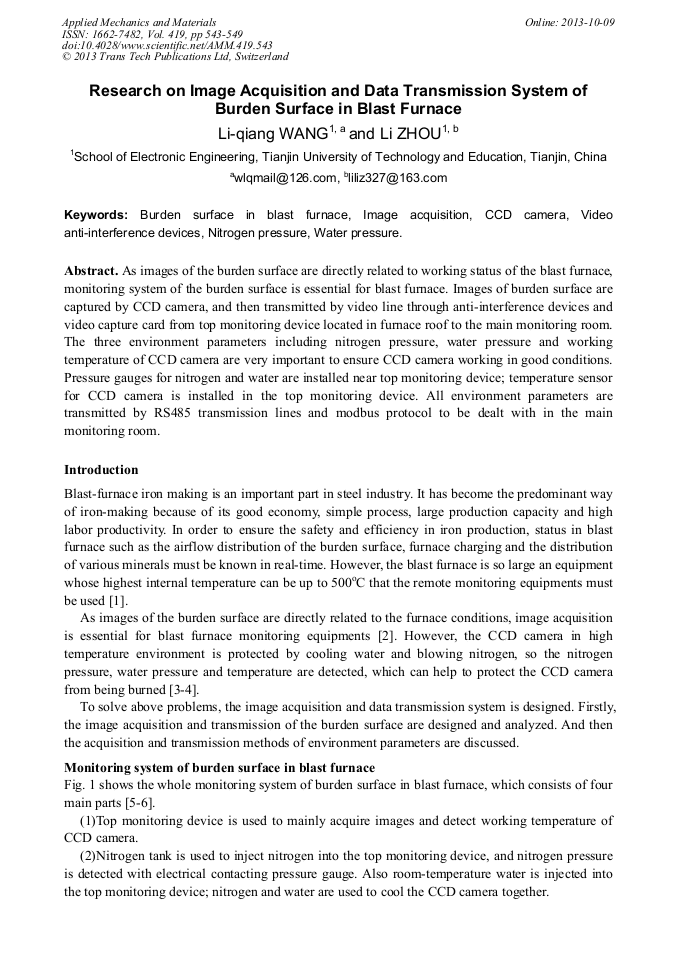

Research on Image Acquisition and Data Transmission System of Burden Surface in Blast Furnace

Abstract:

As images of the burden surface are directly related to working status of the blast furnace, monitoring system of the burden surface is essential for blast furnace. Images of burden surface are captured by CCD camera, and then transmitted by video line through anti-interference devices and video capture card from top monitoring device located in furnace roof to the main monitoring room. The three environment parameters including nitrogen pressure, water pressure and working temperature of CCD camera are very important to ensure CCD camera working in good conditions. Pressure gauges for nitrogen and water are installed near top monitoring device; temperature sensor for CCD camera is installed in the top monitoring device. All environment parameters are transmitted by RS485 transmission lines and modbus protocol to be dealt with in the main monitoring room.

• Periodical: Applied Mechanics and Materials (Volume 419)
• Pages: 543-549
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.419.543
• Online since: October 2013
• Authors: Li Qiang Wang, Li Zhou
• Keywords: Burdensurface in Blast Furnace, CCD Camera, Image Acquisition, Nitrogen Pressure, Videoanti-Interference Devices, Water Pressure

References

[1] You Wenquan, Zhao Minge. Practical blast furnace ironmaking technology[M]. Beijing: Metallurgical Industry Press, 2007: 238-333.

[2] Cheng-Peng Yeh; Shan-Wen Du; Chien-Hsiung Tsai, etc. Numerical analysis of flow and combustion behavior in tuyere and raceway of blast furnace fueled with pulverized coal and recycled top gas [J]. Energy, 2012, 42(1): 33-40.

DOI: 10.1016/j.energy.2012.03.065

[3] Xu Desheng. Semiconductor refrigeration technology and applications[M]. Second Edition. Shanghai: Shanghai Communications Press, 2002: 1-26.

[4] Lei Shao; Saxen, H. Model of Blast Furnace Hearth Drainage [J]. Steel Research International, 2012, 83(2): 197-204.

DOI: 10.1002/srin.201100215

[5] Shi Yan; Xv Sheng-lin; Yang Cheng-zhong. Study on knowledge base of thermal state of blast furnace expert system[J]. Mechanical & Electrical Engineering Magazine, 2009, 16(12): 69-72.

[6] Zhang Shifeng; Tong Dehua; Xue Hongyu, etc. Research and application of blast blower system in coke oven based on intelligent control[J]. Chinese Journal of Scientific Instrument, 2009, 30(11): 2309-2315.

[7] Zhang Sheng-fu; Wen Liang-ying; Bai Chen-guang, etc. Cold Model of Coal Gas Component Concentration Distribution in Blast Furnace Raceway[J]. Journal of Iron and Steel Research International, 2009, 16(6): 1-6.

DOI: 10.1016/s1006-706x(10)60018-0

[8] Lloyd, Redmond R.; Provis, John L.; Smeaton, Kevin J, etc. Spatial distribution of pores in fly ash-based inorganic polymer gels visualised by Wood's metal intrusion[J]. Microporous and Messoporous Mesoporous Mesoporous Materials, 2009, 126(1-2): 32-39.

DOI: 10.1016/j.micromeso.2009.05.016
