Dual-Channel Measurement System for Real-Time Ethernet

Abstract:

Real-time Ethernet (RTE) is widely used in industrial automation and high performance motion control field. Its minimum cycle time is down to less than 100μs and cycle jitter is less than 1μs, making many existing network and protocol analyzers cant meet the requirements of time accuracy in measurement system for RTE. In this paper, a low-cost and open measurement system is proposed to analyze the time characteristics (cycle time, cycle jitter, end-to-end delay, etc.) and protocol (Ethernet type, length, detailed info, etc.) of real-time Ethernet. The measurement system is consisting of a FPGA-based hardware device and a PC-based monitor station. The hardware device has dual channels that allow detecting two nodes data frame simultaneously. Ethernet data frames through channels are transmitted immediately; at the same time, all data frames will be duplicated and sent to the monitor station with precise timestamp for frame analysis. A prototype of measurement system has been realized to verify feasibility and performance. Result of the experiment shows that the maximal delay time brought in by measuring device is only 120ns and the accuracy of time stamp is down to 5ns; the parser is created in the monitor PC for analysis the time characteristics and protocols of real-time Ethernet.

You might also be interested in these eBooks

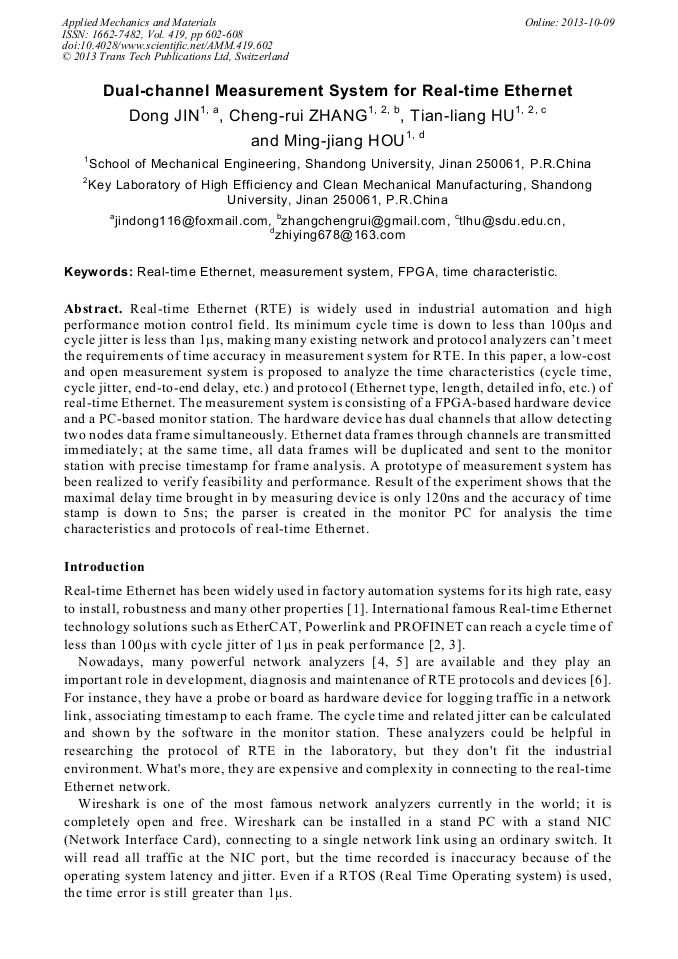

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volume 419)

Pages:

602-608

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.419.602

Citation:

Cite this paper

Online since:

October 2013

Authors:

Dong Jin, Cheng Rui Zhang, Tian Liang Hu, Ming Jiang Hou

Keywords:

FPGA, Measurement System, Real-Time Ethernet, Time Characteristic

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] J. D. Decotignie, Ethernet-based real-time and industrial communications, J. Proceedings of the IEEE. Vol. 93 (2005) 1102-1117.

DOI: 10.1109/jproc.2005.849721

Google Scholar

[2] Paolo Ferrari, Alessandra Flammini, Daniele Marioli, etc. A Distributed Instrument for Performance Analysis of Real-Time Ethernet Networks, J. IEEE transactions on industrial informatics, Vol. 4(2008) 16-25.

DOI: 10.1109/tii.2008.919016

Google Scholar

[3] A. Depari, P. Ferrari, A. Flammini, etc. A New Instrument for Real-Time Ethernet Performance Measurement, Proc. of IMTC2005, IEEE Instrumentation and Measurement Technology Conference, Vol. 3 (2005) 1803.

DOI: 10.1109/tim.2007.908341

Google Scholar

[4] J6800 Network Analyzer Familyon on http: /www. home. agilent. com.

Google Scholar

[5] Optiview Link Analyzer on http: /www. flukenetworks. com.

Google Scholar

[6] Zhe Liu, Ji Huan, Xing Hu. Multi-channel probe for industrial ethernet measurement, J. Advanced Materials Research, Vol. 503-504(2012) 1476-1479.

DOI: 10.4028/www.scientific.net/amr.503-504.1476

Google Scholar
