Thermodynamic Analysis of Interfacial Reaction between Diamond and Ni-Cr Alloys

Article Preview

Abstract:

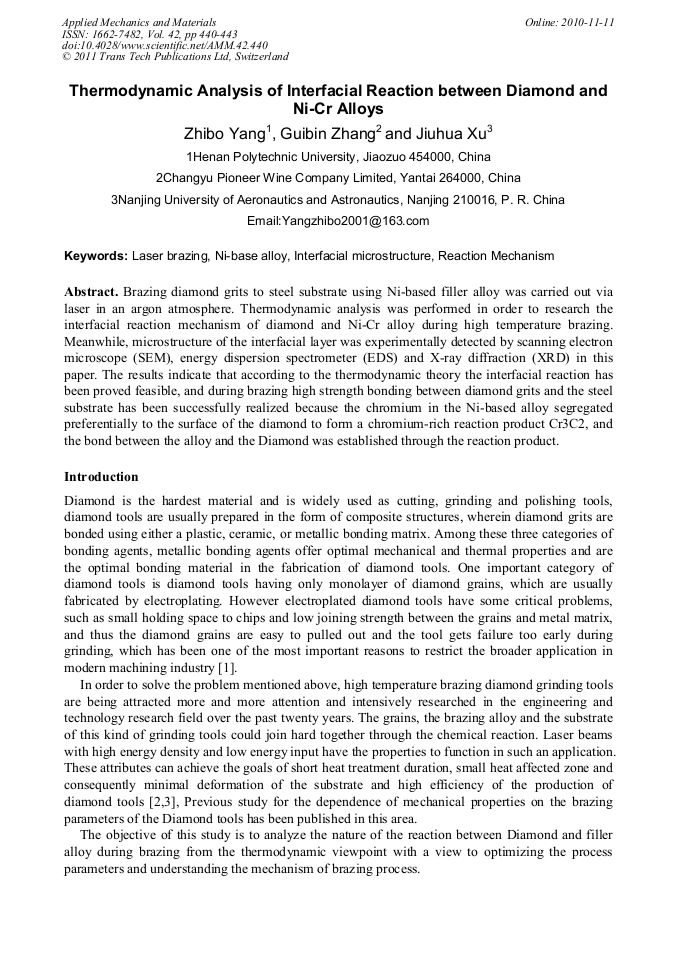

Brazing diamond grits to steel substrate using Ni-based filler alloy was carried out via laser in an argon atmosphere. Thermodynamic analysis was performed in order to research the interfacial reaction mechanism of diamond and Ni-Cr alloy during high temperature brazing. Meanwhile, microstructure of the interfacial layer was experimentally detected by scanning electron microscope (SEM), energy dispersion spectrometer (EDS) and X-ray diffraction (XRD) in this paper. The results indicate that according to the thermodynamic theory the interfacial reaction has been proved feasible, and during brazing high strength bonding between diamond grits and the steel substrate has been successfully realized because the chromium in the Ni-based alloy segregated preferentially to the surface of the diamond to form a chromium-rich reaction product Cr3C2, and the bond between the alloy and the Diamond was established through the reaction product.

You might also be interested in these eBooks

Info:

Periodical:

Pages:

440-443

Citation:

Online since:

November 2010

Export:

Price:

Permissions CCC:

Permissions PLS:

Сopyright:

© 2011 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

[1] B. XIAO, H.J. XU and Z.B. Wu: Mater. Transactions of The China Welding Institution, Vol. 22 (2001) No. 2, pp.23-26. (In Chinese).

Google Scholar

[2] ZH.B. YANG, H.J. XU and Y.C. FU: Key Engineering Materials, Vol. 359-360. (2008), pp.43-47.

Google Scholar

[3] S.F. HUANG, H.L. TSAI and S.T. LIN: Materials Chemistry and Physics, Vol. 84 (2004), p.251–258.

Google Scholar

[4] ZH.B. YANG and H.J. XU. Chinese Journal of lasers, Vol. 36 (2009), pp.3079-3083. (In Chinese).

Google Scholar

[5] Chen, Genyu, Mei, Lifang and Zhang: Bi Optics and Lasers in Engineering Vol. 48 (2010), pp.295-304.

Google Scholar

[6] J.B. LU, J.H. XU, H.J. XU and Y.C. FU: Transactions of The China Welding Institution. Vol. 25 (2004) No. 1, pp.21-23. (In Chinese).

Google Scholar
