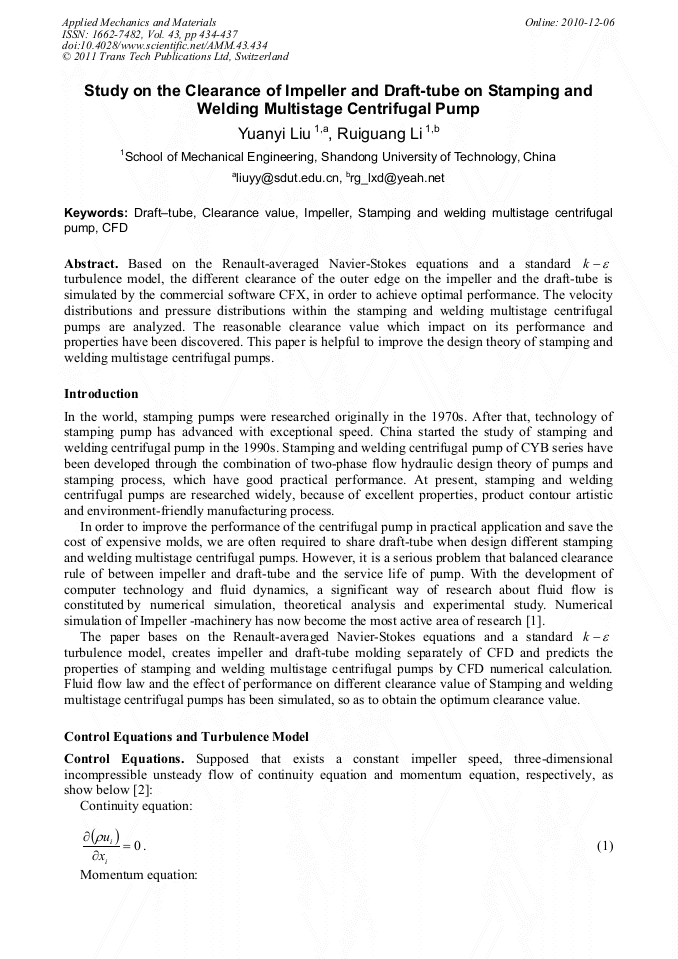

Study on the Clearance of Impeller and Draft-Tube on Stamping and Welding Multistage Centrifugal Pump

Abstract:

Based on the Renault-averaged Navier-Stokes equations and a standard turbulence model, the different clearance of the outer edge on the impeller and the draft-tube is simulated by the commercial software CFX, in order to achieve optimal performance. The velocity distributions and pressure distributions within the stamping and welding multistage centrifugal pumps are analyzed. The reasonable clearance value which impact on its performance and properties have been discovered. This paper is helpful to improve the design theory of stamping and welding multistage centrifugal pumps.

• Periodical: Applied Mechanics and Materials (Volume 43)
• Pages: 434-437
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.43.434
• Online since: December 2010
• Authors: Yuan Yi Liu, Rui Guang Li
• Keywords: Clearance Value, Computational Fluid Dynamics (CFD), Draft Tube, Impeller, Stamping Multistage Centrifugal Pump, Welding Multistage Centrifugal Pump

References

[1] S.L. Liu and Q. Zheng: Computational fluid dynamics (Harbin Institute of Technology Press, China 1998).

[2] A.L. Ren: Incompressible Viscous Flow Calculation (National Defence Industrial Press, China 2003).

[3] W.D. Zhou, Z.M. Zhao and T.S. LEE: International Journal of Rotating Machinery, Vol. 9 (2003) No. 1, p.49.

[4] Y.Y. Liu and G.Y. Wang: Transactions of the Chinese Society for Agricultural Machinery, Vol. 37 (2006) No. 11, p.60.

[5] Y.Y. Liu: Transactions of the Chinese Society for Agricultural Machinery, Vol. 36 (2005) No. 4, p.64.

[6] Q. Yao, D. Xu and L.S. Pan: Applications of Computational Fluid Mechanics, Vol. 3 (2007), p.181.
