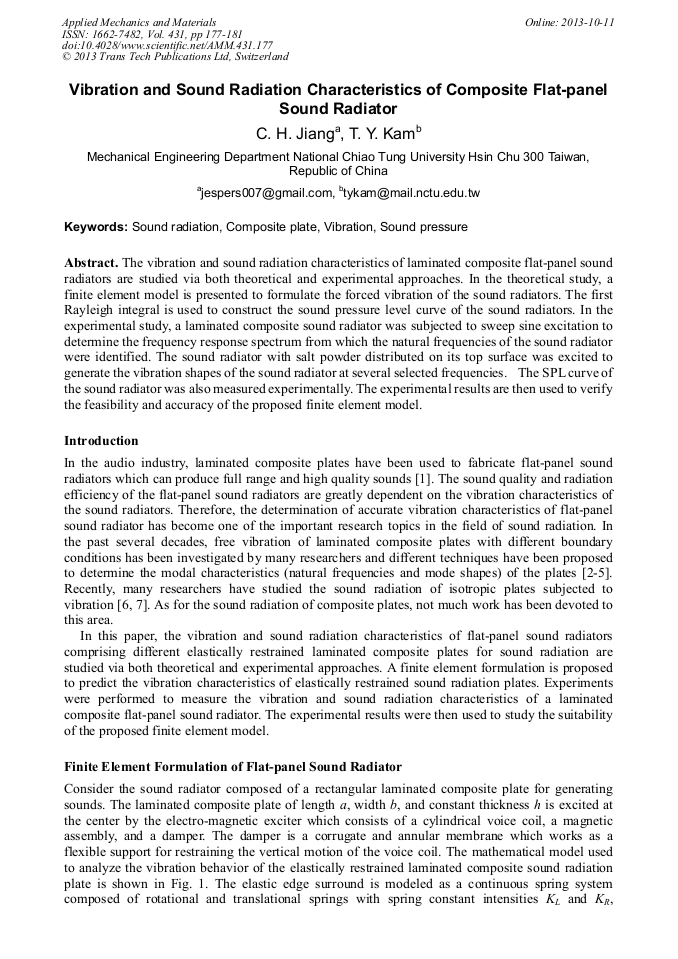

Vibration and Sound Radiation Characteristics of Composite Flat-Panel Sound Radiator

Abstract:

The vibration and sound radiation characteristics of laminated composite flat-panel sound radiators are studied via both theoretical and experimental approaches. In the theoretical study, a finite element model is presented to formulate the forced vibration of the sound radiators. The first Rayleigh integral is used to construct the sound pressure level curve of the sound radiators. In the experimental study, a laminated composite sound radiator was subjected to sweep sine excitation to determine the frequency response spectrum from which the natural frequencies of the sound radiator were identified. The sound radiator with salt powder distributed on its top surface was excited to generate the vibration shapes of the sound radiator at several selected frequencies. The SPL curve of the sound radiator was also measured experimentally. The experimental results are then used to verify the feasibility and accuracy of the proposed finite element model.

• Periodical: Applied Mechanics and Materials (Volume 431)
• Pages: 177-181
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.431.177
• Online since: October 2013
• Authors: C.H. Jiang*, T.Y. Kam
• Keywords: Composite Plate, Sound Pressure, Sound Radiation, Vibration

References

[1] T. Y. Kam, Rectangular Panel-Form Loudspeaker and Its Radiating Panel, U. S. A. Patent (2006) No. US7010143.

[2] K. C. Hung, M. K. Lim, K. N. Liew, Boundary beam characteristics orthonormal polynomials in energy approach for vibration of symmetric laminates-II: Elastically restrained boundaries, Composite Structures 26 (1993) 185-209.

DOI: 10.1016/0263-8223(93)90065-x

[3] A. Al-Obeid, J. E. Copper, A Rayleigh-ritz approach for the estimation of the dynamic properties of symmetric composite plates with general boundary conditions, Composites Science and Technology 53 (1995) 289-299.

DOI: 10.1016/0266-3538(95)00002-x

[4] L. G. Nallim, B. M. Luccioni, R. O. Grossi, Vibration of general triangular composite plates with elastically restrained edges, Twin-Walled Structures 43 (11) (2005) 1711-1745.

DOI: 10.1016/j.tws.2005.07.002

[5] W. F. Hou, T. Y. Kam, Modal characteristics of composite plates elastically restrained at different locations, Int'l Journal of Mechanical Science 51 (2009) 443-452.

DOI: 10.1016/j.ijmecsci.2009.03.013

[6] A. Putra, D. J. Thompson, Sound radiation from rectangular baffled and unbaffled plates, Applied Acoustics 71 (12) (2010) 1113-1125.

DOI: 10.1016/j.apacoust.2010.06.009

[7] N. S. Lomas, S. I. Hayek, Vibration and acoustic radiation of elastically supported rectangular plates, Journal of Sound and Vibration 52 (1) (1977) 1-25.

DOI: 10.1016/0022-460x(77)90385-6

[8] J. N. Reddy, A Simple Higher Order Theory for Laminated Composite Plates, Journal of Applied Mechanics 51 (4) (1984) 745–752.

DOI: 10.1115/1.3167719

[9] ANSYS 12. 1, ANSYS, Inc., USA, (2010).
