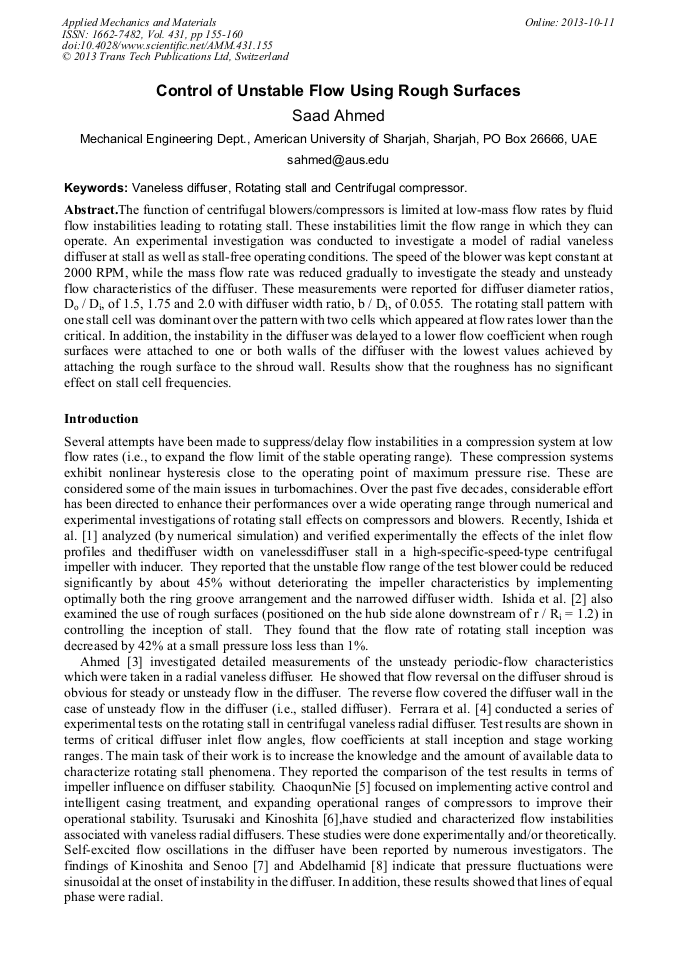

Control of Unstable Flow Using Rough Surfaces

Abstract:

The function of centrifugal blowers/compressors is limited at low-mass flow rates by fluid flow instabilities leading to rotating stall. These instabilities limit the flow range in which they can operate. An experimental investigation was conducted to investigate a model of radial vaneless diffuser at stall as well as stall-free operating conditions. The speed of the blower was kept constant at 2000 RPM, while the mass flow rate was reduced gradually to investigate the steady and unsteady flow characteristics of the diffuser. These measurements were reported for diffuser diameter ratios, D_o / D_i, of 1.5, 1.75 and 2.0 with diffuser width ratio, b / D_i, of 0.055. The rotating stall pattern with one stall cell was dominant over the pattern with two cells which appeared at flow rates lower than the critical. In addition, the instability in the diffuser was delayed to a lower flow coefficient when rough surfaces were attached to one or both walls of the diffuser with the lowest values achieved by attaching the rough surface to the shroud wall. Results show that the roughness has no significant effect on stall cell frequencies.

• Periodical: Applied Mechanics and Materials (Volume 431)
• Pages: 155-160
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.431.155
• Online since: October 2013
• Authors: Saad Ahmed*
• Keywords: Centrifugal Compressor, Rotating Stall, Vaneless Diffuser

References

[1] M. Ishida, T. Surana, H. Ueki and D. Sakaguchi: Suppression of Unstable Flow at Small Flow Rates in a Centrifugal Blower by Controlling Tip Leakage Flow and Reverse Flow. ASME Journal of Turbomachines Vol. 127(1) (2005), pp.76-83.

DOI: 10.1115/1.1811092

[2] M. Ishida, D. Sakaguchi and H. Ueki: Suppression of Rotating Stall by Wall Roughness Control in Vaneless Diffusers of Centrifugal Blowers. ASME Journal of Turbomachines Vol. 123(1)(2001), pp.64-72.

DOI: 10.1115/1.1328084

[3] S. A. Ahmed: Effects of Diffuser Geometry on Stall Characteristics. International Review of Mechanical EngineeringVol 4, n. 4(2010), pp.417-421.

[4] G. Ferrara, L. Ferrara and L. Baldassarre: Rotating Stall in Centrifugal Compressor Vaneless Diffuser Part IV: Impeller Influence on Diffuser Stability. Proceedings of ASME Turbo Expo, June 16-19, 2003, Atlanta, Georgia, USA, (2003).

DOI: 10.1115/gt2003-38394

[5] ChaoqunNie, An Experimental Investigation on Different Radial Loading Distribution and Pattern of Stall Inception in a Single-Stage Low-Speed Radial Compressor, Proceedings of ASME Turbo Expo, June 16-19, 2003, Atlanta, Georgia, USA, (2003).

DOI: 10.1115/gt2003-38090

[6] H. Tsurusaki and T. Kinoshita: Flow Control of Rotating Stall in a Radial Vaneless Diffuser. ASME Journal of Fluids Engineering Vol. 123, 2 (2001), pp.281-286.

DOI: 10.1115/1.1351174

[7] Y. Kinoshita and Y. Senoo: Rotating stall induced in vaneless diffusers of very low specific speed centrifugal blowers. ASME Journal of Engineering for Gas Turbine and Power Vol. 107(1985), pp.514-521.

DOI: 10.1115/1.3239761

[8] A.N. Abdelhamid: Control of self excited flow oscillations in vaneless diffuser of centrifugal compressor systems. Canadian Aeronautics and Space Journal Vol. 29 (1983), pp.336-345.

DOI: 10.1115/82-gt-188

[9] S.A. Ahmed: Characteristics of Unsteady-Flow Phenomenon in a Channel Radial Diffuser. Canadian Aeronautics and Space Journal Vol. 48 No. 3 (2002).

DOI: 10.5589/q02-022
