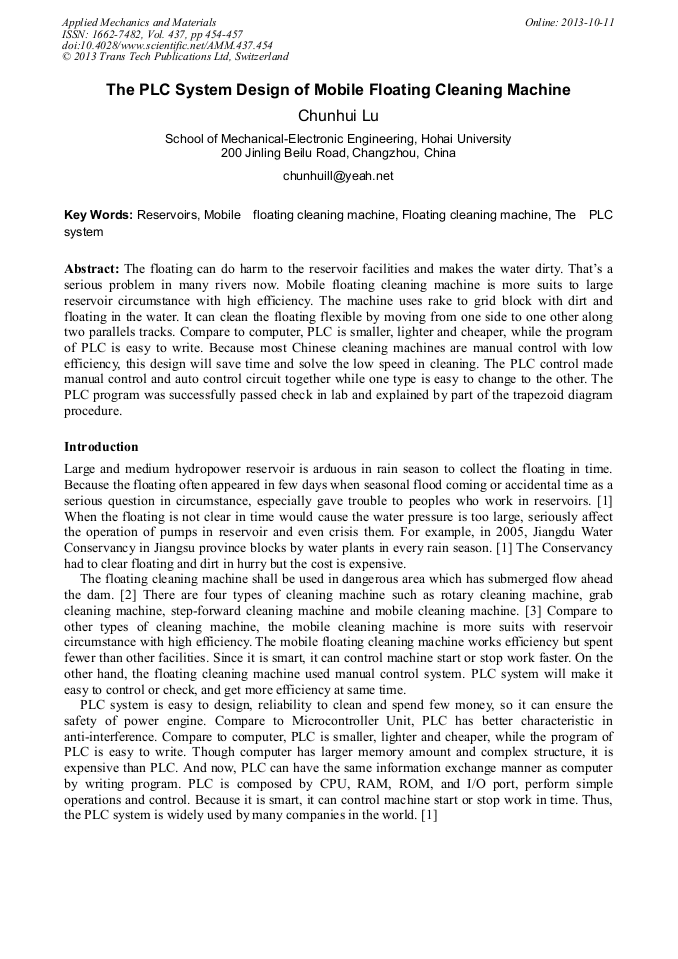

The PLC System Design of Mobile Floating Cleaning Machine

Abstract:

The floating can do harm to the reservoir facilities and makes the water dirty. Thats a serious problem in many rivers now. Mobile floating cleaning machine is more suits to large reservoir circumstance with high efficiency. The machine uses rake to grid block with dirt and floating in the water. It can clean the floating flexible by moving from one side to one other along two parallels tracks. Compare to computer, PLC is smaller, lighter and cheaper, while the program of PLC is easy to write. Because most Chinese cleaning machines are manual control with low efficiency, this design will save time and solve the low speed in cleaning. The PLC control made manual control and auto control circuit together while one type is easy to change to the other. The PLC program was successfully passed check in lab and explained by part of the trapezoid diagram procedure.

• Periodical: Applied Mechanics and Materials (Volume 437)
• Pages: 454-457
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.437.454
• Online since: October 2013
• Authors: Chun Hui Lu*
• Keywords: Floating Cleaning Machine, Mobile Floating Cleaning Machine, PLC System, Reservoirs

References

[1] Chunhui Lu, The PLC System Design of the Floating Cleaning Machine, J. Applied　Mechanics and Materials，V 157-158, pp.527-530，(2012).

DOI: 10.4028/www.scientific.net/amm.157-158.527

[2] Jiwen He Edited, Sensors and Applied Electric Circuit Design, Publishing House of Chinese Science, China, 2002，pp.82-89 (In Chinese).

[3] Chunhui Lu, Overall Design of the Floating Selecting Machine in Reservoir.J. Hoisting and Conveying Machinary, 14－17，2007. 3.

[4] Haiming Wei Edited, 500 Examples of Applied Electric Circuit, Publishing House of Chinese Chemistry and Industry, China, 1996, p.210 (In Chinese).

[5] Jianqiu Zhang etc. Edited, PLC Theory and Applied Examples, Publishing House of Chinese Machinery and Industry, China, 2003, p.12 (In Chinese).

[6] Xicai He Edited, Sensors and Its Applied Examples, Publishing House of Chinese Machinery and Industry, China, 2004, pp.79-106 (In Chinese).

[7] Gousheng Shi, Electrical Equipment and PLC Technology, Publishing House of Chinese Chemistry and Industry, China, 2004, p.16 (In Chinese).

[8] Chunhui Lu, Design of the Floating Selecting Machine, J. Applied　Mechanics and Materials, Volumes 105-107，3-vol-set 10, (2011).

[9] Chunhui Lu, The System Design of the Floating Cleaning Machine, J. Machine of Water and Electric Power, 80－81，2006. 11.
