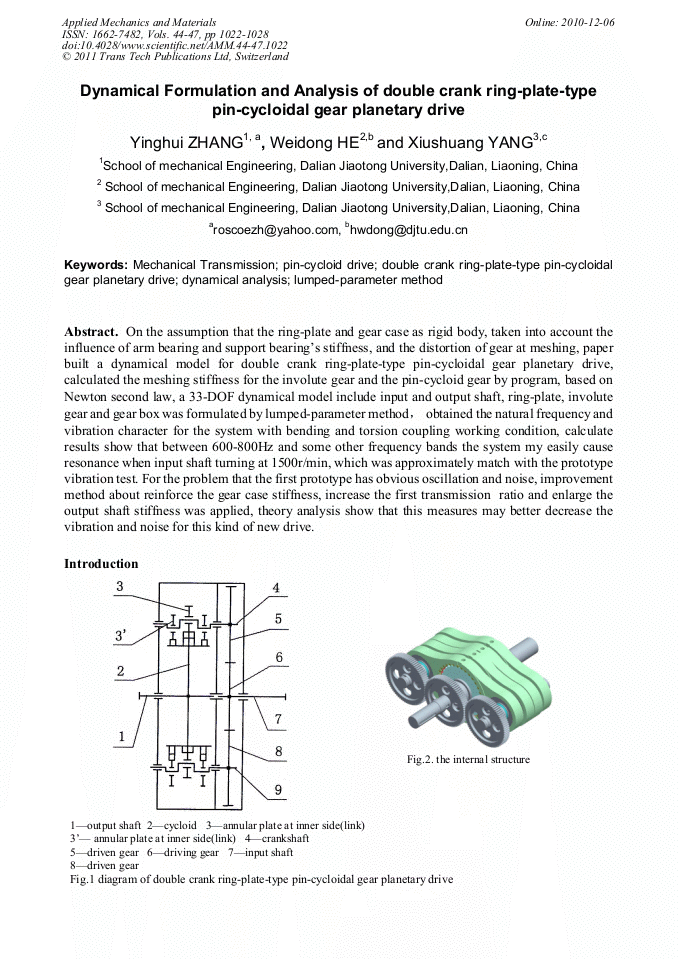

Dynamical Formulation and Analysis of Double Crank Ring-Plate-Type Pin-Cycloidal Gear Planetary Drive

Abstract:

On the assumption that the ring-plate and gear case as rigid body, taken into account the influence of arm bearing and support bearing’s stiffness, and the distortion of gear at meshing, paper built a dynamical model for double crank ring-plate-type pin-cycloidal gear planetary drive, calculated the meshing stiffness for the involute gear and the pin-cycloid gear by program, based on Newton second law, a 33-DOF dynamical model include input and output shaft, ring-plate, involute gear and gear box was formulated by lumped-parameter method， obtained the natural frequency and vibration character for the system with bending and torsion coupling working condition, calculate results show that between 600-800Hz and some other frequency bands the system my easily cause resonance when input shaft turning at 1500r/min, which was approximately match with the prototype vibration test. For the problem that the first prototype has obvious oscillation and noise, improvement method about reinforce the gear case stiffness, increase the first transmission ratio and enlarge the output shaft stiffness was applied, theory analysis show that this measures may better decrease the vibration and noise for this kind of new drive.

• Periodical: Applied Mechanics and Materials (Volumes 44-47)
• Pages: 1022-1028
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.44-47.1022
• Online since: December 2010
• Authors: Ying Hui Zhang, Wei Dong He, Xiu Shuang Yang
• Keywords: Double Crank Ring-Plate-Type pin-Cycloidal Gear Planetary Drive, Dynamical Analysis, Lumped-Parameter Method, Mechanical Transmission, Pin-Cycloid Drive

References

[1] Weidong He, Xin LI, Lixing LI: Force Analysis on the High-load Capacity Double Crank Ring-Plate-Type Cycloid Drivce[J], ASME Journal of Mechanical Design, 2000, 36(5): 84-88.

[2] Weidong He, Lixing LI, Linda C. Schmidt: A New Cycloid Drive With High-Load Capacity and High Efficiency. ASME Journal of Mechanical Design, 2004, 126(3): 683-686.

DOI: 10.1115/1.1758254

[3] Gang WANG, Dawei ZHANG, and Tian HUANG, A study on the method of dynamic modeling for RV reducer, machine design, TianJin, 1999(3)： 19-22.

[4] Gang WANG, Liming ZHAO, and Mai WANG, Research and Analysis on dynamics Formulation of RV Reducer, China Mechanical Engineering, 2002, 13 (19)： pp.1652-1655.

[5] Da Wei ZHANG, Gang WANG, Dynamic Formulation of RV reducer and Analysis of structural Parameters, Chinese Journal OF Mechanical Engineering, 2001, 37(1): 1, pp.69-74.

DOI: 10.3901/jme.2001.01.069

[6] JiYan LIU, Tao SUN, and Hou Jun QI, Research on Natural Frequency and Dynamic Model of RV Reducer, China Mechanical Engineering, 1999, (4), 381-386.

[7] XiHai YAN, Ce ZHANG, and Yun Ning LI, Natural Frequency of Torsional Vibration of Rotary Vector Reducer and Its Influencing Factors, Mechanical Science and Technology, 2004. vol. 23(8), pp.991-994.

[8] YingHui ZHANG, JunJun XIAO, WeiDong HE, Dynamical Formulation and Analysis of RV Reducer，, ICEC2009, pp.201-204.

[9] YingHui ZHANG, WeiDong HE , JunJun XIAO, Dynamical model of RV reducer and key influence of stiffness to the nature character, ICIC2010, pp.192-195.

DOI: 10.1109/icic.2010.55

[10] YingHui ZHANG, JunJun XIAO , WeiDong HE , Meshing stiffness calculation of pin-cycloid on robot RV reducer, Journal of Dalian Jiaotong University, 2010（2）, pp.20-23.
