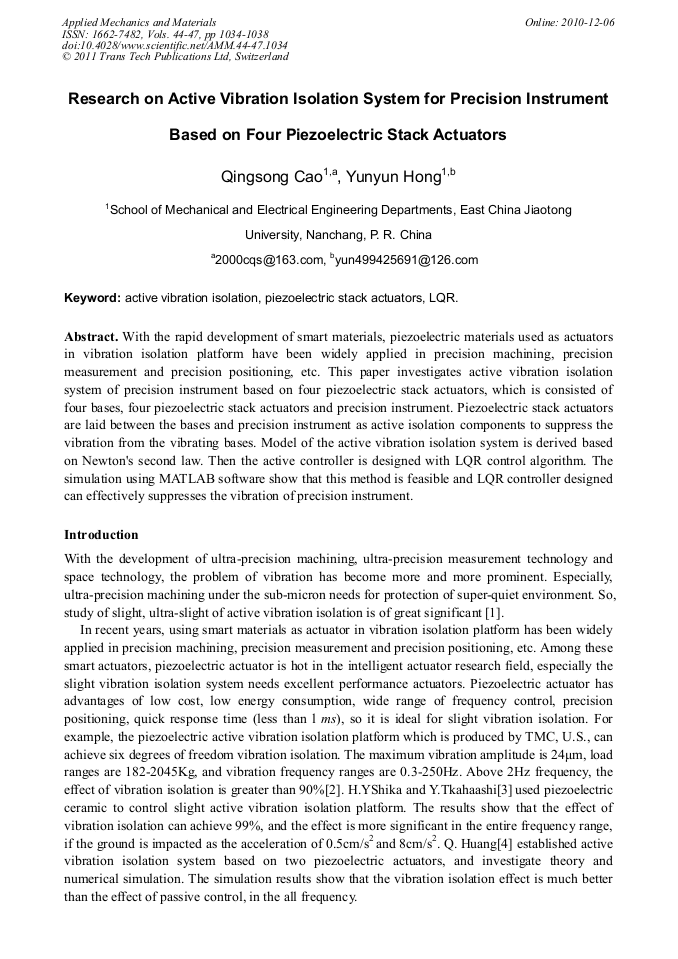

Research on Active Vibration Isolation System for Precision Instrument Based on Four Piezoelectric Stack Actuators

Abstract:

With the rapid development of smart materials, piezoelectric materials used as actuators in vibration isolation platform have been widely applied in precision machining, precision measurement and precision positioning, etc. This paper investigates active vibration isolation system of precision instrument based on four piezoelectric stack actuators, which is consisted of four bases, four piezoelectric stack actuators and precision instrument. Piezoelectric stack actuators are laid between the bases and precision instrument as active isolation components to suppress the vibration from the vibrating bases. Model of the active vibration isolation system is derived based on Newton's second law. Then the active controller is designed with LQR control algorithm. The simulation using MATLAB software show that this method is feasible and LQR controller designed can effectively suppresses the vibration of precision instrument.

• Periodical: Applied Mechanics and Materials (Volumes 44-47)
• Pages: 1034-1038
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.44-47.1034
• Online since: December 2010
• Authors: Qing Song Cao, Yun Yun Hong
• Keywords: Active Vibration Isolation, LQR, Piezoelectric Stack Actuator

References

[1] C. H Zhang, B. X Tang: Journal of Hohai University Vol. 16(2002), pp.1-5, in Chinese.

[2] Schubert. U.S. Patent No. 5, 660, 255, (1997).

[3] Yoshika H, Takahashi Y, Katayama K, etc.: Journal of Vibration and Acoustics Vol. 123(2001), pp.269-275.

[4] Q. Huang: Study of Active Vibration Isolation System Theory and Simulation Based on Piezoelectric Actuator, Master Thesis of Northwestern Polytechnic University, (2006).

[5] J.C. Wang, S. Dong, D. Li: Journal of Vibration and Shock Vol. 19(2000), pp.54-57.

[6] L.P. Chen: Manufacture Information Engineering of China Vol. 4 (2005), pp.53-55.

[7] G.P. Li, Y.D. Wei, Z.C. Chen: Acta Armamentarii Vol. 25(2004), pp.462-466.

[8] S. Li, Research on System of Active Vibration Isolation Based on Piezoelectric Smart Structure, Master Thesis of Northwestern Polytechnic University, (2004).

[9] Y.F. Sun, Study of Three-axis Active Vibration Isolation Technology Based on Piezoelectric Smart Structure, PhD thesis of Nanjing University of Aeronautics and Astronautics, (2004).
