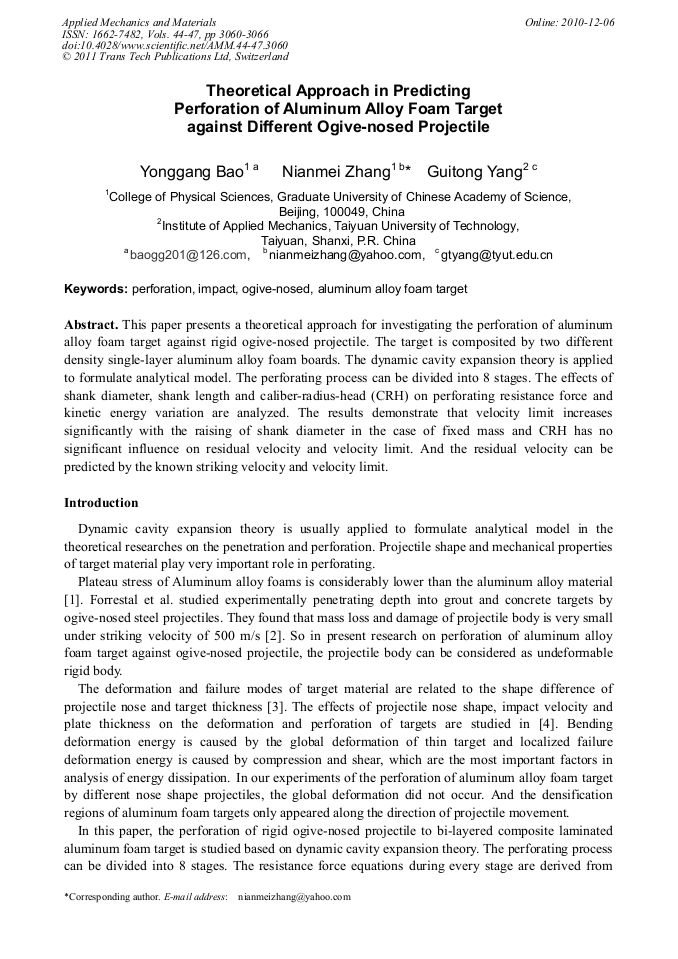

Theoretical Approach in Predicting Perforation of Aluminum Alloy Foam Target against Different Ogive-Nosed Projectile

Abstract:

This paper presents a theoretical approach for investigating the perforation of aluminum alloy foam target against rigid ogive-nosed projectile. The target is composited by two different density single-layer aluminum alloy foam boards. The dynamic cavity expansion theory is applied to formulate analytical model. The perforating process can be divided into 8 stages. The effects of shank diameter, shank length and caliber-radius-head (CRH) on perforating resistance force and kinetic energy variation are analyzed. The results demonstrate that velocity limit increases significantly with the raising of shank diameter in the case of fixed mass and CRH has no significant influence on residual velocity and velocity limit. And the residual velocity can be predicted by the known striking velocity and velocity limit.

• Periodical: Applied Mechanics and Materials (Volumes 44-47)
• Pages: 3060-3066
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.44-47.3060
• Online since: December 2010
• Authors: Yong Gang Bao, Nian Mei Zhang, Gui Tong Yang
• Keywords: Aluminum Alloy Foam Target, Impact, Ogive-Nosed, Perforation

References

[1] L. J. Gibson, M. F. Ashby. Cellular Solids: Structure and Properties. Cambridge: Cambridge University Press(1999).

[2] M. J. Forrestal, D. J. Frew, et al. Penetration of grout and concrete targets with ogive-nose steel projectiles. International Journal of Impact Engineering Vol. 18(5) (1996), pp.465-476.

DOI: 10.1016/0734-743x(95)00048-f

[3] S. Dey, T. Børvik, et al. On the ballistic resistance of double-layered steel plates: An experimental and numerical investigation. International Journal of Solids and Structures Vol. 44(20) (2007), pp.6701-6723.

DOI: 10.1016/j.ijsolstr.2007.03.005

[4] N. K. Gupta, M. A. Iqbal, et al. Effect of projectile nose shape, impact velocity and target thickness on deformation behavior of aluminum plates. International Journal of Solids and Structures Vol. 44(10) (2007), pp.3411-3439.

DOI: 10.1016/j.ijsolstr.2006.09.034

[5] Xiaopeng YAN, Nianmei ZHANG, et al. Theoretical Study on the Penetration of Aluminium Foam by Ogival-Nosed Projectiles. Proceedings of the 3rd International Conference on Mechanical Engineering and Mechanics, October 21−23, (2009), pp.1302-1307.

[6] T. Børvik, M. Langseth, et al. Perforation of 12 mm thick steel plates by 20 mm diameter projectiles with flat, hemispherical and conical noses: Part I: Experimental study. International Journal of Impact Engineering Vol. 27(1) (2002), pp.19-35.

DOI: 10.1016/s0734-743x(01)00034-3
