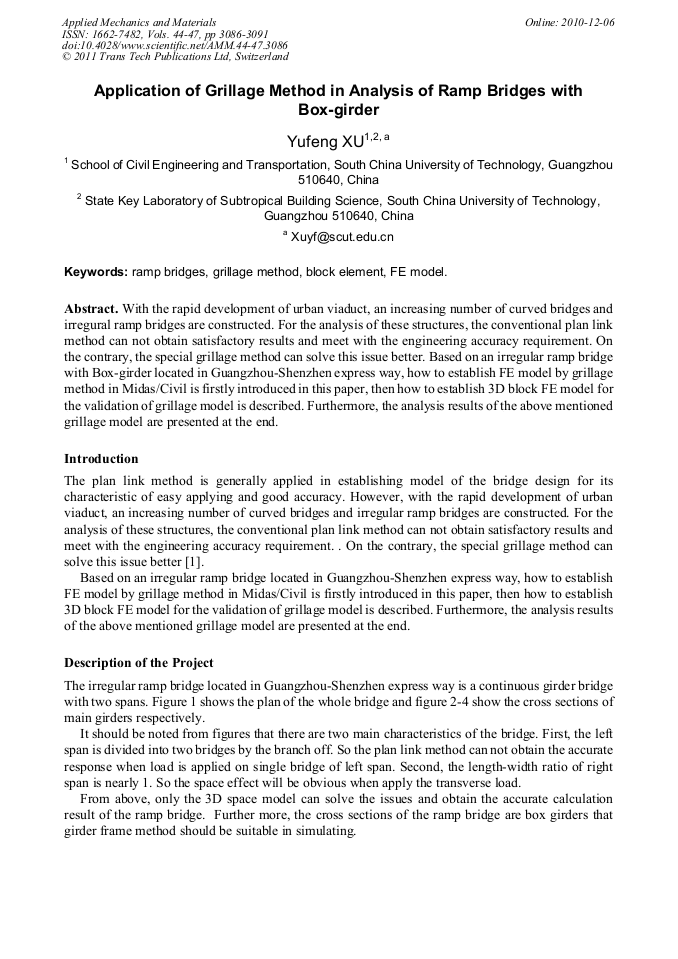

Application of Grillage Method in Analysis of Ramp Bridges with Box-Girder

Abstract:

With the rapid development of urban viaduct, an increasing number of curved bridges and irregural ramp bridges are constructed. For the analysis of these structures, the conventional plan link method can not obtain satisfactory results and meet with the engineering accuracy requirement. On the contrary, the special grillage method can solve this issue better. Based on an irregular ramp bridge with Box-girder located in Guangzhou-Shenzhen express way, how to establish FE model by grillage method in Midas/Civil is firstly introduced in this paper, then how to establish 3D block FE model for the validation of grillage model is described. Furthermore, the analysis results of the above mentioned grillage model are presented at the end.

• Periodical: Applied Mechanics and Materials (Volumes 44-47)
• Pages: 3086-3091
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.44-47.3086
• Online since: December 2010
• Authors: Yu Feng Xu
• Keywords: Block Element, FE-Model, Grillage Method, Ramp Bridge

References

[1] Muqing Liu. Design of point bearing deformed bend slab bridge on ring road of Beijing Xizhimen Inside [J]. Urban roads bridges & flood control, 2005; (2): 3-4.

[2] E. C Hambly Bridge Deck Behaviour[M]. China Communications Press, 1982. 93-97.

[3] Kaifeng Zheng, Ning Cheng, Xiaoqiao Zhang. The simulate technology research of bridge structure [J]. Bridge construction, 1998; (2): 10-15.

[4] Research center of urban construction, South China University of Technology, Guangzhou Shenzhen express way design and calculation check book, (2007).
