Generation Method for Specification Surface Model of Flatness

Abstract:

Article Preview

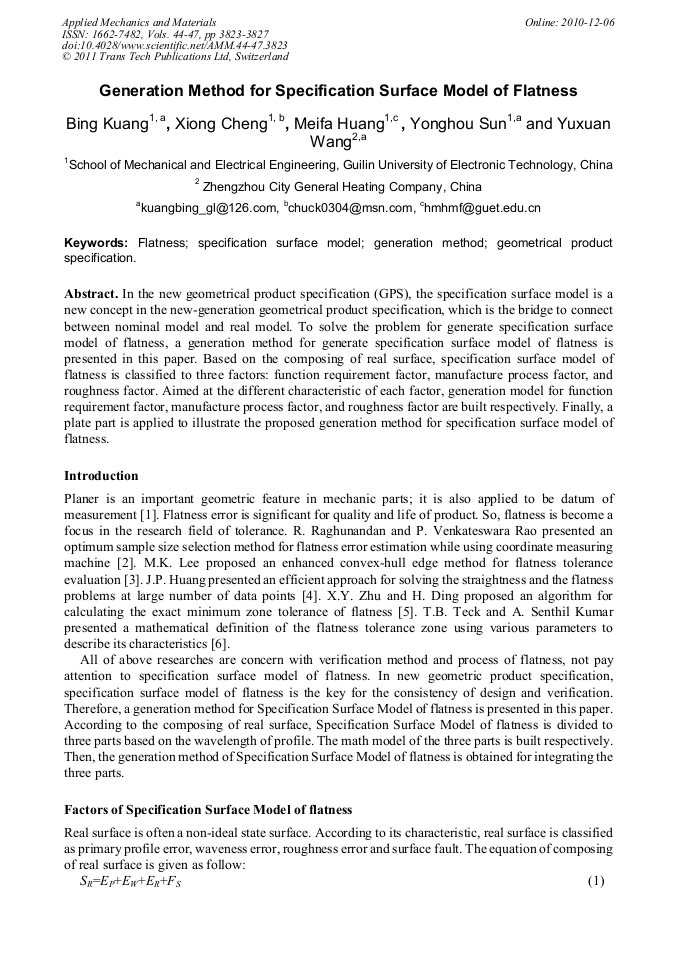

In the new geometrical product specification (GPS), the specification surface model is a new concept in the new-generation geometrical product specification, which is the bridge to connect between nominal model and real model. To solve the problem for generate specification surface model of flatness, a generation method for generate specification surface model of flatness is presented in this paper. Based on the composing of real surface, specification surface model of flatness is classified to three factors: function requirement factor, manufacture process factor, and roughness factor. Aimed at the different characteristic of each factor, generation model for function requirement factor, manufacture process factor, and roughness factor are built respectively. Finally, a plate part is applied to illustrate the proposed generation method for specification surface model of flatness.
