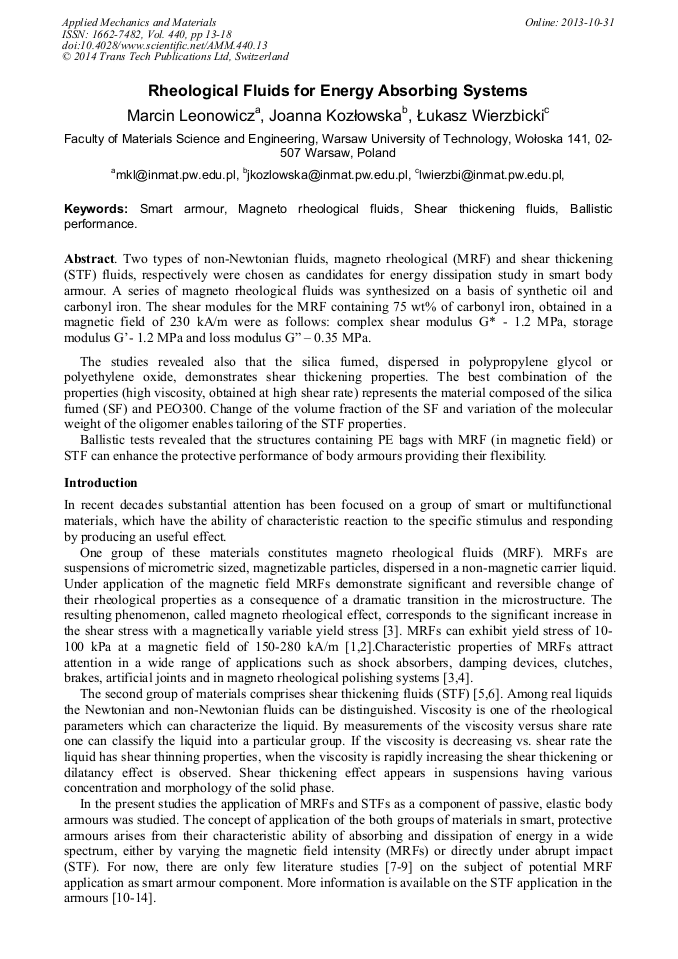

Rheological Fluids for Energy Absorbing Systems

Abstract:

Two types of non-Newtonian fluids, magneto rheological (MRF) and shear thickening (STF) fluids, respectively were chosen as candidates for energy dissipation study in smart body armour. A series of magneto rheological fluids was synthesized on a basis of synthetic oil and carbonyl iron. The shear modules for the MRF containing 75 wt% of carbonyl iron, obtained in a magnetic field of 230 kA/m were as follows: complex shear modulus G* - 1.2 MPa, storage modulus G-1.2 MPa and loss modulus G 0.35 MPa. The studies revealed also that the silica fumed, dispersed in polypropylene glycol or polyethylene oxide, demonstrates shear thickening properties. The best combination of the properties (high viscosity, obtained at high shear rate) represents the material composed of the silica fumed (SF) and PEO300. Change of the volume fraction of the SF and variation of the molecular weight of the oligomer enables tailoring of the STF properties. Ballistic tests revealed that the structures containing PE bags with MRF (in magnetic field) or STF can enhance the protective performance of body armours providing their flexibility.

• Periodical: Applied Mechanics and Materials (Volume 440)
• Pages: 13-18
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.440.13
• Online since: October 2013
• Authors: Marcin Leonowicz*, Joanna Kozłowska, Łukasz Wierzbicki
• Keywords: Ballistic Performance, Magneto Rheological Fluids, Shear Thickening Fluids, Smart Armour

References

[1] C. Kormann, E. Schwab, M. Laun, Magnetorheological fluids, U.S. Patent 5505880 (1996).

[2] J. Park, B. Doo Chin, and O. O. Park, Rheological Properties and Stabilization of Magnetorheological Fluids in a Water-in-Oil Emulsion, J. Colloid. Interf. Sci Vol. 240 (2001) p.349.

DOI: 10.1006/jcis.2001.7622

[3] G. Olabi and A. Grunwald, Design and Application of Magneto-Rheological Fluid, Mater. Des. Vol. 28 (2007) p.2658.

DOI: 10.1016/j.matdes.2006.10.009

[4] M. Kciuk, R. Turczyn, Properties and applications of magnetorheological fluids, J. Achiev. Mater. Manuf. Vol. 18 (1-2) (2006) p.127.

[5] Qui-me W., Jian-ming R., Bai-yun H., Zhong-cheng Z., Jian-peng Z., Rheologcal behavior of fumed silica suspension in polyethylene glycol, Journal of Central South University of Technology, Vol 13, Issue 1, (2006).

[6] M. Kamibayashi, H. Ogura , Y. Otsubo, Shear-thickening flow of Colloid and Interface, Science Vol. 321, (2008).

DOI: 10.1016/j.jcis.2008.02.022

[7] S. S Deshmukh and G. H McKinley, Adaptive energy-absorbing material using field-responsive fluid-impregnated cellular solids, Smart Mater. Struct., Vol. 16 (2007) p.106.

DOI: 10.1088/0964-1726/16/1/013

[8] K. J. Son, E. P Fahrenthold, Evaluation of magnetorheological fluid augmented fabric as a fragment barrier material, Smart Mater. Struct. Vol. 21 (2012) p.1.

DOI: 10.1088/0964-1726/21/7/075012

[9] K.J. Son Impact dynamics of magnetorheological fluid saturated Kevlar and magnetostrictive composite coated Kevlar, Dissertation for Doctor of Philosophy, The University of Texas at Austin, May (2009).

[10] Y.S. Lee, E.D. Wetzel, N.J. Wagner, The ballistic impact characteristics of Kevlar woven fabrics impregnated with a colloidal shear thickening fluid, J. Mater. Sci. Vol. 38 (2003) p.2825.

[11] E.D. Wetzel, Y.S. Lee, R.G. Egres, K.M. Kirkwood, J.E. Kirkwood, N.J. Wagner, The effect of rheological parameters on the ballistic properties of shear thickening fluid – Kevlar composites, Numiform 2004, June 13-17 2004, Columbus OH.

DOI: 10.1063/1.1766538

[12] J.M. Houghton, B.A. Schiffman, D.P. Kalman, E.D. Wetzel, N.J. Wagner, Hypodermic needle puncture of shear thickening fluid – treated fabrics, 3-7 June 2007, Baltimore, MD.

[13] D.P. Kalman, J.B. Schein, J.M. Houghton, C.H.N. Laufer, E.D. Wetzel, N.J. Wagner, Polymer dispersion based shear thickening fluid – fabrics for protective applications, 3-7 June 2007, Baltimore, MD.

[14] Y.S. Lee, E.D. Wetzel, N.J. Wagner, R.G. Egres Jr, N.J. Wagner, Advanced body armour utilizing shear thickening fluids, 23Army Science Conference, December 2-5, Orlando Fl, http: /www. ccm. udel. edu/STF/images1. html.
