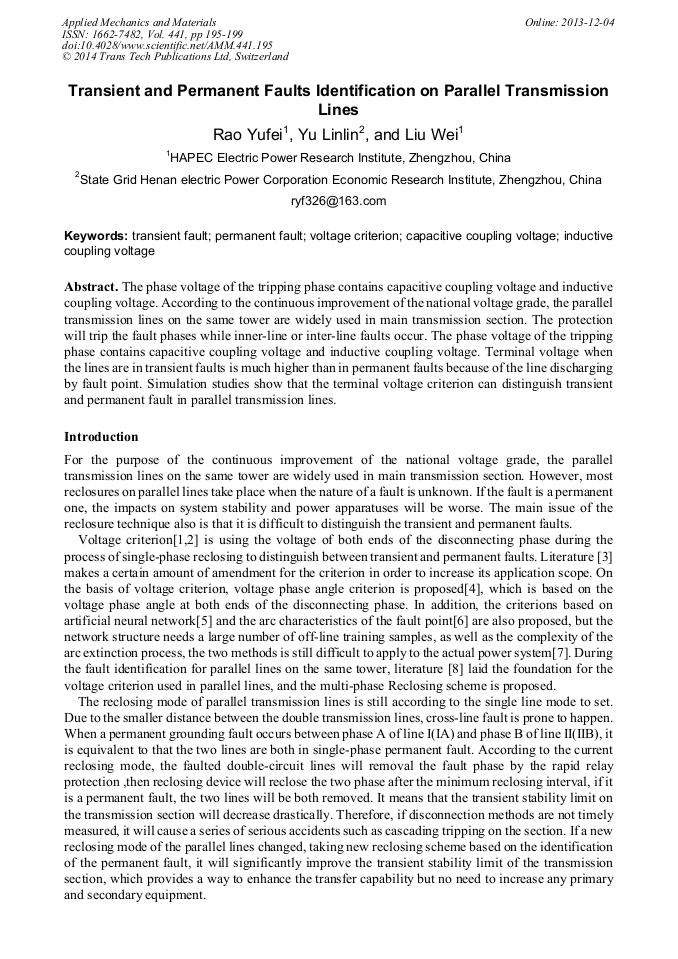

Transient and Permanent Faults Identification on Parallel Transmission Lines

Abstract:

The phase voltage of the tripping phase contains capacitive coupling voltage and inductive coupling voltage. According to the continuous improvement of the national voltage grade, the parallel transmission lines on the same tower are widely used in main transmission section. The protection will trip the fault phases while inner-line or inter-line faults occur. The phase voltage of the tripping phase contains capacitive coupling voltage and inductive coupling voltage. Terminal voltage when the lines are in transient faults is much higher than in permanent faults because of the line discharging by fault point. Simulation studies show that the terminal voltage criterion can distinguish transient and permanent fault in parallel transmission lines.

• Periodical: Applied Mechanics and Materials (Volume 441)
• Pages: 195-199
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.441.195
• Online since: December 2013
• Authors: Yu Fei Rao, Lin Lin Yu, Wei Liu
• Keywords: Capacitive Coupling Voltage, Inductive Coupling Voltage, Permanent Fault, Transient Fault, Voltage Criterion

References

[1] Y. Ge, Method of Distinguishing Between Instant and Permanent Fault During Single-Phase Reclosing [J]. Journal of Xi'an Jiaotong University. 1984, 18(2): 23-32.

[2] Y. Ge, F. Sui, Y. Xiao. Prediction methods for preventing single-phase reclosing on permanent fault. IEEE Trans on Power Delivery, 1989, 4(1): 114-121.

DOI: 10.1109/61.19197

[3] Y. Fan, W. Shi. Modification of voltage criterion in the single-pole automatic reclosing of transmission lines. Automation of Electric Power Systems. 2000, 24(6): 44-47.

[4] B. Li, Y. Li, etal. Study on phase criterion for single-pole adaptive reclosure. Automation of Electric Power Systems. 2003, 27(22): 41-44.

[5] Fitton.D. S, Dunn.R. W, Aggarwal.R. K, etal. Design and implementation of an adaptive single pole auto re-closure technique for transmission lines using artificial neural networks. IEEE Trans on Power Delivery, 1996, 11(2): 748-756.

DOI: 10.1109/61.489331

[6] Djuric.M. B, Terzija V.V. A new approach to the arcing faults detection for fast auto reclosure in transmission systems. IEEE Trans on Power Delivery, 1995, 10(4): 1793-1798.

DOI: 10.1109/61.473378

[7] J. Suonan, G. Song, W. Shao, etal. Identification of Permanent Faults Based on Differential Current Protection for Transmission Lines with Two Shunt Reactors. Automation of Electric Power Systems. 2007, 31(20): 56-60.

DOI: 10.1109/apap.2011.6180404

[8] Y. Zheng, Z. Huang, Z. Zhang, etal. Study on Self-adaptive auto-reclosing for Parallel Transmission Lines. Automation of Electric Power Systems. 2004, 28(22): 58-62.

[9] B. Zhang; M. Lei; Y. Yuan. Optimizing the Reclosing Time to Improve the Transmission Capacity of Power Network. Relay. 1998, 26(1): 17-21.
