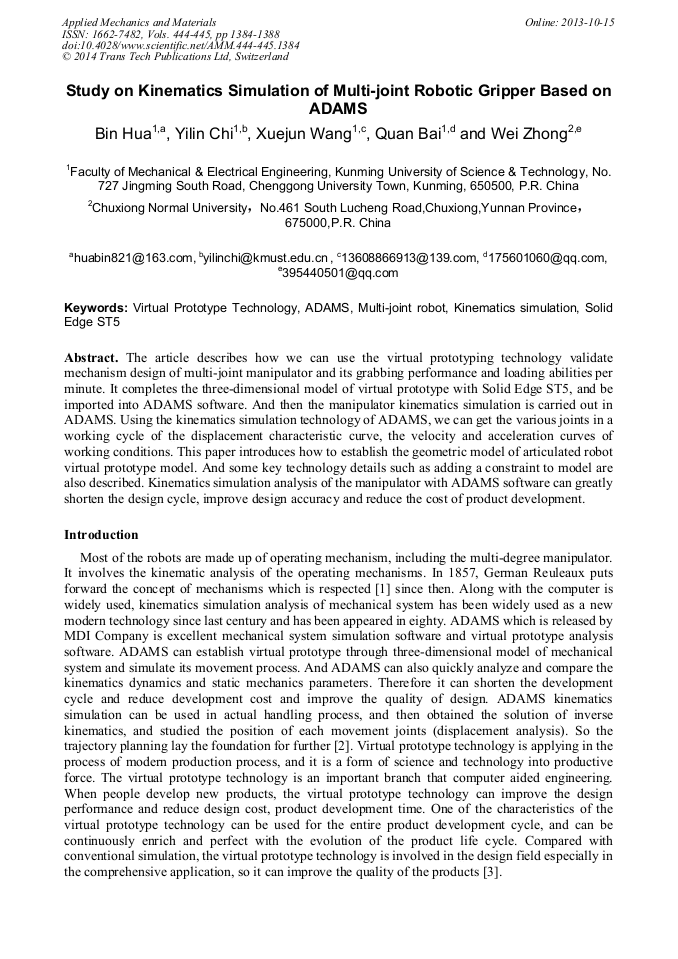

Study on Kinematics Simulation of Multi-Joint Robotic Gripper Based on ADAMS

Abstract:

The article describes how we can use the virtual prototyping technology validate mechanism design of multi-joint manipulator and its grabbing performance and loading abilities per minute. It completes the three-dimensional model of virtual prototype with Solid Edge ST5, and be imported into ADAMS software. And then the manipulator kinematics simulation is carried out in ADAMS. Using the kinematics simulation technology of ADAMS, we can get the various joints in a working cycle of the displacement characteristic curve, the velocity and acceleration curves of working conditions. This paper introduces how to establish the geometric model of articulated robot virtual prototype model. And some key technology details such as adding a constraint to model are also described. Kinematics simulation analysis of the manipulator with ADAMS software can greatly shorten the design cycle, improve design accuracy and reduce the cost of product development.

• Periodical: Applied Mechanics and Materials (Volumes 444-445)
• Pages: 1384-1388
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.444-445.1384
• Online since: October 2013
• Authors: Bin Hua, Yi Lin Chi, Xue Jun Wang, Quan Bai, Wei Zhong
• Keywords: Adam, Kinematics Simulation, Multi-Joint Robot, Solid Edge ST5, Virtual Prototype Technology

References

[1] Jingshan Zhao, Zhijing Feng, robot mechanism freedom degree analysis theory [M]. Beijing Science Press, 2009. In Chinese.

[2] Dahua Gao, Xiaobing Hu, kinematics simulation analysis of six degrees of freedom articulated handling robot based on ADAMS, modern design and advanced design technology [J]. 2010, 39 (1), pp.37-39. In Chinese.

[3] Zhenghao Ge, Virtual prototyping technology on ADAMS 2007 [M]. Beijing: Chemical Industry Press, 2009. In Chinese.

[4] Jinshi Wang, Youlin Wang, Miaomiao Yu, the Motion simulation of 6R cutting robot based on UG and ADAMS [J]. Manufacturing industry informatization, 2012(5), pp.55-56. In Chinese.

[5] Li Qi, Xuejun Wang, Bin Hua, Yanfang Ding, The Dynamic Simulation Research of Multi-joint Robot Based on ADAMS, Advanced Materials Research Vols. 694-697 (2013) , pp.251-254.

DOI: 10.4028/www.scientific.net/amr.694-697.251
