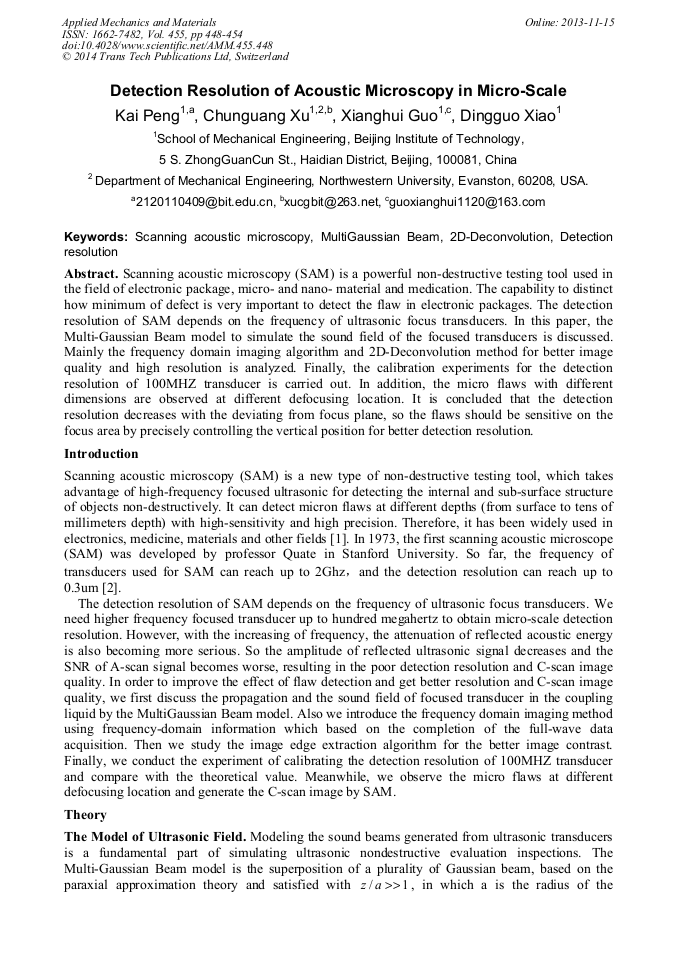

Detection Resolution of Acoustic Microscopy in Micro-Scale

Abstract:

Scanning acoustic microscopy (SAM) is a powerful non-destructive testing tool used in the field of electronic package, micro-and nanomaterial and medication. The capability to distinct how minimum of defect is very important to detect the flaw in electronic packages. The detection resolution of SAM depends on the frequency of ultrasonic focus transducers. In this paper, the Multi-Gaussian Beam model to simulate the sound field of the focused transducers is discussed. Mainly the frequency domain imaging algorithm and 2D-Deconvolution method for better image quality and high resolution is analyzed. Finally, the calibration experiments for the detection resolution of 100MHZ transducer is carried out. In addition, the micro flaws with different dimensions are observed at different defocusing location. It is concluded that the detection resolution decreases with the deviating from focus plane, so the flaws should be sensitive on the focus area by precisely controlling the vertical position for better detection resolution.

• Periodical: Applied Mechanics and Materials (Volume 455)
• Pages: 448-454
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.455.448
• Online since: November 2013
• Authors: Kai Peng*, Chun Guang Xu, Xiang Hui Guo, Ding Guo Xiao
• Keywords: 2D-Deconvolution, Detection Resolution, MultiGaussian Beam, Scanning Acoustic Microscopy

References

[1] B.R. Tittmann, C. Miyasaka, C. Ishiyama, and I. K. Park, Toward a more quantitative evaluation for nano-scaled thin film system with scanning acoustic microscopy, AIP Conference Proceedings, Vol. 1430(2012), pp.793-797.

DOI: 10.1063/1.4716306

[2] Hadimioglu B, Quate C F. Water acoustic microscopy at suboptical wavelengths. Applied Physics Letters, Vol 43(1983) pp.006-1007.

DOI: 10.1063/1.94223

[3] Lester W. Schmerr., A multigaussian ultrasonic beam model for high performance simulations on a personal computer. Materials Evaluation, Vol. 58(2000) pp.882-888.

[4] Guo Jianzhong, Lin Shuyu, A modified Wiener inverse filter for deconvolution in ultrasonic detection, Applied Acoustics. Vol. 24(2005), pp.97-102.

[5] Sheng-Wen Cheng, Resolution improvement of ultrasonic C-scan images by deconvolution using the monostatic point-reflector spreading function (MPSF) of the transducer, NDT&E International. Vol. 29(1996), pp.293-300.

DOI: 10.1016/s0963-8695(96)00032-1

[6] Kong T, Xu C, Xiao D., Experimental ESD method for restoration of blurry image in ultrasonic C-Scan. 2010 International Conference on Mecha-nic Automation and Control Engineering (MACE), pp.2632-2635.

DOI: 10.1109/mace.2010.5536806

[7] Sridhar Canumalla, Michael G. Oravecz and Lawrence W. Kessler, Resolution and Signal Loss in Acoustic Microscopy of Encapsulated IC Packages. Proceedings - Electronic Components and Technology Conference, (1998), pp.962-968.

DOI: 10.1109/ectc.1998.678825

[8] Canumalla, Sridhar., Resolution of broadbandransducers in acoustic microscopy of encapsulatedICs: Transducer selection. IEEE Transactions on Components and Packaging Technologies, Vol. 22(1999) pp.582-592.

DOI: 10.1109/6144.814975

[9] Zhongzhu Liu, Chunguang Xu and Xinyu Zhao, Development of a Practical Scanning Acoustic Microscopy, Advanced Materials Research, Vol. 468-471 (2012), , pp.1128-31, (2012).

DOI: 10.4028/www.scientific.net/amr.468-471.1128

[10] Semmens J E, Kessler L W., Application of acoustic frequency domain imaging for the evaluation of advanced micro electronic packages. Microelectronics Reliability, Vol 42 (2002), pp.1735-1740.

DOI: 10.1016/s0026-2714(02)00222-6
