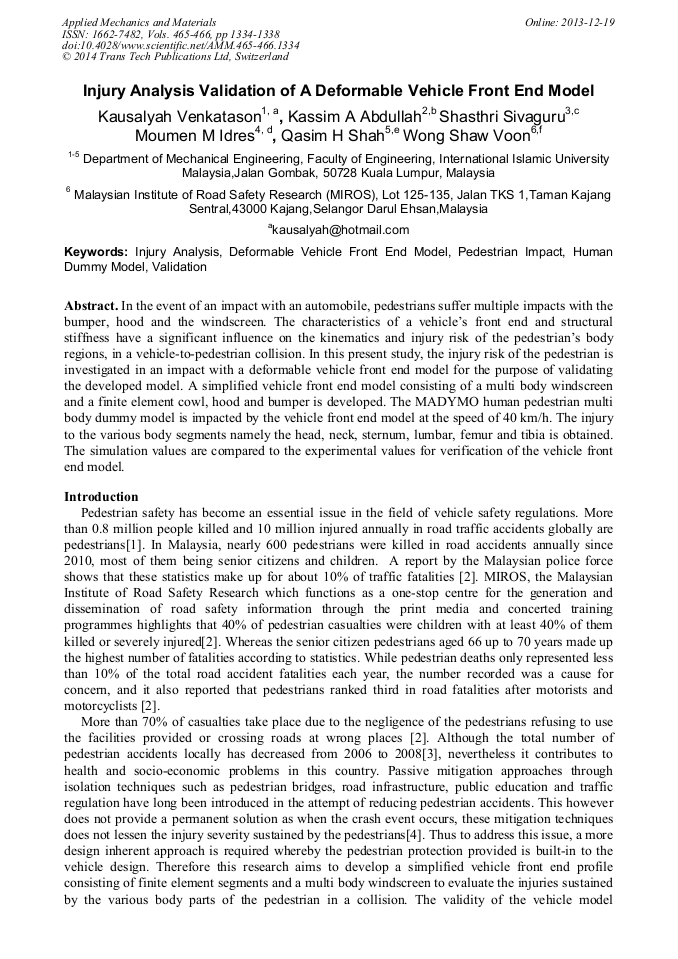

Injury Analysis Validation of a Deformable Vehicle Front End Model

Abstract:

In the event of an impact with an automobile, pedestrians suffer multiple impacts with the bumper, hood and the windscreen. The characteristics of a vehicles front end and structural stiffness have a significant influence on the kinematics and injury risk of the pedestrians body regions, in a vehicle-to-pedestrian collision. In this present study, the injury risk of the pedestrian is investigated in an impact with a deformable vehicle front end model for the purpose of validating the developed model. A simplified vehicle front end model consisting of a multi body windscreen and a finite element cowl, hood and bumper is developed. The MADYMO human pedestrian multi body dummy model is impacted by the vehicle front end model at the speed of 40 km/h. The injuryto the various body segments namely the head, neck, sternum, lumbar, femur and tibia is obtained. The simulation values are compared to the experimental values for verification of the vehicle front end model.

• Periodical: Applied Mechanics and Materials (Volumes 465-466)
• Pages: 1334-1338
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.465-466.1334
• Online since: December 2013
• Authors: Kausalyah Venkatason, Kassim Abdullah, Shasthri Sivaguru, Moumen M. Idres, Qasim H. Shah, Wong Shaw Voon
• Keywords: Deformable Vehicle Front End Model, Human Dummy Model, Injury Analysis, Pedestrian Impact, Validation

References

[1] The World Bank Group. Road safety. www. worldbank. org/html/fpd/ transport/roads/safety. htm (accessed 8 Mar 2002).

[2] Critical Factor Associated with Pedestrian Casualties in Motor Vehicle Crashes, Vehicle Safety Biomechanics, Malaysian Institute of Road Safety Research, MIROS Report(2011).

DOI: 10.15282/jmes.10.3.2016.5.0211

[3] Haslinda B A M, Modelling on Pedestrian Accidents in Malaysia, Master's Thesis , Universiti Teknologi MARA, (2010).

[4] Carter E , Clive N.S., Steve E, , Optimization of Passenger Car Design for the Mitigation of Pedestrian Head Injury Using a Genetic Algorithm, 5th European MADYMO Users Meeting, Cambridge, 26 – 27 September( 2005), page 99/110.

DOI: 10.1145/1068009.1068358

[5] TNO, MADYMO Human Models Manual, in Madymo, (2006) TNO Automotive: The Netherlands.

[6] Teng T L, T K Le, V L Ngo, ( 2010), Injury Analysis of pedestrians in collisions using the pedestrian deformable model, International Journal of Automotive Technology, Vol 11, No 2, pp.187-195(2010).

DOI: 10.1007/s12239-010-0024-2

[7] Wu C.C., The Analysis of Occupant Injury In Frontal Impact of Traffic Accident, M.S. Thesis, Da-Yeh university, Taiwan, ( 2003).

[8] Crandall J R, Bhalla K S. Madeley N J, Designing Road vehicles for pedestrian protection, (2002), British Medical Journal, May 11; 324(7346), (2002): 1145-8.

DOI: 10.1136/bmj.324.7346.1145

[9] Zhao Y, G F Rosala, I F Campean, A J Day, , A Response surface approach to front car optimization for minimizing pedestrian head injury levels, International Journal of Crashworthiness, Vol 15, No 2, April (2010), 143-150.

DOI: 10.1080/13588260903094392

[10] Liu X J, Yang J, , Effects of Vehicle Impact Velocity and Front End Structure on Dynamic Responses of Child Pedestrians, Traffic Injury Prevention, 4: 337-344, (2003).

DOI: 10.1080/714040491

[11] Yang J., Review of Injury Biomechanics in Car-Pedestrian Collisions. Report to European Passive Safety Network, February 28 (2002).
