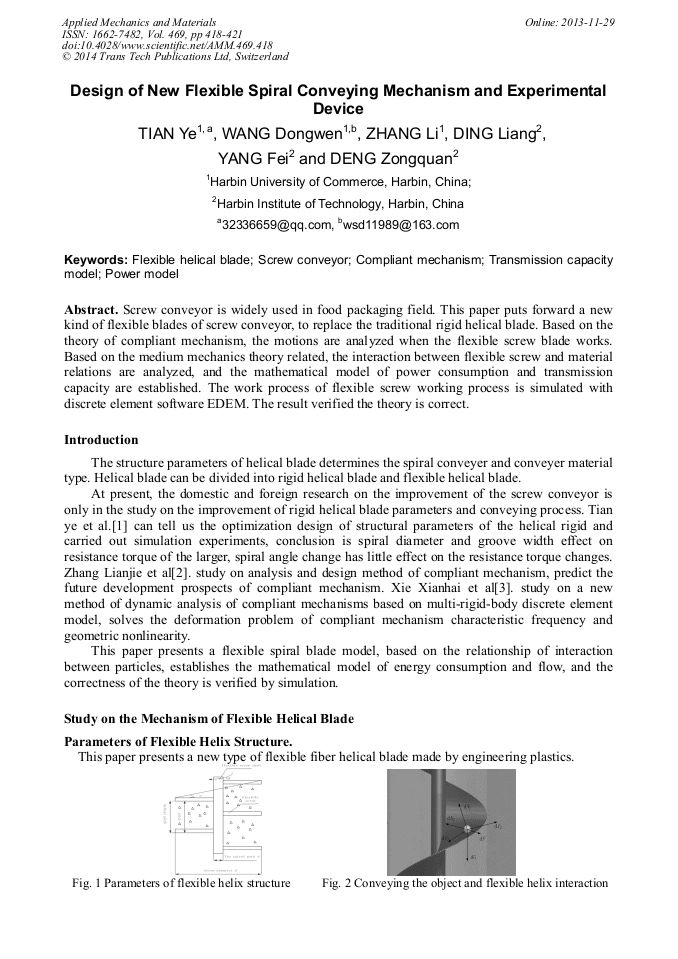

Design of New Flexible Spiral Conveying Mechanism and Experimental Device

Abstract:

Screw conveyor is widely used in food packaging field. This paper puts forward a new kind of flexible blades of screw conveyor, to replace the traditional rigid helical blade. Based on the theory of compliant mechanism, the motion are analyzed when the flexible screw blade works. Based on the medium mechanics theory related, The interaction between flexible screw and material relations are analyzed, and the mathematical model of power consumption and transmission capacity are established. The work process of flexible screw working process is simulated with discrete element software EDEM. The result verified the theory is correct.

• Periodical: Applied Mechanics and Materials (Volume 469)
• Pages: 418-421
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.469.418
• Online since: November 2013
• Authors: Ye Tian, Dong Wen Wang, Li Zhang, Liang Ding, Fei Yang, Zong Quan Deng
• Keywords: Compliant Mechanism, Flexible Helical Blade, Power Model, Screw Conveyor, Transmission Capacity Model

References

[1] Tian Ye, Deng zongquan, Tang Dewei, Jiang Shengyuan, Hou Xuyan: Chinese Journal of Mechanical Engineering Vol. 23 No. 6(2012. 12), p.4.

[2] Zhang Lianjie, Liu Shanzen, Zhu Zhencai: Combination Machine Tools and Automatic Processing No. 7(2007. 7), p.108.

[3] Xie Xianhai, Liao Daoxun: Chinese Journal of Mechanical Engineering Vol. 39 No. 5(2003. 5), p.10.

[4] Huang Songyuan: Mechanics of Granular Media(Machinery Industry Press, Chinese, 1993).

[5] Wang Huawei, Yu Yueqing, Su Liying, Wang Wenjing: Chinese Journal of Mechanical Engineering Vol. 44 No. 10(2008. 10), p.96.
