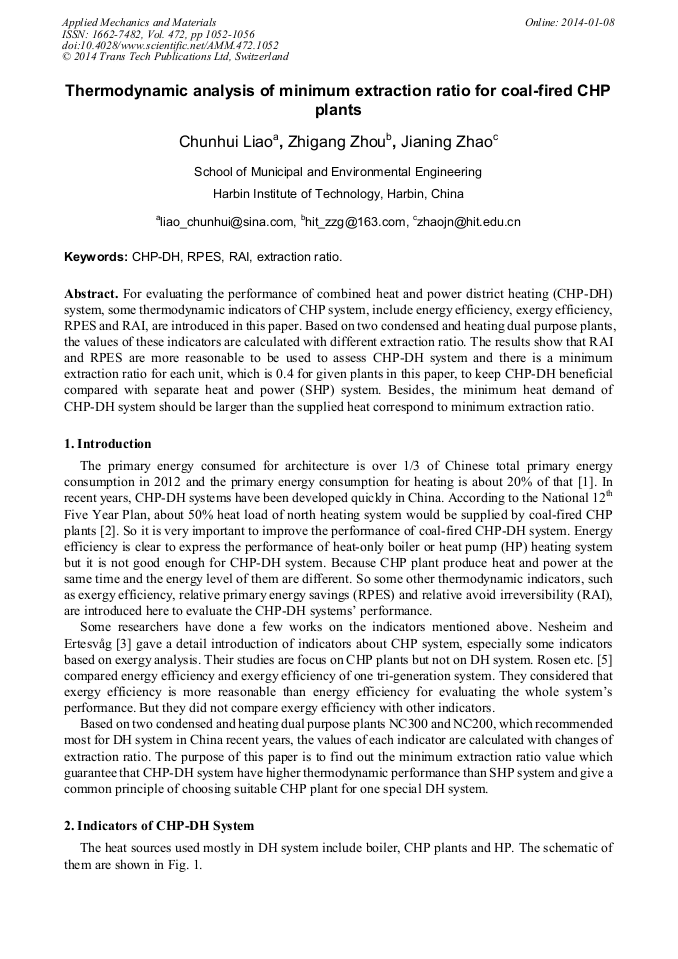

Thermodynamic Analysis of Minimum Extraction Ratio for Coal-Fired CHP Plants

Abstract:

For evaluating the performance of combined heat and power district heating (CHP-DH) system, some thermodynamic indicators of CHP system, include energy efficiency, exergy efficiency, RPES and RAI, are introduced in this paper. Based on two condensed and heating dual purpose plants, the values of these indicators are calculated with different extraction ratio. The results show that RAI and RPES are more reasonable to be used to assess CHP-DH system and there is a minimum extraction ratio for each unit, which is 0.4 for given plants in this paper, to keep CHP-DH beneficial compared with separate heat and power (SHP) system. Besides, the minimum heat demand of CHP-DH system should be larger than the supplied heat correspond to minimum extraction ratio.

• Periodical: Applied Mechanics and Materials (Volume 472)
• Pages: 1052-1056
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.472.1052
• Online since: January 2014
• Authors: Chun Hui Liao, Zhi Gang Zhou, Jia Ning Zhao
• Keywords: CHP-DH, Extraction Ratio, RAI, RPES

References

[1] Building Energy Research Center of Tsinghua University. 2013 Annual Report on China Building Energy Efficiency. China Building Industry Press. 2013. 3.

[2] The Urban Heating Report of China. China Huadian Corporation. 2012. 4.

[3] Ertesvåg IS. Exergetic comparison of efficency indicators for combined heat and power (CHP). Energy 2007; 32: 2038-(2050).

DOI: 10.1016/j.energy.2007.05.005

[4] Nesheim SJ, Ertesvåg IS. Efficiencies and indicators defined to promote combined heat and power (CHP). Energy Convers Manage 2007; 48: 1004-15.

DOI: 10.1016/j.enconman.2006.08.001

[5] Rosen MA, Le MN, Dincer I. Efficiency analysis of a cogeneration and district energy system. Appl Therm Engr 2005: 25(1): 147-159.

DOI: 10.1016/j.applthermaleng.2004.05.008

[6] Chinese Statistical Yearbook 2012: 7-6 Electricity Balance Sheet. National Bureau of Statistics of China. http: /www. stats. gov. cn/tjsj/ndsj/2012/indexch. htm.

[7] Ministry of Housing and Urban-Rural Construction of the People's Republic of China. Design standard for energy efficiency of residential buildings in severe cold and cold zones (JGJ26-2010). Beijing: China Architecture and Building Press; (2010).

[8] Zhi-Ping Song. Unit Consumption, Model for a Heat Supply System. Journal of Engineering for Thermal Energy & Power. 1996. 11（5）：305-310.

[9] Commission Decision of 21 December 2006 establishing harmonized efficiency of Directive 2004/8/EC of the European parliament and of the council. Official J European Union. 6. 2. 2007: L. 32/183-L 32/188.

[10] Xuzhong Yang, Xiaoke Guo, Hui Kang. Combined Heat and Power Planning & Design Manual. Beijing：China Electric Power Press; (2009).
