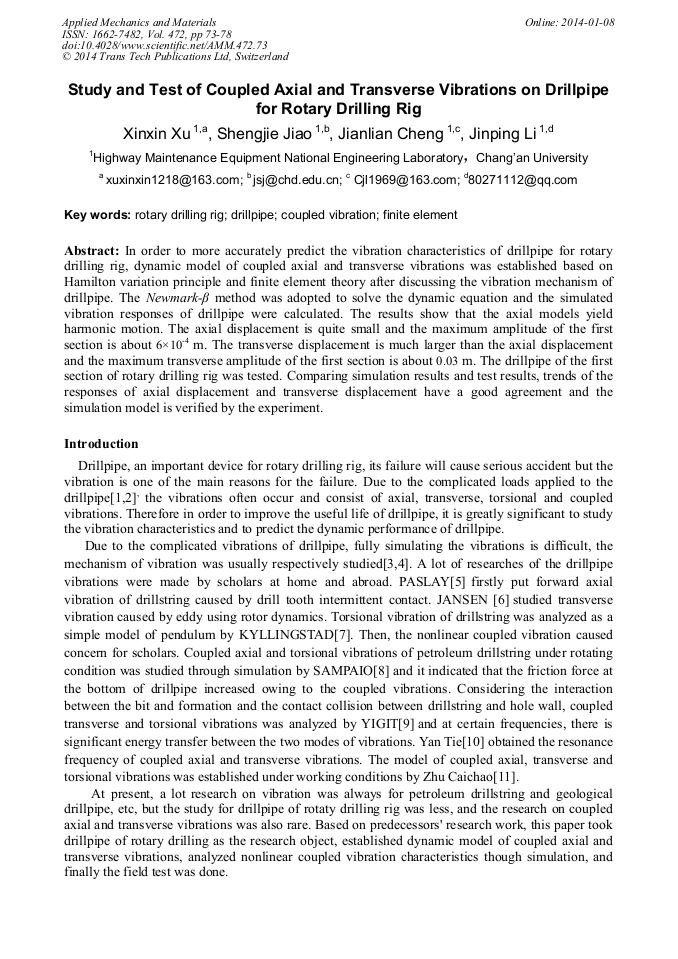

Study and Test of Coupled Axial and Transverse Vibrations on Drillpipe for Rotary Drilling Rig

Abstract:

In order to more accurately predict the vibration characteristics of drillpipe for rotary drilling rig, dynamic model of coupled axial and transverse vibrations was established based on Hamilton variation principle and finite element theory after discussing the vibration mechanism of drillpipe. The Newmark-β method was adopted to solve the dynamic equation and the simulated vibration responses of drillpipe were calculated. The results show that the axial models yield harmonic motion. The axial displacement is quite small and the maximum amplitude of the first section is about 6×10^-4 m. The transverse displacement is much larger than the axial displacement and the maximum transverse amplitude of the first section is about 0.03 m. The drillpipe of the first section of rotary drilling rig was tested. Comparing simulation results and test results, trends of the responses of axial displacement and transverse displacement have a good agreement and the simulation model is verified by the experiment.

• Periodical: Applied Mechanics and Materials (Volume 472)
• Pages: 73-78
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.472.73
• Online since: January 2014
• Authors: Xin Xin Xu, Sheng Jie Jiao, Jian Lian Cheng, Jin Ping Li
• Keywords: Coupled Vibration, Drillpipe, Finite Element, Rotary Drilling Rig

References

[1] LI Zhong-yin, JIAO Sheng-jie, WU Fang-xiao. Rotary Drilling Rig and Construction Technology[M], Beijing, China Communications Press, (2010).

[2] LI Zhong-yin, XIA Bai-ru, WU Fang-xiao. Mechanism of Efficient Rock Cracking and Its Engineering Application of Rotary Drilling Rig[J]. China Journal of Highway and Transport, 2009, 22(3): 121-126.

[3] MITCHELL.R. F, ALLEN.M.B. Lateral vibration: the key to BHA failure analysis[J]. World Oil, 1985, 200(40): 101-104.

[4] BRETT.J.F. The genesis of torsional drillstring vibrations[J]. SPE Drilling Engineering, 1992, 7(3): 168-174.

DOI: 10.2118/21943-pa

[5] PASLAY.P. R, BOGY.D.B. Drill string vibration due to intermittent contact of bit teeth[J]. American Society of Mechanical Engineers Journal of Engineering for Industry, 1963, 85(2): 187-194.

DOI: 10.1115/1.3667632

[6] JANSEN.J.D. Non-linear rotor dynamics as applied to oilwell drillstring vibrations[J]. Journal of Sound and Vibration, 1991, 147(1): 115-135.

DOI: 10.1016/0022-460x(91)90687-f

[7] KYLLINGSTAD. A, HALSEY.G.W. A study of slip-stick motion of the bit[J]. SPE. Drilling Engineering, 1988, 3(4): 369-373.

DOI: 10.2118/16659-pa

[8] SAMPAIO. R, PIOVAN.M. T, VENERO LAZANO.G. Coupled axial/torsional vibrations of drill-strings by means of non-linear model[J]. Mechanics Research Communications, 2007, 34(5-6): 497-502.

DOI: 10.1016/j.mechrescom.2007.03.005

[9] YIGIT.A. S, CHRISTOFOROU.A.P. Coupled torsional and bending vibrations of drillstrings subject to impact with friction[J]. Journal of Sound and Vibration, 1998, 215(1): 167-181.

DOI: 10.1006/jsvi.1998.1617

[10] YAN Tie, WANG Xuegang, LI Shan, et al. Finite Element Analysis of Longitudinal and Lateral Coupled Vibration of Drillstring[J]. Oil Field Equipment, 2012, 41(3): 39-42.

[11] ZHU Cai-chao, FENG Dai-hui, LU Bo, et al. Nonlinear Study on Dynamic Action of Integrated Drill String-Well Rock System[J]. Chinese Journal of Mechanical Engineering, 2007, 43(5): 145-149.

DOI: 10.3901/jme.2007.05.145

[12] M.A. TRINDADE, C. WOLTER, R. SAMPAIO. Karhunen-Loe've Decompositi on of Coupled Axial/Bending Vibrations of Beams Subject to Impacts[J]. Journal of Sound and Vibration, 2005, 279(3-5): 1015-1036.

DOI: 10.1016/j.jsv.2003.11.057
