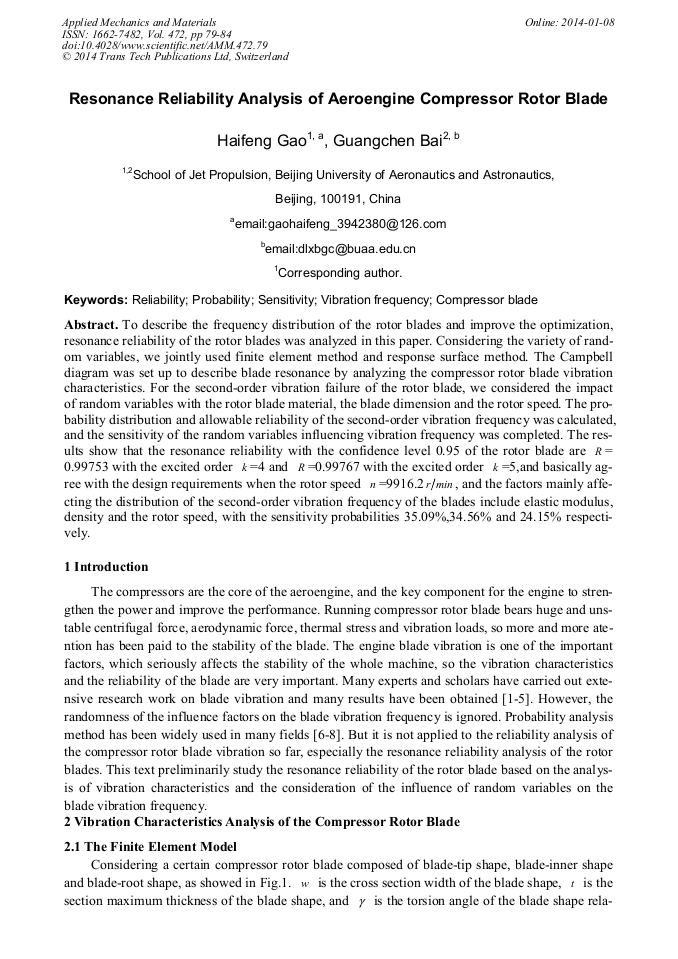

Resonance Reliability Analysis of Aeroengine Compressor Rotor Blade

Abstract:

To describe the frequency distribution of the rotor blades and improve the optimization, resonance reliability of the rotor blades was analyzed in this paper. Considering the variety of rand-om variables, we jointly used finite element method and response surface method. The Campbell diagram was set up to describe blade resonance by analyzing the compressor rotor blade vibration characteristics. For the second-order vibration failure of the rotor blade, we considered the impact of random variables with the rotor blade material, the blade dimension and the rotor speed. The pro-bability distribution and allowable reliability of the second-order vibration frequency was calculated, and the sensitivity of the random variables influencing vibration frequency was completed. The res-ults show that the resonance reliability with the confidence level 0.95 of the rotor blade are = 0.99753 with the excited order =4 and =0.99767 with the excited order =5,and basically ag-ree with the design requirements when the rotor speed =9916.2, and the factors mainly affe-cting the distribution of the second-order vibration frequency of the blades include elastic modulus, density and the rotor speed, with the sensitivity probabilities 35.09%,34.56% and 24.15% respecti-vely.

• Periodical: Applied Mechanics and Materials (Volume 472)
• Pages: 79-84
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.472.79
• Online since: January 2014
• Authors: Hai Feng Gao, Guang Chen Bai
• Keywords: Compressor Blade, Probability, Reliability, Sensitivity, Vibration Frequency

References

[1] Mukhopadhyay NK, Ghosh-chowdhury S, Das G, Chattoraj I, Das SK, Bhattacharya DK. An investigation of the failure of low-pressure steam turbine blades. Eng Fail Anal 1998; 5–3: 181 –93.

DOI: 10.1016/s1350-6307(98)00016-8

[2] Kermanpur A, Sepehri AH, Ziaei-Rad S, Nourbakhshnia N, Mosaddeghfar M. Failure analysis of Ti6Al4V gas turbine compressor blades. J Eng Fail Anal 2008; 15: 1052–64.

DOI: 10.1016/j.engfailanal.2007.11.018

[3] Srivastava R, Bakhle M A, Keith T G etc. Aeroelastic stability computations for turbo machin- ery [R]. NASA TM 2001 210693, (2001).

[4] Bendiksen O. Aeroelastic problem in turbomachines [R]. AIAA 1990 1157, (1990).

[5] A. Rama Rao, B K Dutta. Vibration analysis for detecting failure of compressor blade [J]. Engi- neering Failu- re Analysis, 2012, 25(5)：211-218.

DOI: 10.1016/j.engfailanal.2012.05.012

[6] Pietrzyk K, Hagentoft C E. Probabilistic analysis of air infiltration in low-rise buildings [J]. Bu- ilding and Environment, 2008, 43(4): 537-549.

DOI: 10.1016/j.buildenv.2007.01.024

[7] Liu Zhiquan. Probability Design Method of Margins of Safty for Reliability Characteristic Par- ameters of Space Mechanical Products [J]. Chinese Space Science and Technology, 2007 (4): 34-43. (in Chinese).

[8] Lü Q, Low B K. Probabilistic analysis of underground rock excavations using response sur- face method and SORM [J]. Computers and Geotechnics, 2011, 38(8): 1008-1021.

DOI: 10.1016/j.compgeo.2011.07.003

[9] EEom Y S, Yoo K S, Park J Y. Reliability- based topology optimization using a standard re- sponse surface method for three-dimensional structures [J]. Structural and multidisciplinary optimization, 2011, 43（2）: 287- 295.

DOI: 10.1007/s00158-010-0569-8

[10] FEI Cheng-wei, BAI Guang-chen. Probabilistic Analysis of Turbine Blade Radial Deformation for Aeroengine [J]. Aeroengine, 2012, 38(1)：17-20. (in Chinese).

[11] LI Chang, HAN Xing. Analysis of reliability sensitivity for gear engagement based on response surface methods [J]. Journal of Aerospace Power, 2011, 26（3）: 711- 715. (in Chinese).
