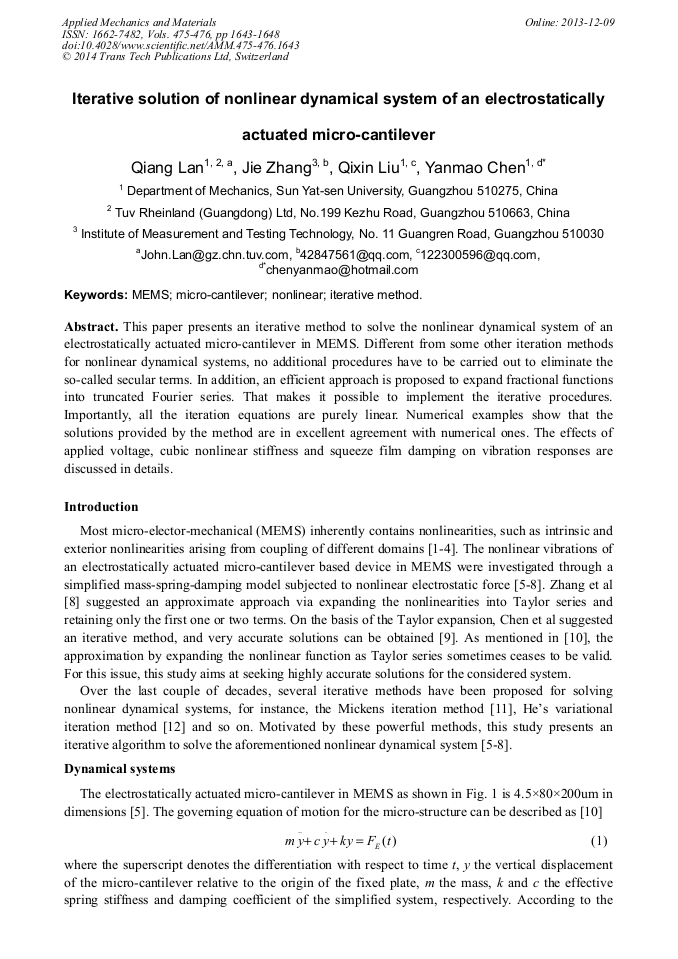

Iterative Solution of Nonlinear Dynamical System of an Electrostatically Actuated Micro-Cantilever

Abstract:

This paper presents an iterative method to solve the nonlinear dynamical system ofan electrostatically actuated micro-cantilever in MEMS. Different from someother iteration methods for nonlinear dynamical systems, no additionalprocedures have to be carried out to eliminate the so-called secular terms. Inaddition, an efficient approach is proposed to expand fractional functions intotruncated Fourier series. That makes it possible to implement the iterativeprocedures. Importantly, all the iteration equations are purely linear. Numericalexamples show that the solutions provided by the method are in excellentagreement with numerical ones. The effects of applied voltage, cubic nonlinearstiffness and squeeze film damping on vibration responses are discussed indetails.

• Periodical: Applied Mechanics and Materials (Volumes 475-476)
• Pages: 1643-1648
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.475-476.1643
• Online since: December 2013
• Authors: Qiang Lan, Jie Zhang, Qi Xin Liu, Yan Mao Chen
• Keywords: Iterative Method, MEMS, Micro-Cantilever, Nonlinear

References

[1] S.D. Senturia, Simulation and design of microsystems: a 10-year preserve, Sensors and Actuators A, 67 (1998) 1-7.

[2] S.E. Lyshevski, Nonlinear microelectromechanic systems (MEMS) analysis and design via the Lyapunov stability theory, in: Proceeding of the 40th IEEE Conference on Decision and Control Orlando, FL USA, pp.4681-4686 (1997).

DOI: 10.1109/cdc.2001.980945

[3] S.K. De, N.R. Aluru, Complex nonlinear oscillations in electrostatically actuated microstructures. J. Microelectromechanical Systems 15 (2006) 355-369.

DOI: 10.1109/jmems.2006.872227

[4] M. Ashhab, M.V. Salapaka, M. Dahleh, etc, Dynamic analysis and control of microcantilevers. Automatica 35 (1999) 1663-1670.

DOI: 10.1016/s0005-1098(99)00077-1

[5] S. Liu, A. Davidson, Q. Liu, Simulation studies on nonlinear dynamics and chaos in a MEMS cantilever control system, J. Micromechanical Microengineering 14 (2004) 1064-1073.

DOI: 10.1088/0960-1317/14/7/029

[6] W.M. Zhang, G. Meng, D. Chen, Stability, nonlinearity and reliability of electrostatically actuated MEMS devices, Sensors 7 (2007) 760-796.

DOI: 10.3390/s7050760

[7] G. Meng, W.M. Zhang, H. Huang, etc, Micro-rotor dynamics for micro-electro-mechanical systems (MEMS). Chaos, Solitons Fractals 40 (2009) 538-562.

DOI: 10.1016/j.chaos.2007.08.003

[8] W.M. Zhang, G. Meng, Nonlinear dynamical system of micro-cantilever under combined parametric and forcing excitations in MEMS, Sensors and Actuators A 119 (2005) 291-299.

DOI: 10.1016/j.sna.2004.09.025

[9] Y.M. Chen, G. Meng, J.K. Liu, An iterative method for nonlinear dynamical system of an electrostatically actuated micro-cantilever, Phys. Letters A, 374 (2010) 3455-3459.

DOI: 10.1016/j.physleta.2010.06.068

[10] Y.M. Chen, G. Meng, J.K. Liu, On Approximate Treatment of Nonlinear Dynamical System of an Electrostatically Actuated Micro-Cantilever, Applied Mech. Materials 29-32 (2010) 2211-2218.

DOI: 10.4028/www.scientific.net/amm.29-32.2211

[11] R.E. Mickens, Iteration procedure for determining approximate solutions to non-linear oscillator equation, J. Sound Vib. 116 (1987) 185-188.

DOI: 10.1016/s0022-460x(87)81330-5

[12] J.H. He, Approximate analytical solution for seepage flow with fractional derivatives in porous media. Comput. Methods Applied Mech. Engng. 167 (1998) 57-68.

DOI: 10.1016/s0045-7825(98)00108-x

[13] Y.M. Chen, J.K. Liu, A modified Mickens iteration procedure for nonlinear oscillators, J. Sound Vib. 314 (2008) 465-473.

DOI: 10.1016/j.jsv.2008.03.007
