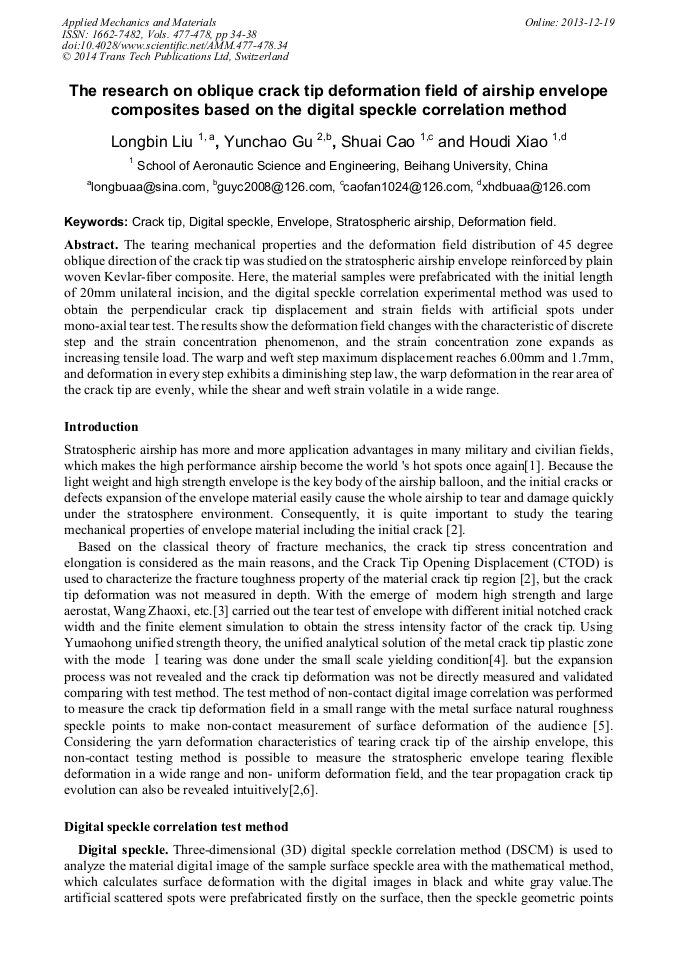

The Research on Oblique Crack Tip Deformation Field of Airship Envelope Composites Based on the Digital Speckle Correlation Method

Abstract:

The tearing mechanical properties and the deformation field distribution of 45 degree oblique direction of the crack tip was studied on the stratospheric airship envelope reinforced by plain woven Kevlar-fiber composite. Here, the material samples were prefabricated with the initial length of 20mm unilateral incision, and the digital speckle correlation experimental method was used to obtain the perpendicular crack tip displacement and strain fields with artificial spots under mono-axial tear test. The results show the deformation field changes with the characteristic of discrete step and the strain concentration phenomenon, and the strain concentration zone expands as increasing tensile load. The warp and weft step maximum displacement reaches 6.00mm and 1.7mm, and deformation in every step exhibits a diminishing step law, the warp deformation in the rear area of the crack tip are evenly, while the shear and weft strain volatile in a wide range

• Periodical: Applied Mechanics and Materials (Volumes 477-478)
• Pages: 34-38
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.477-478.34
• Online since: December 2013
• Authors: Long Bin Liu*, Yun Chao Gu, Shuai Cao, Hou Di Xiao
• Keywords: Crack Tip, Deformation Field, Digital Speckle, Envelope, Stratospheric Airship

References

[1] Yao Wei，LI Yong，Wang Wenjun: SPACECRAFT ENGINEERING Vol. 17 (2008), p.69 (In Chinese).

[2] XU Bin, YAN Yinbiao: Materials Review Vol. 26 (2012), p.124. (In Chinese).

[3] WANG Zhaoxi, DOU Baofeng, PANG Xingzhao: Acta Materiae Compositae Sinica Vol. 28 (2011), p.211.

[4] Yang Weiyang, Zhang Shaoqin: Applied Mathematics and Mechanics Vol. 14 (1993), p.707.

[5] DAI Shuhong, MA Shengli: Rock Mechanics and Engineering Vol. 31 (2012), p.2501.

[6] Kim S C, Kim J S, Yoon H J: International Journal of Precision Engineering and Manufacturing Vol. 12 (2011), p.321.

[7] Zhou Zhongbin, Chen Pengwan: HIGH PRESSURE PHYSICS Vol. 25 (2011), p.1. (In Chinese).

[8] Cao Xu Wang, Weizhi, Gu Zhengming: edtied by Aviation Industry Changsha (2008), in press.

[9] ASTM D1004-2009 Standard: Test method for tear resistance of plastic film and sheeting.

[10] Wang Liming, Gao Chuanping: Journal of Qingdao University Vol. 16 (2001), p.29. (In Chinese).
