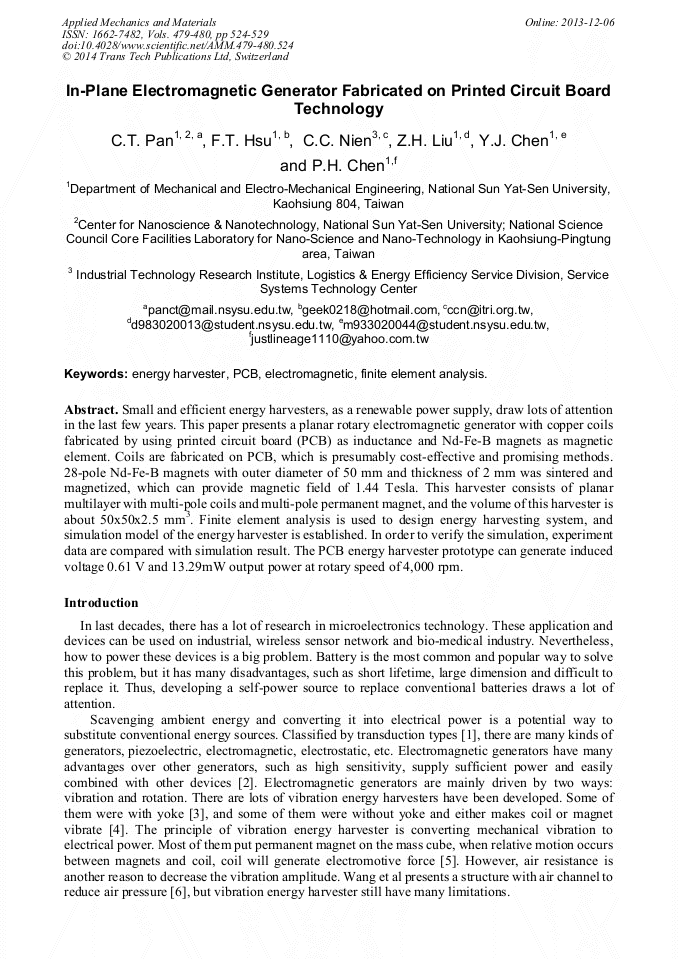

In-Plane Electromagnetic Generator Fabricated on Printed Circuit Board Technology

Abstract:

Small and efficient energy harvesters, as a renewable power supply, draw lots of attention in the last few years. This paper presents a planar rotary electromagnetic generator with copper coils fabricated by using printed circuit board (PCB) as inductance and Nd-Fe-B magnets as magnetic element. Coils are fabricated on PCB, which is presumably cost-effective and promising methods. 28-pole Nd-Fe-B magnets with outer diameter of 50 mm and thickness of 2 mm was sintered and magnetized, which can provide magnetic field of 1.44 Tesla. This harvester consists of planar multilayer with multi-pole coils and multi-pole permanent magnet, and the volume of this harvester is about 50x50x2.5 mm³. Finite element analysis is used to design energy harvesting system, and simulation model of the energy harvester is established. In order to verify the simulation, experiment data are compared with simulation result. The PCB energy harvester prototype can generate induced voltage 0.61 V and 13.29mW output power at rotary speed of 4,000 rpm.

• Periodical: Applied Mechanics and Materials (Volumes 479-480)
• Pages: 524-529
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.479-480.524
• Online since: December 2013
• Authors: C.T. Pan, F.T. Hsu, C.C. Nien, Z.H. Liu, Y.J. Chen, P.H. Chen
• Keywords: Electromagnetic, Energy Harvester, Finite Element Analysis (FEA), PCB

References

[1] P.D. Mitcheson, E.K. Reilly, T. Toh, P.K. Wright, E.M. Yeatman, Performance limits of the three MEMS inertial energy generator transduction types, Journal of Micromechanics and Microengineering, 17 (2007) 211-217.

DOI: 10.1088/0960-1317/17/9/s01

[2] D.P. Arnold, F. Herrault, I. Zana, P. Galle1, J.W. Park, S. Das, J.H. Lang, M.G. Allen, Design optimization of an 8W, microscale, axial-flux, permanent-magnet generator, Journal of Micromechanics and Microengineering. 16 (2006) 290-297.

DOI: 10.1088/0960-1317/16/9/s17

[3] S. Kulkarni, S. Roy, T. O'Donnell, S. Beeby, J. Tudor, Vibration based electromagnetic micropower generator on silicon, Journal of Applied Physics. 99 (2006) 511-513.

DOI: 10.1063/1.2176089

[4] S. Kulkarni, E. Koukharenko, R. Torah, J. Tudor, S. Beeby, T. O'Donnell, S. Roy, Design, fabrication and test of integrated micro-scale vibration-based electromagnetic generator, Sensors and Actuators A: Physical. 145 (2008) 336-342.

DOI: 10.1016/j.sna.2007.09.014

[5] P.H. Wang, X.H. Dai, D.M. Fang, X.L. Zhao, Design, fabrication and performance of a new vibration-based electromagnetic micro power generator, Microelectronics Journal. 38 (2007) 1175-1180.

DOI: 10.1016/j.mejo.2007.10.002

[6] P.H. Wang, H.T. Liu, X.H. Dai, Z.Q. Yang, Z.Z. Wang, X.L. Zhao, Design, simulation, fabrication and characterization of a micro electromagnetic vibration energy harvester with sandwiched structure and air channel, Microelectronics Journal. 43 (2012).

DOI: 10.1016/j.mejo.2011.10.003

[7] I. Sari, T. Balkan, H. Kulah, An electromagnetic micro power generator for wideband environmental vibrations, Sensors and Actuators A: Physical. 145 (2008) 405-413.

DOI: 10.1016/j.sna.2007.11.021

[8] C. Serre, A. Perez-Rodrıguez, N. Fondevilla, E. Martincic, S. Martınez, J.R. Morante, J. Montserrat, J. Esteve, Design and implementation of mechanical resonators for optimized inertial electromagnetic microgenerators, Microsyst Technol. 14 (2007).

DOI: 10.1007/s00542-007-0494-y

[9] C. Serre, A. Perez-Rodrıguez, N. Fondevilla, J.R. Morante, J. Montserrat, J. Esteve, Linear and non-linear behavior of mechanical resonators for optimized inertial electromagnetic microgenerators, Microsyst Technol. 13 (2007) 1655-1661.

DOI: 10.1007/s00542-009-0825-2

[10] J. Yang, Y.M. Wen, P. Li, X.Z. Dai, A magnetoelectric, broadband vibration-powered generator for intelligent sensor systems, Sensors and Actuators A: Physical. 168 (2011) 358-364.

DOI: 10.1016/j.sna.2011.04.038

[11] C.T. Pan, T.T. Wu, Simulation and fabrication of magnetic rotary microgenerator with multipolar Nd/Fe/B magnet, Microelectronics Reliability. 47 (2007) 2129-2134.

DOI: 10.1016/j.microrel.2006.09.037

[12] C.T. Pan, Y.J. Chen, Application of low temperature co-fire ceramics on in-plane micro-generator, Sensors and Actuators A: Physical. 144 (2008) 144-153.

DOI: 10.1016/j.sna.2007.12.008

[13] C.T. Pan, Y.J. Chen, S.C. Shen, Simulation and analysis of electromagnetic in-plane microgenerator, Journal of Micro-Nanolithography MEMS and MOEMS. 8 (2009) 031304.

DOI: 10.1117/1.3152363

[14] A.S. Holmes, G. Hong, K.R. Pullen, Axial-Flux Permanent Magnet Machines for Micropower Generation, Journal of Microelectromechanical System. 14 (2005) 54-62.

DOI: 10.1109/jmems.2004.839016

[15] S.M. Hosseini, M.A. Mirsalim, M. Mirzaeil, Design, Prototyping, and analysis of a low cost axial-flux coreless permanent-magnet generator, Transations on Magnets. 44 (2008) 75-80.

DOI: 10.1109/tmag.2007.909563
