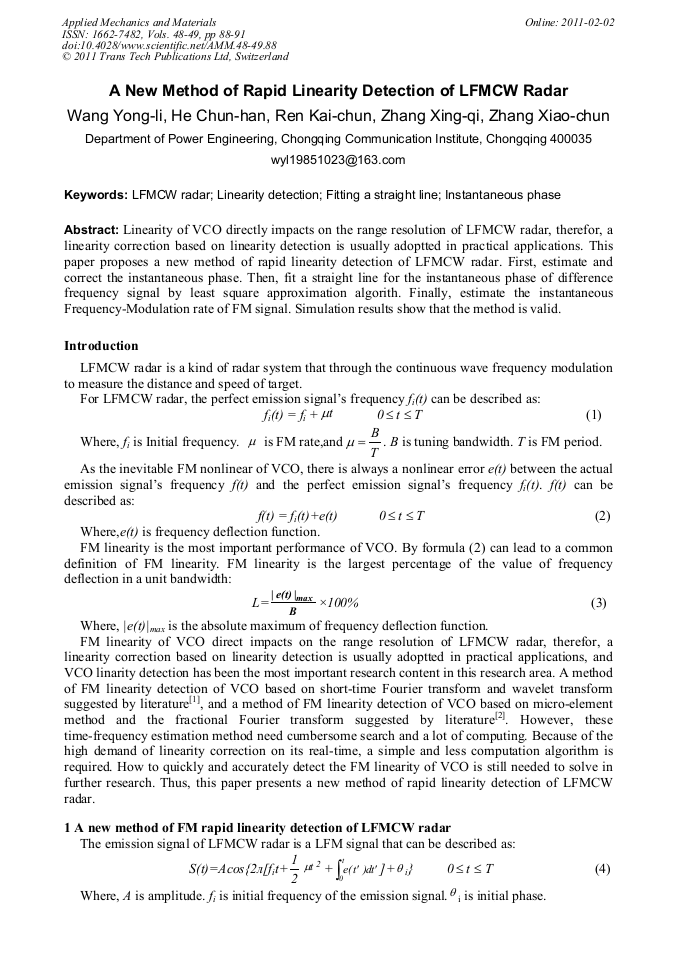

A New Method of Rapid Linearity Detection of LFMCW Radar

Abstract:

Linearity of VCO directly impacts on the range resolution of LFMCW radar, therefor, a linearity correction based on linearity detection is usually adoptted in practical applications. This paper proposes a new method of rapid linearity detection of LFMCW radar. First, estimate and correct the instantaneous phase. Then, fit a straight line for the instantaneous phase of difference frequency signal by least square approximation algorith. Finally, estimate the instantaneous Frequency-Modulation rate of FM signal. Simulation results show that the method is valid.

• Periodical: Applied Mechanics and Materials (Volumes 48-49)
• Pages: 88-91
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.48-49.88
• Online since: February 2011
• Authors: Yong Li Wang, Chun Han He, Kai Chun Ren, Xing Qi Zhang, Xiao Chun Zhang
• Keywords: Fitting a Straight Line, Instantaneous Phase, LFMCW Radar, Linearity Detection

References

[1] Ren Kai-chun, Tu Ya-qing, A New Method of Testing Frequency-modulation Linearity of a LFMCW Radar, MODERN RADAR, vol. 28, pp.13-17, (2006).

[2] Xu Bao-song, Tu Ya-qing, Liu Liang-bing, VCO Nonlinearity Detection Method Based on Element Analytic and FRFT, JOURNAL OF ELECTRONIC MEASUREMENT AND INSTRUMENT, vol. 22, pp.117-122, (2008).

[3] Xiao Wei, Tu Ya-qing, Li Xian-li, Review of Sweeping Nonlinearity Correction Technology for VCO, ELECTRICAL MEASUREMENT & INSTRUMENTATION, vol. 46, pp.33-38, (2009).

[4] Liu F, Huang Y, Tao R, Chirp-Rate Resolution of Fractional Fourier Transform in Multi-component LFM Signal, Journal of Beijing Institute of Technology, (2009).

DOI: 10.1109/wicom.2008.431

[5] Merrill.I. Skolnik, Radar Handbook(Second Editon). PUBLISHING HOUSE OF ELECTRONICS INDUSTRY, (2003).
