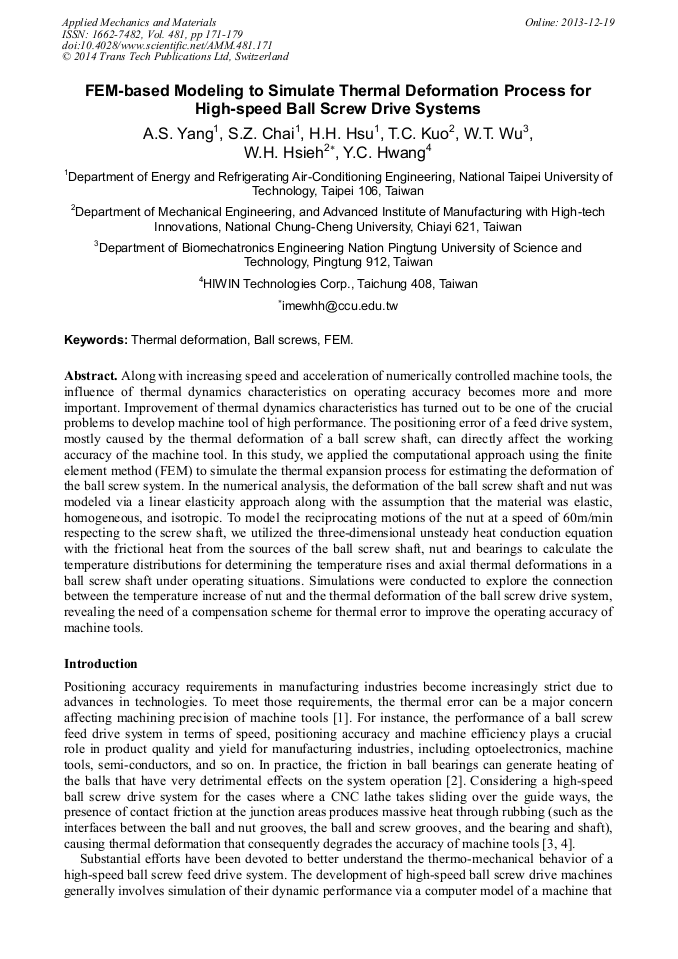

FEM-Based Modeling to Simulate Thermal Deformation Process for High-Speed Ball Screw Drive Systems

Abstract:

Along with increasing speed and acceleration of numerically controlled machine tools, the influence of thermal dynamics characteristics on operating accuracy becomes more and more important. Improvement of thermal dynamics characteristics has turned out to be one of the crucial problems to develop machine tool of high performance. The positioning error of a feed drive system, mostly caused by the thermal deformation of a ball screw shaft, can directly affect the working accuracy of the machine tool. In this study, we applied the computational approach using the finite element method (FEM) to simulate the thermal expansion process for estimating the deformation of the ball screw system. In the numerical analysis, the deformation of the ball screw shaft and nut was modeled via a linear elasticity approach along with the assumption that the material was elastic, homogeneous, and isotropic. To model the reciprocating motions of the nut at a speed of 60m/min respecting to the screw shaft, we utilized the three-dimensional unsteady heat conduction equation with the frictional heat from the sources of the ball screw shaft, nut and bearings to calculate the temperature distributions for determining the temperature rises and axial thermal deformations in a ball screw shaft under operating situations. Simulations were conducted to explore the connection between the temperature increase of nut and the thermal deformation of the ball screw drive system, revealing the need of a compensation scheme for thermal error to improve the operating accuracy of machine tools.

• Periodical: Applied Mechanics and Materials (Volume 481)
• Pages: 171-179
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.481.171
• Online since: December 2013
• Authors: A.S. Yang, S.Z. Chai, H.H. Hsu, T.C. Kuo, W.T. Wu, W.H. Hsieh*, Y.C. Hwang
• Keywords: Ball Screws, Finite Element Method (FEM), Thermal Deformation

References

[1] S.C. Huang, Analysis of a Model to Forecast thermal deformation of ball screw feed drive systems, Int. J. Math. Tools Manufact, Vol. 35, No, 8, 1995, pp.1099-11.

DOI: 10.1016/0890-6955(95)90404-a

[2] Won Soo Yun, Soo Kwang Kim, Dong Woo Cho, Thermal error analysis for a CNC lathe feed drive system, Int. J. Mach. Tools Manuf., vol. 39, 1999, p.1087–1101.

DOI: 10.1016/s0890-6955(98)00073-x

[3] Z.Z. Xu, X.J. Liu, H.K. Kim, J.H. Shin S.K. Lyu, Thermal error forecast and performance evaluation for an air-cooling ball screw system, Int. J. Math. Tools Manufact. Vol. 51. 2011. pp.605-611.

DOI: 10.1016/j.ijmachtools.2011.04.001

[4] Chao Jin, Bo Wu , Youmin Hu, Heat generation modeling of ball bearing based on internal load distribution, Tribology International, Volume 45, Issue 1, January 2012, Pages 8–15.

DOI: 10.1016/j.triboint.2011.08.019

[5] Bernd Bossmanns, Jay F. Tu, A thermal model for high speed motorized spindles, Int. J. Mach. Tools Manuf., vol. 39, 1999, p.1345–1366.

DOI: 10.1016/s0890-6955(99)00005-x

[6] R. Ramesh, M. A. Mannan, A. N. Po, Thermal error measurement and modeling in machine tools. Part I. Influence of varying operation conditions, Int. J. Mach. Tools Manuf., vol. 43, 2003, p.391–404.

DOI: 10.1016/s0890-6955(02)00263-8

[7] J. S. Chen, A study of thermally induced machine tool errors in real cutting conditions, Int. J. Mach. Tools Manuf., vol. 36, 1996, p.1401–1411.

DOI: 10.1016/0890-6955(95)00096-8

[8] S. Li, Y. Zhang, G. Zhang, "A study of pre-compensation for thermal.

[9] errors of NC machine tools, " Int. J. Mach. Tools Manuf., vol. 37, 1997, p.1715–1719.

[10] C. H. Lo, J. Yuan, J. Ni, An application of real-time error compensation on a turning center, Int. J. Mach. Tools Manuf., vol. 35, 1995, p.1669–1682.

DOI: 10.1016/0890-6955(95)97296-c

[11] M. Xu, S. Y. Jiang, Y. Cai, "An improved thermal model for machine.

[12] tool bearings, " Int. J. Mach. Tools Manuf., vol. 47, 2007, pp.53-62.

[13] S. Koda, T. Murata, K. Ueda, T. Sugita, Automatic compensation of thermal expansion of ball screw in machining centers, Trans. Jpn. Soc. Mech. Eng. Part C, vol. 21, 1990, p.154–159.

[14] ANSYS, 13 User Guide, ANSYS Inc., Canonsburg, PA, USA, (Web site: www. ansys. com) (2010).

DOI: 10.1016/b978-0-12-811768-2.00022-5

[15] Solution for Heating of Ball Screw and Environmental Engineering, World Manufacturing Engineering and Market, vol. 3, 2004, pp.65-67.

[16] A. Verl, S. Frey, Correlation between feed velocity and preloading in ball screw drives, Ann. CIRP59 2, 2010, p.429–432.

DOI: 10.1016/j.cirp.2010.03.136

[17] T. A. Harris, Rolling Bearing Analysis, Wiley & Sons, New York, 1991, p.540–560.

[18] H. Li, Y. C. Shin, Integrated dynamic thermo-mechanical modeling of high speed spindles, part I : model development, transaction of the ASME, J. Manuf. Sci. Eng., vol. 126, 2004, p.148–158.

DOI: 10.1115/1.1644545

[19] Z.Z. Xu, X.J. Liu, H.K. Kim, J.H. Shin, S.K. Lyu, Thermal error forecast and performance evaluation for an air-cooling ball screw system, Int. J. Mach. Tools Manuf., vol. 51, 2011, p.605–611.

DOI: 10.1016/j.ijmachtools.2011.04.001
