Web Structural Optimization of the Big Aviation Herringbone Gear Based on APDL Language

Abstract:

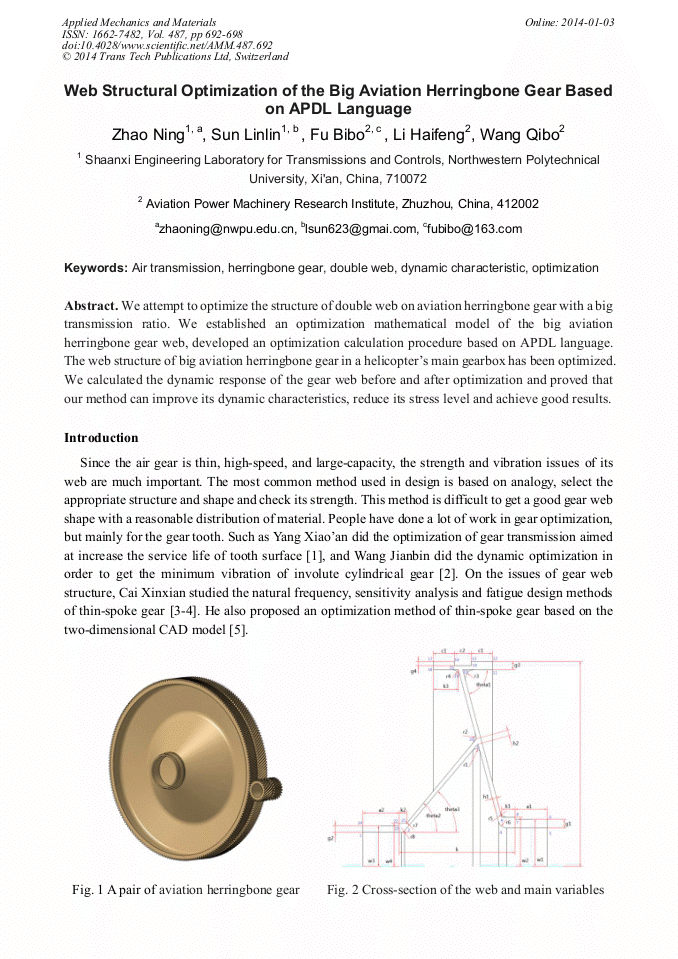

We attempt to optimize the structure of double web on aviation herringbone gear with a big transmission ratio. We established an optimization mathematical model of the big aviation herringbone gear web, developed an optimization calculation procedure based on APDL language. The web structure of big aviation herringbone gear in a helicopters main gearbox has been optimized. We calculated the dynamic response of the gear web before and after optimization and proved that our method can improve its dynamic characteristics, reduce its stress level and achieve good results.

You might also be interested in these eBooks

Mechanical Structures and Smart Materials

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volume 487)

Pages:

692-698

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.487.692

Citation:

Cite this paper

Online since:

January 2014

Authors:

Ning Zhao*, Lin Lin Sun, Bi Bo Fu, Hai Feng Li, Qi Bo Wang

Keywords:

Air Transmission, Double Web, Dynamic Characteristic, Herringbone Gear, Optimization
