Investigation on TiC_P/Al Composite Coating by TIG Cladding

Abstract:

TiCp/Al composites coating was in-situ synthesized on the L1060 alloy surface by TIG cladding. The microstructure and the phase of the coating were analyzed by OM, SEM, ADS and XRD, and the properties was been tested by micro-hardnessmeter and wear testing machine. The results show that the composite coating has no porosity, inclusions and other defects. The microstructure of the composite coating mainly consists of TiC particle and aluminum. Microstructural evidence suggests that the formation of TiC occur not only by reaction between Ti dissolved in Al and Al₄C₃, but also by reaction between C dissolved in Al and Al₃Ti. The hardness of the composite coating obtained by TIG cladding is up to 120HV_0.2. The wear resistance of composite coating is 1.6 times more than that of the matrix.

You might also be interested in these eBooks

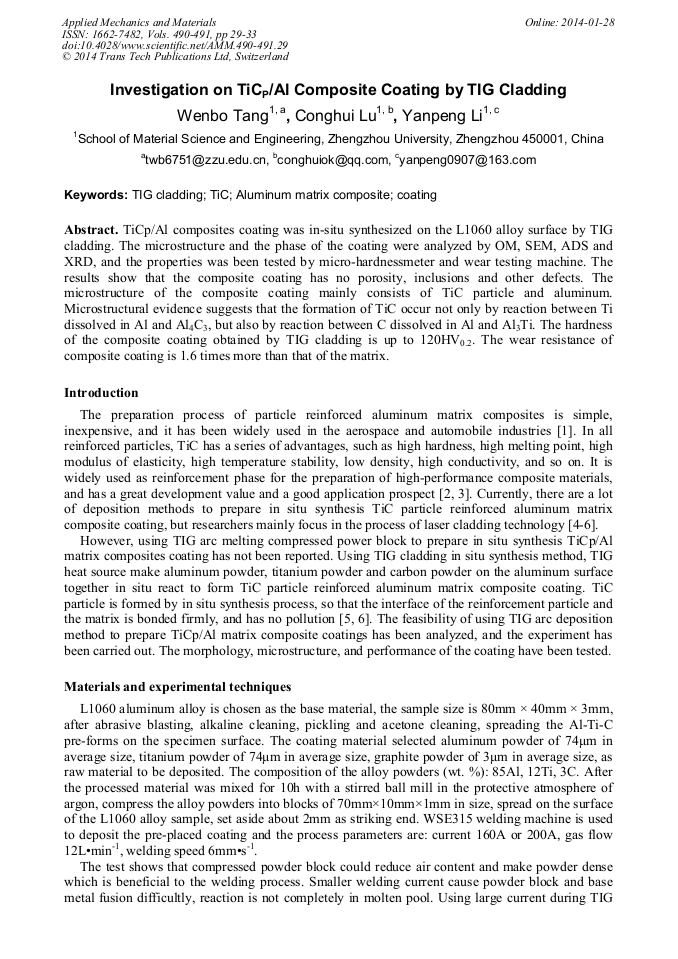

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volumes 490-491)

Pages:

29-33

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.490-491.29

Citation:

Cite this paper

Online since:

January 2014

Authors:

Wen Bo Tang, Cong Hui Lu, Yan Peng Li

Keywords:

Aluminum Matrix Composite (AMC), Coating, TiC, TIG Cladding

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Wang Lixue, Cao Liyun, Liu Haiou. Progress of aluminium matrix composites. Light Alloy Fabrication Technology, Vol. 33, 8 (2005), pp.10-12.

Google Scholar

[2] Locci A M, Orru R, Cao G, et al. Low gravity combustion synthesis theoretical analysis of experimental evidences. American Institute of Chemical Engineers Journal, Vol. 52, 11 (2006), pp.3744-3761.

Google Scholar

[3] Yang Yafeng, Wang Huiyuan, Liang Yunhong, et al. Fabrication of steel matrix composites locally reinforced with different ratios of TiC/TiB2 particulates using SHS reactions of Ni-Ti-B4C and Ni-Ti-B4C-C systems during casting. Materials Science and Engineering A, Vol. 445-446 (2007).

DOI: 10.1016/j.msea.2006.09.062

Google Scholar

[4] Hu C, Baker T N. Laser pressing to create in-situ Al-SiC surface metal matrix composites. Journal of Materials Science, Vol. 30, 4 (1995), pp.891-897.

DOI: 10.1007/bf01178422

Google Scholar

[5] Meng Yan, Hu Hanqi. In-situ laser surface coating of TiC metal matrix composite layer. Journal of Materials Science, Vol. 31, 6 (1996), pp.4303-4306.

DOI: 10.1007/bf00356453

Google Scholar

[6] Wu Xiao lei, Chen Guangnan. Microstructural characteristics and wear properties of in situ formed TiC particle reinforced coatings by laser cladding. Acta Metallurgica Sinica, Vol. 34, 12 (1998), pp.1284-1288.

Google Scholar

[7] Wenbo Tang, Yungang Guo, and Hongrui Wang. The Effect of Microstructure on Properties of Fe-Cr-C-Nb/Ti Hardfacing Alloy. Advanced Materials Reseach, Vol. 229(2011), pp.126-131.

DOI: 10.4028/www.scientific.net/amr.279.126

Google Scholar

[8] A. R Kennedy, D. P Weston, M. I Jones, C Enel. Reaction in Al-Ti-C powders and its relation to the formation and stability of TiC in Al at high temperatures. Scripta Materialia, Vol. 42, 12 (2000), p.1187–1192.

DOI: 10.1016/s1359-6462(00)00356-0

Google Scholar
