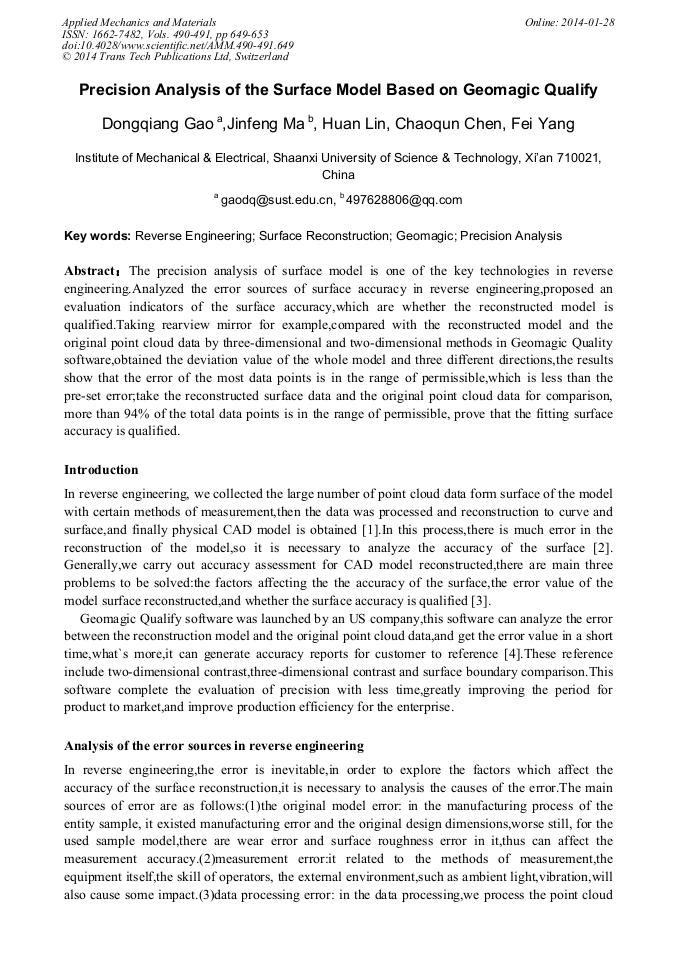

Precision Analysis of the Surface Model Based on Geomagic Qualify

Abstract:

The precision analysis of surface model is one of the key technologies in reverse engineering.Analyzed the error sources of surface accuracy in reverse engineering,proposed an evaluation indicators of the surface accuracy,which are whether the reconstructed model is qualified.Taking rearview mirror for example,compared with the reconstructed model and the original point cloud data by three-dimensional and two-dimensional methods in Geomagic Quality software,obtained the deviation value of the whole model and three different directions,the results show that the error of the most data points is in the range of permissible,which is less than the pre-set error;take the reconstructed surface data and the original point cloud data for comparison, more than 94% of the total data points is in the range of permissible, prove that the fitting surface accuracy is qualified.

• Periodical: Applied Mechanics and Materials (Volumes 490-491)
• Pages: 649-653
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.490-491.649
• Online since: January 2014
• Authors: Dong Qiang Gao, Jin Feng Ma, Huan Lin, Chao Qun Chen, Fei Yang
• Keywords: Geomagic, Precision Analysis, Reverse Engineering, Surface Reconstruction

References

[1] Wang Xiu-peng. The Measurement and Accuracy of Detection for the Aviation Parts and Components Based on Structured Light 3D [D]. ​​Wuhan: Huazhong University of Science ﹠ Technology, (2012).

[2] Li Xin, Zhu Hai-Yong. Reverse engineering model accuracy evaluation [J]. Science ﹠Technology Information, 2010 (27): 272.

[3] Jin Tao. Three-dimensional surface reconstruction of the product and its application in reverse engineering [D]. ​​Hangzhou: Zhejiang University, (2000).

[4] Chang Ji-hua. Reverse engineering in the automotive wheel surface reconstruction apply and research [D]. ​​Zhengzhou: Henan Polytechnic University, (2011).

[5] Zou Fu-qun, Cheng Si-yuan. Springback inspection for punching parts based on Geomagic Qualify [J]. Mechinel Design and Research, 2010, 26 (2) : 79-81.

[6] Pan Yang-Yu, Yu Zheng-quan. Reverse surface CAD model accuracy analysis [J]. Machinery, 2008, 46 (11) : 42-45.

[7] Liu Yu-jun, Li Yan-jun. Calculation method of two dimensional size chain of ship production accuracy control [J]. Shipbuilding of China, 2004, 45 (2) : 81-87.

[8] Hou Yue-qian, Tan Qing-chang, Shi Yao-chen. Reverse Modeling Design and Analysis on Automobile Rearview Mirror [J]. ENGINEERING ﹠ TEST, 2010, 50 (3) : 54-56.

[9] Wang Li-min, Zhou Tian-rui, Yuan Hui-ling. The progress of research on precision evaluation in reverse engineering [A]. Fourth Pan-Mechanical Engineering (forging) Annual Conference [C] . (2009).
