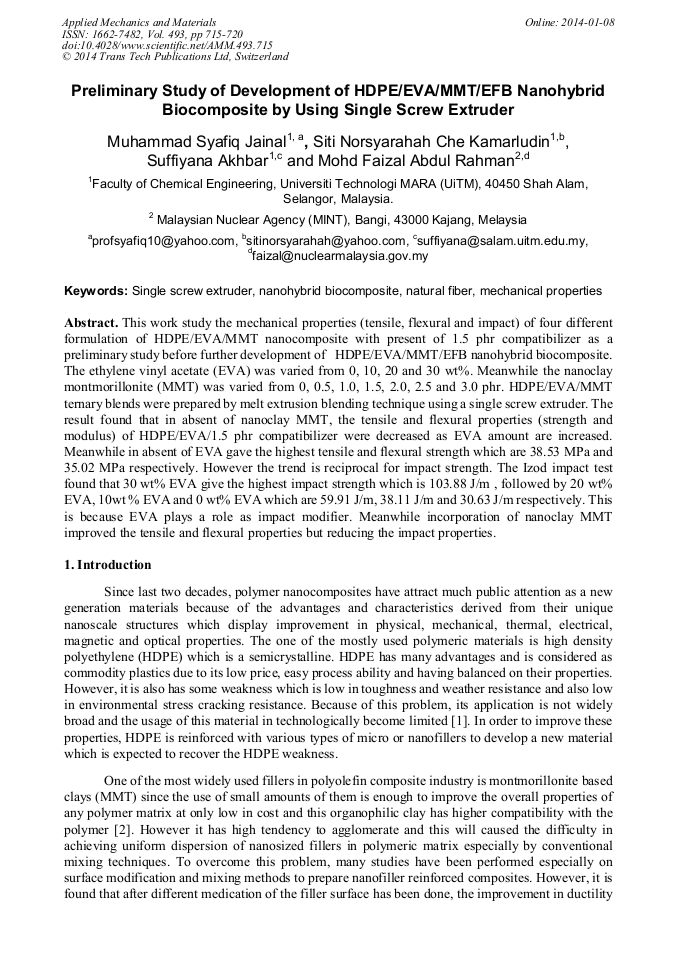

Preliminary Study of Development of HDPE/EVA/MMT/EFB Nanohybrid Biocomposite by Using Single Screw Extruder

Abstract:

This work study the mechanical properties (tensile, flexural and impact) of four different formulation of HDPE/EVA/MMT nanocomposite with present of 1.5 phr compatibilizer as a preliminary study before further development of HDPE/EVA/MMT/EFB nanohybrid biocomposite. The ethylene vinyl acetate (EVA) was varied from 0, 10, 20 and 30 wt%. Meanwhile the nanoclay montmorillonite (MMT) was varied from 0, 0.5, 1.0, 1.5, 2.0, 2.5 and 3.0 phr. HDPE/EVA/MMT ternary blends were prepared by melt extrusion blending technique using a single screw extruder. The result found that in absent of nanoclay MMT, the tensile and flexural properties (strength and modulus) of HDPE/EVA/1.5 phr compatibilizer were decreased as EVA amount are increased. Meanwhile in absent of EVA gave the highest tensile and flexural strength which are 38.53 MPa and 35.02 MPa respectively. However the trend is reciprocal for impact strength. The Izod impact test found that 30 wt% EVA give the highest impact strength which is 103.88 J/m , followed by 20 wt% EVA, 10wt % EVA and 0 wt% EVA which are 59.91 J/m, 38.11 J/m and 30.63 J/m respectively. This is because EVA plays a role as impact modifier. Meanwhile incorporation of nanoclay MMT improved the tensile and flexural properties but reducing the impact properties.

• Periodical: Applied Mechanics and Materials (Volume 493)
• Pages: 715-720
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.493.715
• Online since: January 2014
• Authors: Muhammad Syafiq Jainal, Siti Norsyarahah Che Kamarludin, Suffiyana Akhbar, Abdul Rahman Mohd Faizal
• Keywords: Mechanical Property, Nanohybrid Biocomposite, Natural Fiber, Single Screw Extruder

References

[1] Spitalskya Z, Tasisb D, Papagelisb K and Galiotis C. Carbon nanotube-polymer composites: Chemistry, processing, mechanical and electrical properties, Progress In Polymer Science 2010; 35(3): 357-401.

DOI: 10.1016/j.progpolymsci.2009.09.003

[2] J. Pascual, E. Fages, O. Fenollar, D. Garcı´a, R. Balart. (2009).

[3] Yuhai Wang, HaoShen, Gu LI, Kancheng Mai, Crystallization and melting behavior of PP/nano CaCO3 composites with different interfacial interaction, Journal of Thermal Analysis and Calorimetry, 99(2) : 399-407.

DOI: 10.1007/s10973-009-0130-4

[4] ChuanGuo Ma, Yu Liang Mai, Phase sturucture and mechanical properties of ternary polypropylene/ elastomer/ nanao-CaCO3 composite, Composite Sciences Technology 67: 2997-3005.

DOI: 10.1016/j.compscitech.2007.05.022

[5] La Mantia FP, Verso SL and Dintcheva NT, EVA Copolymer Base Nanocomposites, Macromol Mater Engineer, 287: 909–914.

DOI: 10.1002/mame.200290019

[6] Ali, Ilias, Al-Zahrani (2011), Mechanical and Morphological Analysis of HDPE/ EVA/ CaCO3 Ternary blends, King Saud University.

DOI: 10.1007/s00289-011-0608-7

[7] W.S. Chow, Z.A. Mohd Ishak, J. Karger-Kocsis, A.A. Ap and U.S. Ishiaku, Polymer Journal, 44: 7427–7440 (2003).

DOI: 10.1016/j.polymer.2003.09.006

[8] McCullen, S. D., Stano, K. L., Stevens, D. R., Roberts, W. R., Monteiro-Riviere, N. A., Clarke, L. I., et al. (2007).

[9] Alexandre, M., & Dubois, P. (2000). Polymer-layered silicate nanocomposites; preparation, properties and uses of a new class of materials. Materials Science and Engineering: R, 28, 1-68.

DOI: 10.1016/s0927-796x(00)00012-7

[10] Sinha Ray, S., & Bousmina, M. (2005). Biodegradable polymers and their layered silicate nanocomposites: in greening the 21st century materials world. Progress in Material Science, 50, 962e1079.

DOI: 10.1016/j.pmatsci.2005.05.002

[11] Pandey, J. K., Kumar, A. P., Misra, M., Mohanty, A. K., Drzal, L. T., & Singh, R. P. (2005). Recent advances in biodegradable nanocomposites. Journal of Nanoscience and Nanotechnology, 5, 497-526.

DOI: 10.1166/jnn.2005.111

[12] Pavlidou, S., & Papaspyrides, C. D. (2008). A review on polymer-layered silicate nanocomposites. Progress in Polymer Science, 33, 1119-1198.

DOI: 10.1016/j.progpolymsci.2008.07.008
