Effect of Intercritical Annealing Temperature and Holding Time on Microstructure and Mechanical Properties of Dual Phase Low Carbon Steel

Abstract:

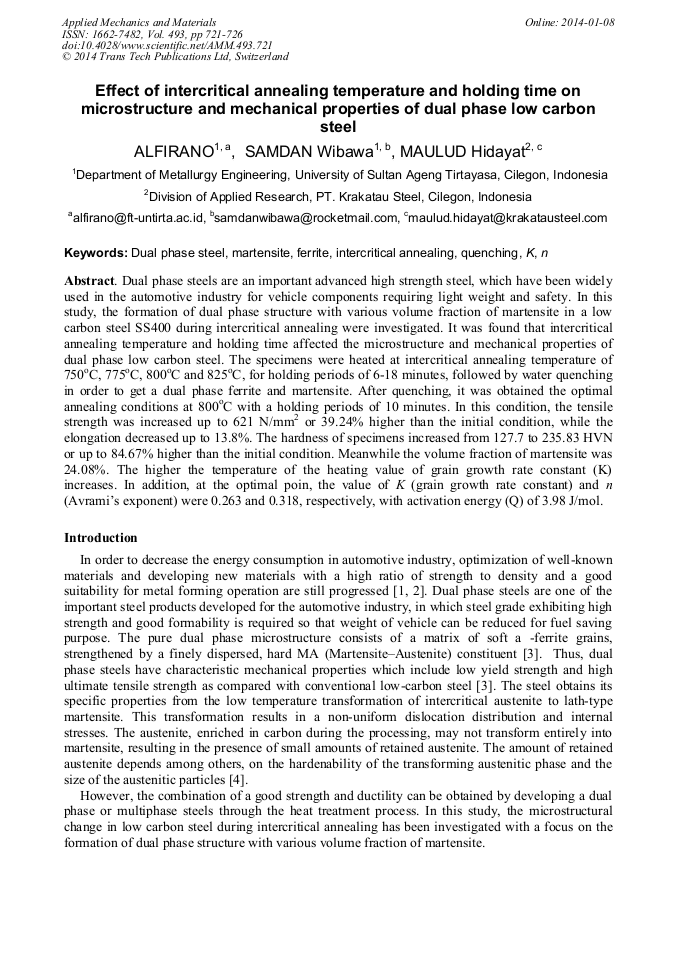

Dual phase steels are an important advanced high strength steel, which have been widely used in the automotive industry for vehicle components requiring light weight and safety. In this study, the formation of dual phase structure with various volume fraction of martensite in a low carbon steel SS400 during intercritical annealing were investigated. It was found that intercritical annealing temperature and holding time affected the microstructure and mechanical properties of dual phase low carbon steel. The specimens were heated at intercritical annealing temperature of 750°C, 775°C, 800°C and 825°C, for holding periods of 6-18 minutes, followed by water quenching in order to get a dual phase ferrite and martensite. After quenching, it was obtained the optimal annealing conditions at 800°C with a holding periods of 10 minutes. In this condition, the tensile strength was increased up to 621 N/mm² or 39.24% higher than the initial condition, while the elongation decreased up to 13.8%. The hardness of specimens increased from 127.7 to 235.83 HVN or up to 84.67% higher than the initial condition. Meanwhile the volume fraction of martensite was 24.08%. The higher the temperature of the heating value of grain growth rate constant (K) increases. In addition, at the optimal poin, the value of K (grain growth rate constant) and n (Avramis exponent) were 0.263 and 0.318, respectively, with activation energy (Q) of 3.98 J/mol.

• Periodical: Applied Mechanics and Materials (Volume 493)
• Pages: 721-726
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.493.721
• Online since: January 2014
• Authors: Alfirano Alfirano, Wibawa Samdan, Hidayat Maulud
• Keywords: Dual Phase Steel, Ferrite, Intercritical Annealing, K, Martensite, n, Quenching

References

[1] M. J. Lee, Advanced High Strength Steel Technology in the Ford500 and Freestyle, Great designs in steels, Semina, (2005).

[2] M.S. Rashid, Dual Phase Steels, Ann. Rev. Mater. Sci. (1981), 245-266.

[3] S. Sodjit and V. Uthaisangsuk, High Strength Dual Phase Steels and Flow Curve Modeling Approach, TSME-ICOME, (2011).

[4] G.R. Speech and R.L. Miler, Mechanical properties of ferit–martensit steels, New Orleans, LA, USA, (1979).

[5] ASM Metal handbook, Heat Treating, Vol 4.

[6] M.F. Ashaby and K.E. Easterling, Acta metallurgical. 30 (1982), 1969-(1978).

[7] A. Agusto, Steel forming and heat treating handbook, (2009).

[8] Saefudin, Analisa sifat mekanik baja fasa ganda pada proses perlakuan panas intercritical annealing dengan quenching untk baja karbon rendah, LIPI, Tangerang.

DOI: 10.30588/jo.v4i2.859

[9] Y. Okitsu, Fabrication of ultrafine grained steels without severe plastic deformation and their application to outomotive body structure, (2012).

[10] A. Sadabad et al., Kinetics of austenite formation in dual phase steels, ISIJ International. 48 (2008), 1251-1255.

DOI: 10.2355/isijinternational.48.1251

[11] S.H. Avner, Introduction to physical metallurgy, Mc. Graw Hill Book Company, 2nd ed, (1986).

[12] A. Kustiawan, Studi analisa sifat mekanik dan struktur mikro baja fasa ganda (dual phase steel) pada proses perlakuan panas intercritical annealing dengan pendinginan cepat (quenching) untk baja karbon rendah spec SPHC grade OA 0804, skripsi program sarjana teknik Untirta, Cilegon, (2003).

DOI: 10.22441/jtm.v6i4.2091

[13] A. Murugaiyan et al., Phase Transformations in Two C–Mn–Si–Cr Dual Phase Steels, ISIJ International. 46 (2006), 1489-1494.

DOI: 10.2355/isijinternational.46.1489

[14] T. Waterschoot et al., Tempering Kinetics of the Martensitic Phase in DP Steel, ISIJ International. 46 (2006), 138-146.

DOI: 10.2355/isijinternational.46.138
