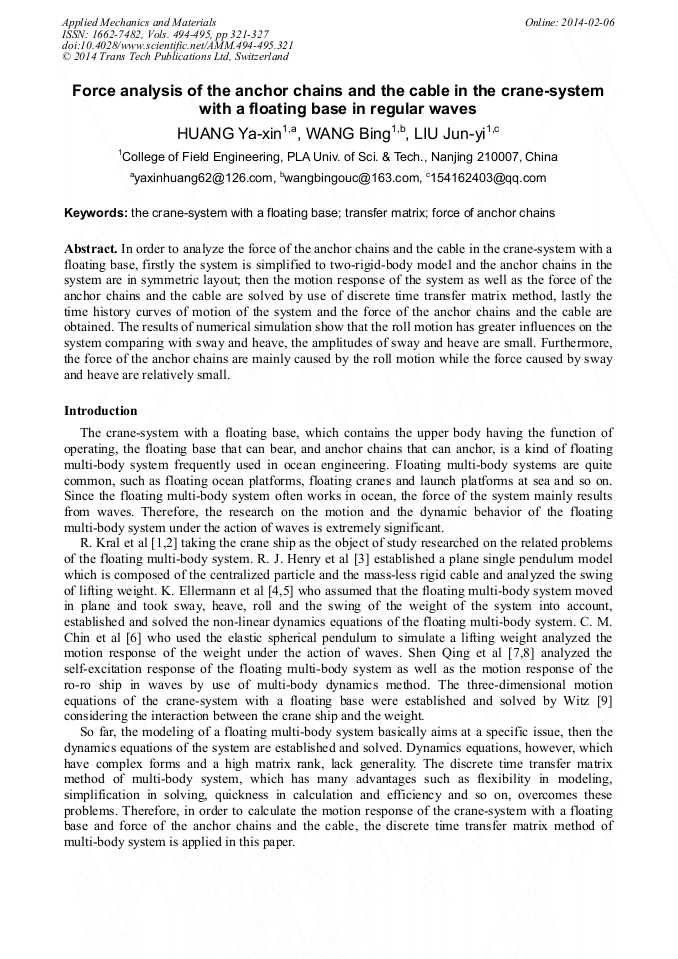

Force Analysis of the Anchor Chains and the Cable in the Crane-System with a Floating Base in Regular Waves

Abstract:

In order to analyze the force of the anchor chains and the cable in the crane-system with a floating base, firstly the system is simplified to two-rigid-body model and the anchor chains in the system are in symmetric layout; then the motion response of the system as well as the force of the anchor chains and the cable are solved by use of discrete time transfer matrix method, lastly the time history curves of motion of the system and the force of the anchor chains and the cable are obtained. The results of numerical simulation show that the roll motion has greater influences on the system comparing with sway and heave, the amplitudes of sway and heave are small. Furthermore, the force of the anchor chains are mainly caused by the roll motion while the force caused by sway and heave are relatively small.

• Periodical: Applied Mechanics and Materials (Volumes 494-495)
• Pages: 321-327
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.494-495.321
• Online since: February 2014
• Authors: Ya Xin Huang*, Bing Wang, Jun Yi Liu
• Keywords: Crane-System with a Floating Base, Force of Anchor Chains, Transfer Matrix

References

[1] R. Kral, E. Kreuzer, C. Wilmers, 1996. Nonlinear Oscillations of A Crane Ship. Proceedings of the 3rd international conference on industrial and applied mathematics. Berlin, Akademie Verlag.

[2] R. Kral, E. Kreuzer, 1993. Multibody Systems and Fluid-structure Interactions with Application to Floating Structures. Multibody System Dynamics, 3, 65-83.

[3] R. J. Henry, Z. N. Masoud, A. H. Nayfeh et al, 2001. Cargo Pendulation Reduction on Ship Mounted Cranes via Boom-Luff Angle Actuation. Journal of Vibration and Control, 7(8), 1253-1264.

DOI: 10.1177/107754630100700807

[4] K. Ellerman, E. Kreuzer, 2000. Moored Crane Vessels in Regular Waves. IUTAM symposium on recent developments in nonlinear oscillations of mechanical systems. Dordrecht, Kluwer Academic Publishers.

DOI: 10.1007/978-94-011-4150-5_11

[5] K. Ellerman, E. Kreuzer, M. Markiewicz, 2002. Nonlinear Dynamics of Floating Cranes. Nonlinear Dynamics, 27, 107-183.

[6] C. M. Chin, A. H. Nayfeh, D. T. Mook, 2001. Dynamics and Control of Ship Mounted Cranes. Journal of Vibration and Control, 7(6), 891-904.

DOI: 10.1177/107754630100700607

[7] Shen Qing, Li Yue, Chen Xujun, 2003. Dynamic Analysis of Multi-bodies System with a Floating Base for Rolling of Ro-Ro Ship Caused by Wave and Slip of Heavy Load. Journal of Marine Science and Application, 2(2), 17-24.

DOI: 10.1007/bf02918659

[8] Shen Qing, Li Yue, Wu Guanghuai, 2003. Dynamic Analysis of Floating Base Multibodies System for Emergent Unloading Process of Roll-on Heavy Loads. Journal of Ship Mechanics, 7(6), 37-46.

[9] J. A. Witz, 1995. Parametric Excitation of Crane Loads in Moderate Sea States. Ocean Engineering, 22(4), 411-420.

DOI: 10.1016/0029-8018(94)00015-y

[10] RUI Xiaoting, 2008. Transfer Matrix Method of Multibody System and its Application. Science Press, Beijing.

[11] WANG Xuelin, YOU Xinyi, HU Yujin, 2010. Dynamic Simulation of Crane Hoisting under the Action of Regular Waves. China Mechanical Engineering, 21(9), 1077-1082.

[12] T. E. Schellin, T. C. Jiang, 1993. Ostergaard. Respionse Analysis and Operating Limits of Crane Ships [J]. Journal of Ship Research, 37(3), 225-238.

DOI: 10.5957/jsr.1993.37.3.225

[13] LIN Xiufeng, XIE Yongqun, HUANG Zutai, 1998. Design and Research on Rotary Crane FQ311-5. Forest Engineering, 14 (1), 23-24.
