Design a Kind of Oblique-Cone-Sliding-Ring Assembly Seal Device

Jian Hua Fang; Wei Yan

doi:10.4028/www.scientific.net/AMM.496-500.1007

Paper Titles

Analysis of Mechanical Seal Leakage within Hydrostatic on Nuclear Reactor Coolant Pump
p.990

Quantitative Assessment on Blast Effects of the Boiler BLEVE
p.995

State of Charge Estimation of Lithium-Ion Battery Using Extended Kalman Filter Based on a Comprehensive Model
p.999

Forecasting Algorithm of Heavy Vehicle Roll over Based on Road Collaborative
p.1003

Design a Kind of Oblique-Cone-Sliding-Ring Assembly Seal Device
p.1007

Study on Pneumatic Control of Shotcrete Machine Booster Manipulator
p.1012

Modal Testing and Analysis of Z-Axis Supporting Plate for High–Speed PCB NC Drilling Machine
p.1016

Chilled Energy Storage for Air-Conditioning System of Buildings
p.1020

Modeling and Simulation for the Feed System of CNC Machine
p.1024

HomeApplied Mechanics and MaterialsApplied Mechanics and Materials Vols. 496-500Design a Kind of Oblique-Cone-Sliding-Ring...

Design a Kind of Oblique-Cone-Sliding-Ring Assembly Seal Device

Abstract:

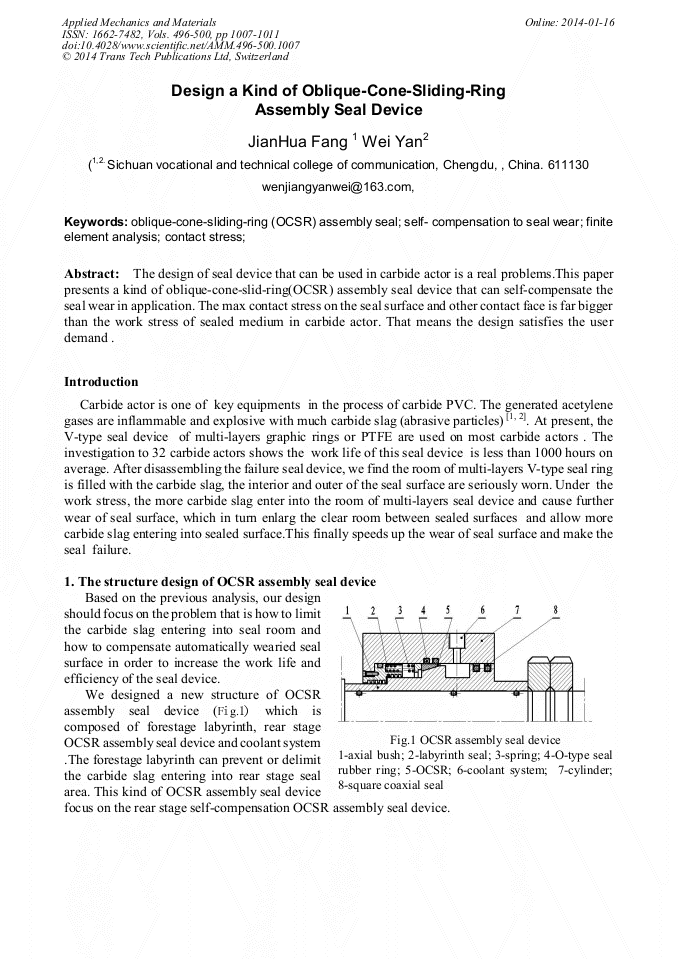

The design of seal device that can be used in carbide actor is a real problems.This paper presents a kind of oblique-cone-slid-ring (OCSR) assembly seal device that can self-compensate the seal wear in application. The max contact stress on the seal surface and other contact face is far bigger than the work stress of sealed medium in carbide actor. That means the design satisfies the user demand . Keywords: oblique-cone-sliding-ring (OCSR) assembly seal; self-compensation to seal wear; finite element analysis; contact stress;
