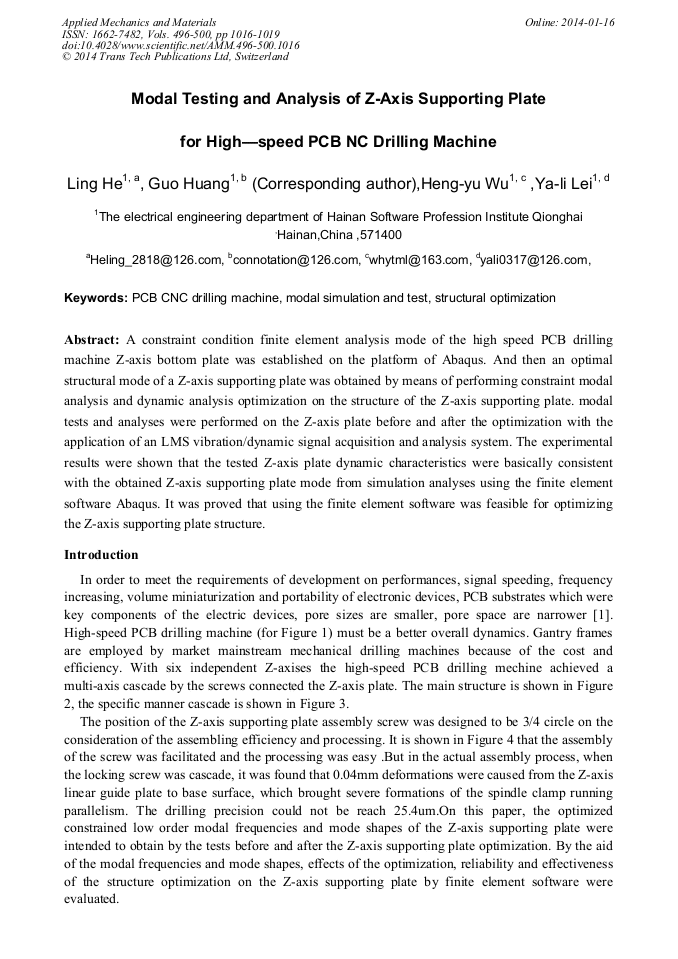

Modal Testing and Analysis of Z-Axis Supporting Plate for High–Speed PCB NC Drilling Machine

Abstract:

A constraint condition finite element analysis mode of the high speed PCB drilling machine Z-axis bottom plate was established on the platform of Abaqus. And then an optimal structural mode of a Z-axis supporting plate was obtained by means of performing constraint modal analysis and dynamic analysis optimization on the structure of the Z-axis supporting plate. modal tests and analyses were performed on the Z-axis plate before and after the optimization with the application of an LMS vibration/dynamic signal acquisition and analysis system. The experimental results were shown that the tested Z-axis plate dynamic characteristics were basically consistent with the obtained Z-axis supporting plate mode from simulation analyses using the finite element software Abaqus. It was proved that using the finite element software was feasible for optimizing the Z-axis supporting plate structure.

• Periodical: Applied Mechanics and Materials (Volumes 496-500)
• Pages: 1016-1019
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.496-500.1016
• Online since: January 2014
• Authors: Ling He, Guo Huang*, Heng Yu Wu, Ya Li Lei
• Keywords: Modal Simulation, PCB CNC Drilling Machine, Structural Optimization, Test

References

[1] HU Gao-bin. High and Server PCB Technology Trend and Challenge. Printed Circuit Information, 2011, 4: P1-4.

[2] Li De-bao. Analysis of engineering vibration test[M]. Beijing: Tsinghua University press, (2004).

[3] Cheng Yao-dong. Mechanical vibration[M]. Hangzhou: Zhejiang University press, 1998: P204.

[4] Fu Zhi-fang. The modal analysis theory and application[M]. Beijing: China Machine Press, 2010. 17: P92-93.
