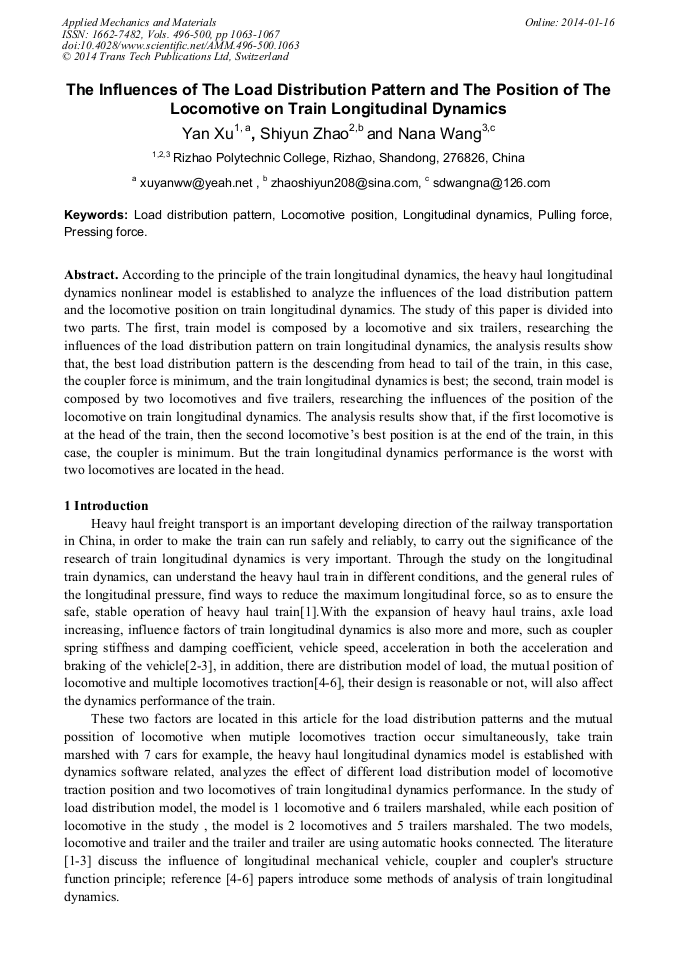

The Influences of the Load Distribution Pattern and the Position of the Locomotive on Train Longitudinal Dynamics

Abstract:

According to the principle of the train longitudinal dynamics, the heavy haul longitudinal dynamics nonlinear model is established to analyze the influences of the load distribution pattern and the locomotive position on train longitudinal dynamics. The study of this paper is divided into two parts. The first, train model is composed by a locomotive and six trailers, researching the influences of the load distribution pattern on train longitudinal dynamics, the analysis results show that, the best load distribution pattern is the descending from head to tail of the train, in this case, the coupler force is minimum, and the train longitudinal dynamics is best; the second, train model is composed by two locomotives and five trailers, researching the influences of the position of the locomotive on train longitudinal dynamics. The analysis results show that, if the first locomotive is at the head of the train, then the second locomotives best position is at the end of the train, in this case, the coupler is minimum. But the train longitudinal dynamics performance is the worst with two locomotives are located in the head.

• Periodical: Applied Mechanics and Materials (Volumes 496-500)
• Pages: 1063-1067
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.496-500.1063
• Online since: January 2014
• Authors: Yan Xu, Shi Yun Zhao, Na Na Wang
• Keywords: Load Distribution Pattern, Locomotive Position, Longitudinal Dynamics, Pressing Force, Pulling Force

References

[1] Iwnicki: Handbook of railway vehicle dynamics, 2006, CRC Taylor and Francis.

[2] Xiaoming Yan, Weihua Ma, Juanjie Yang: Shihui Luo. Analysis of 20000 t combined train braking stability hook ability[A]. Chongqing Engineering Journal, 2009, in chinese.

[3] Chongyi Chang, ChengguoWang, Dawei Ma, Bo Zhang: Study on Calculation of longitudinal force of 20000 t combined train[A]. Journal of the China Railway Society, (2006).

[4] Ansari, M. and Hazrati: Investigation and field measurement of the wear trend in train wheels, proceeding of The ASME/IEEE Joint rail conference, Atlanta, USA.

[5] El-Sibaie, M. Recent: Advancements in Buff and Draft Testing Techniques[C]/ASME. Proceedings of the 1993 IEEE/ Joint Railroad Conference, Pittsburgh. New York: ASME, 1993, pp.115-119.

DOI: 10.1109/rrcon.1993.292955

[6] Haitao Chen, Lixin Qian: Method for solving the longitudinal dynamics model of heavy haul train braking[J]. Railway vehicles, 2008, 36(11), pp.10-12 , in Chinese.

[7] Jinghua Peng: Research on Simulation of city rail transit vehicles[S]．Chengdu: Southwest Jiao Tong University, 2005 , in chinese.

[8] Jonathan Paddi serl, etal(Germany): Mechatronics Simplify Brake Control Systems. IRJ. (2008).
