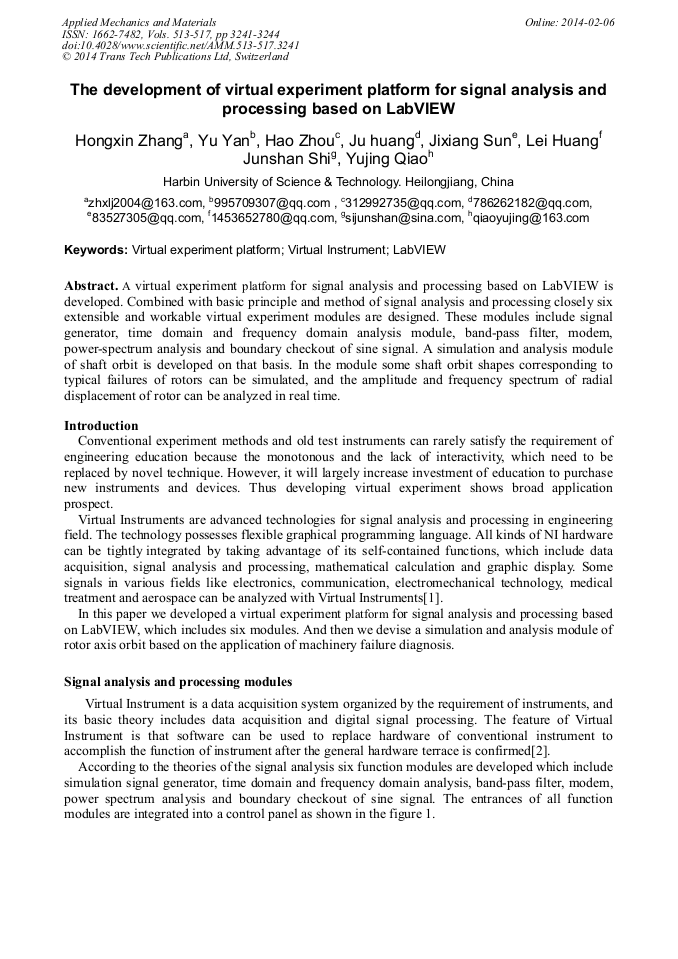

The Development of Virtual Experiment Platform for Signal Analysis and Processing Based on LabVIEW

Abstract:

A virtual experiment platform for signal analysis and processing based on LabVIEW is developed. Combined with basic principle and method of signal analysis and processing closely six extensible and workable virtual experiment modules are designed. These modules include signal generator, time domain and frequency domain analysis module, band-pass filter, modem, power-spectrum analysis and boundary checkout of sine signal. A simulation and analysis module of shaft orbit is developed on that basis. In the module some shaft orbit shapes corresponding to typical failures of rotors can be simulated, and the amplitude and frequency spectrum of radial displacement of rotor can be analyzed in real time.

• Periodical: Applied Mechanics and Materials (Volumes 513-517)
• Pages: 3241-3244
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.513-517.3241
• Online since: February 2014
• Authors: Hong Xin Zhang*, Yu Yan, Hao Zhou, Ju Huang, Ji Xiang Sun, Lei Huang, Jun Shan Shi, Yu Jing Qiao
• Keywords: LabVIEW, Virtual Experiment Platform, Virtual Instrument (VI)

References

[1] X. Y. Su, Y. Deng and R. Luo: EEPW Vol. 1-2 (2010) P. 29-31 (In Chinese).

[2] Rizvi. Syed Ali Asad, Sunder. Sham, Haroon. Farah, and Haroon. Farah: CCIS Vol. 281 (2012) P. 397-408.

[3] D. Wu: Journal of Mechanical Transmission Vol. 35 (2011) P. 26-30 (In Chinese).

[4] S. G. Xiao: CHINA MEASUREMENT & TEST Vol. 35 (2009) P. 7-10 (In Chinese).
