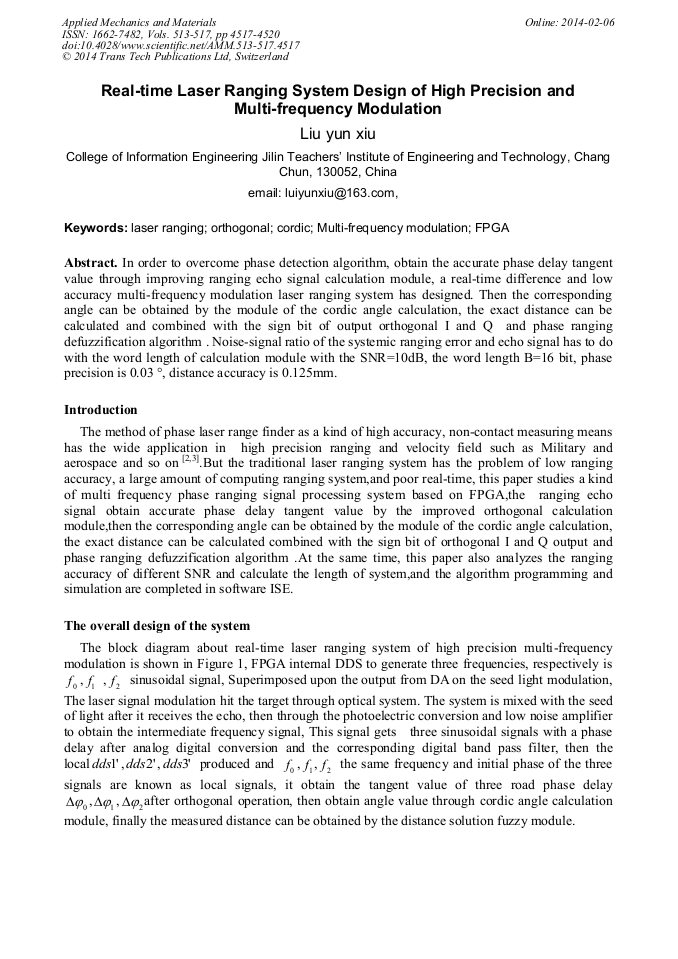

Real-Time Laser Ranging System Design of High Precision and Multi-Frequency Modulation

Abstract:

In order to overcome phase detection algorithm, obtain the accurate phase delay tangent value through improving ranging echo signal calculation module, a real-time difference and low accuracy multi-frequency modulation laser ranging system has designed. Then the corresponding angle can be obtained by the module of the cordic angle calculation, the exact distance can be calculated and combined with the sign bit of output orthogonal I and Q and phase ranging defuzzification algorithm . Noise-signal ratio of the systemic ranging error and echo signal has to do with the word length of calculation module with the SNR=10dB, the word length B=16 bit, phase precision is 0.03 °, distance accuracy is 0.125mm.

• Periodical: Applied Mechanics and Materials (Volumes 513-517)
• Pages: 4517-4520
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.513-517.4517
• Online since: February 2014
• Authors: Yun Xiu Liu*
• Keywords: CORDIC, FPGA, Laser Ranging, Multi-Frequency Modulation, Orthogonal

References

[1] Kyu Tak Son;   Lee, C.C.;  Multiple-Target Laser Range finding Receiver Using a Silicon Photomultiplier Array. IEEE Transactions on Instrumentation and Measurement, 2010, 59(11).

DOI: 10.1109/tim.2010.2047127

[2] Yang Fu, He Yan, Chen Weibiao. Parameter design of space-borne laser altimeter[J]. Acta Optica Sinaca, 2008, 28(3): 573~577.

DOI: 10.3788/aos20082803.0573

[3] Sondej T and Pelka R 2001 Data processing and calibration in precision laser rangefinder Proc. IEEE/LEOS ODIMAP III (Pavia, 2001) p.124–9.

[4] HU Y H. The quantization effects of the CORDIC algorithm[J]. IEEE Transactions on Signal Processing, 1992, 40(4) : 834-844.

DOI: 10.1109/78.127956

[5] Journet, B.; Bazin, G.; LESIR, Cachan A low-cost laser range finder based on an FMCW-like method, IEEE Transactions on Instrumentation and Measurement, 2000, 49(4): 840-843.

DOI: 10.1109/19.863935
