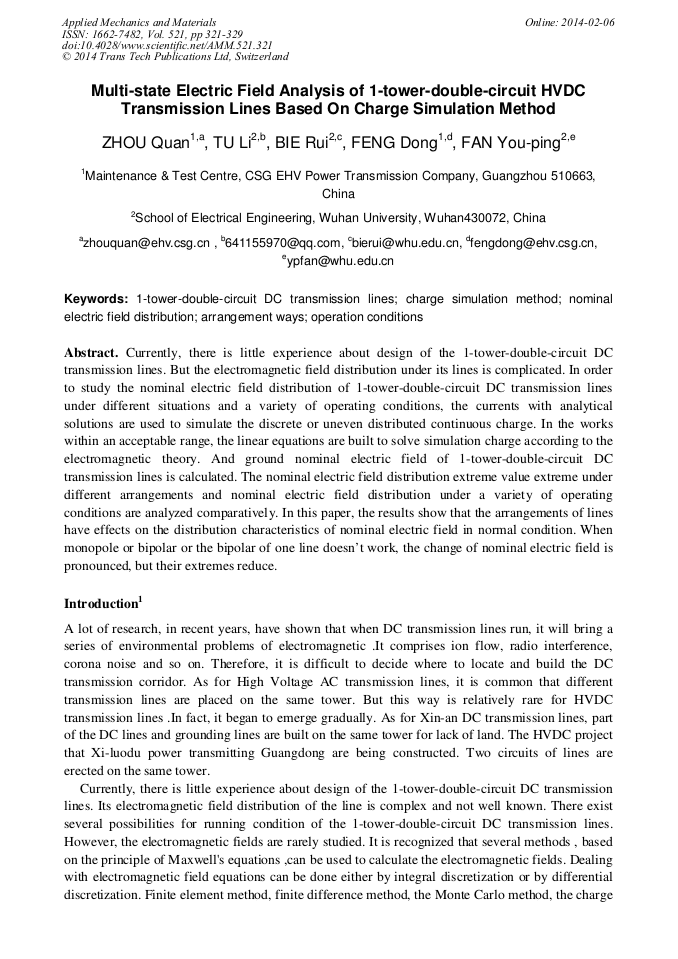

Multi-State Electric Field Analysis of 1-Tower-Double-Circuit HVDC Transmission Lines Based on Charge Simulation Method

Abstract:

Currently, there is little experience about design of the 1-tower-double-circuit DC transmission lines. But the electromagnetic field distribution under its lines is complicated. In order to study the nominal electric field distribution of 1-tower-double-circuit DC transmission lines under different situations and a variety of operating conditions, the currents with analytical solutions are used to simulate the discrete or uneven distributed continuous charge. In the works within an acceptable range, the linear equations are built to solve simulation charge according to the electromagnetic theory. And ground nominal electric field of 1-tower-double-circuit DC transmission lines is calculated. The nominal electric field distribution extreme value extreme under different arrangements and nominal electric field distribution under a variety of operating conditions are analyzed comparatively. In this paper, the results show that the arrangements of lines have effects on the distribution characteristics of nominal electric field in normal condition. When monopole or bipolar or the bipolar of one line doesnt work, the change of nominal electric field is pronounced, but their extremes reduce.

• Periodical: Applied Mechanics and Materials (Volume 521)
• Pages: 321-329
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.521.321
• Online since: February 2014
• Authors: Quan Zhou, Li Tu, Rui Bie*, Dong Feng, You Ping Fan
• Keywords: 1-Tower-Double-Circuit DC Transmission Lines, Arrangement Ways, Charge Simulation Method, Nominal Electric Field Distribution, Operation Conditions

References

[1] SHENG Jianni. Engineering Electromagnetic field numerical analysis [M]. First edition, Xi'an, Xi'an Jiaotong University Press, (1991).

[2] DAI Xijie. HVDC foundation[M]. Beijing, Water Conservancy Electrical Power Press, 1990: 230-264.

[3] WU Guifang, LU Jiayu, SHAO Fangyin. A higher voltage level transmission of electromagnetic environmental research [J]. Chinese Association 2004 Annual Meeting of electricity sub-venue-cum-Chinese Society for Electrical Engineering 2004 Conference Proceedings, 630-633, China Hainan.

[4] FU Binlan. Ge - Shang ± 500kV DC transmission line environmental impact [J]. Chinese Power, 1995, 1: 7-11, 45.

[5] U.S. Banville Power Authority working group of ecological research. Electric transmission lines and Ecological Effects [M]. Beijing: Ministry of Water Resources Research Institute Publishing, (1987).

[6] B.L. Qin, J.N. Sheng, Z. Yan, G. Gela. Accurate calculation of ion flow field under . HVDC bipolar transmission lines [J]. IEEE Transactions on Power Delivery, 1988, 3(l): 368-37.

DOI: 10.1109/61.4266

[7] Ming Yu,E. Kuffel. A New Algorithm for Evaluating the Fields Associated with HVDC Power Transmission Lines in the Presence of Corona and Strong Wind[J]. IEEE Transactions on Magnetics, 1993, 29(2): 1985-(1988).

DOI: 10.1109/20.250798

[8] W. Janischewskyj, G. Gela, Finite element solution for electric fields of coronating DC transimission lines [J]. IEEE Transactions on Power Apparatus and Systems. 1979, PAS-98(3): 1000-1012.

DOI: 10.1109/tpas.1979.319258

[9] H. Yala, Y. Zebboudj. Analysis of current and electric field distributions beneath a Positive DC wire-to-plane corona [J]. UPEC 2002, 37th International Universities Power Conference, Stafford, United Kingdom, 2002, Sep. 9-11, 372-376.

DOI: 10.1051/epjap:2002099
