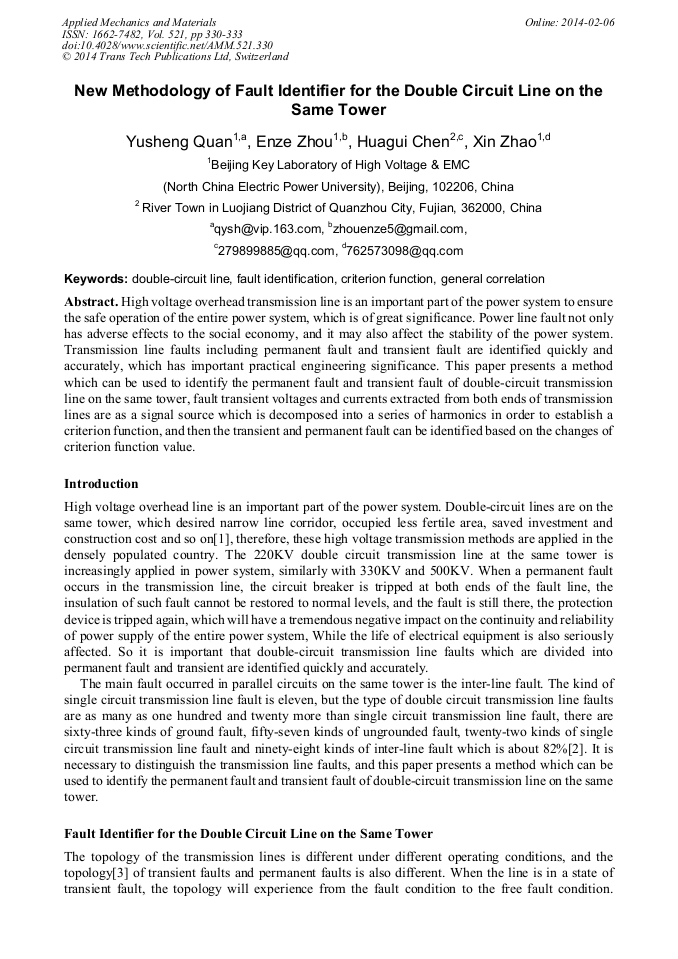

New Methodology of Fault Identifier for the Double Circuit Line on the same Tower

Abstract:

High voltage overhead transmission line is an important part of the power system to ensure the safe operation of the entire power system, which is of great significance. Power line fault not only has adverse effects to the social economy, and it may also affect the stability of the power system. Transmission line faults including permanent fault and transient fault are identified quickly and accurately, which has important practical engineering significance. This paper presents a method which can be used to identify the permanent fault and transient fault of double-circuit transmission line on the same tower, fault transient voltages and currents extracted from both ends of transmission lines are as a signal source which is decomposed into a series of harmonics in order to establish a criterion function, and then the transient and permanent fault can be identified based on the changes of criterion function value.

• Periodical: Applied Mechanics and Materials (Volume 521)
• Pages: 330-333
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.521.330
• Online since: February 2014
• Authors: Yu Sheng Quan*, En Ze Zhou, Hua Gui Chen, Xin Zhao
• Keywords: Criterion Function, Double-Circuit Line, Fault Identification, General Correlation

References

[1] Wanshun Liu, Weidong Hu, Rsearch on Fault Location Algorithm for EHV Transmission Lines[D]. Beijing: North China Electric Power University, 2007. 1(in Chinese).

[2] Yaozhong Ge, A New Type of Relay Protection and Fault Location Principle and Technology[M]. Xi'an: Xi 'an Jiaotong University Press, 1996, 127-183(in Chinese).

[3] Xiaofan Wang, Xiang Li, Guanrong Chen, Complex Networks Theory and its Application[M]. Beijing: Tsinghua University Press, 2006(in Chinese).

[4] Xu Jinkai, Zhang Lizhong, Jin Jiachen, et a1. Design and Application of Air-borne optoelectronic Stabilized Pod Systems for Power Line Inspection Applied in Cold Areas[J]. Proceedings of the CSEE，2012, 32(31): 200-208 (in Chinese).

[5] Sun Yu, Wang Xiuli, Wang Jianxue, et a1. Overhead Transmission Line Icing Flashover Trip Characteristic Analysis and Risk Model[J]. Proceedings of the CSEE，2011, 31(31): 149-158 (in Chinese).

[6] Shu Lichun, LI Te, JIANG Xingliang, et a1. Influences of AC Electric Field Strength on Conductor Rime Icing Performance[J]. Proceedings of the CSEE，2012, 32(19): 140-147 (in Chinese).
