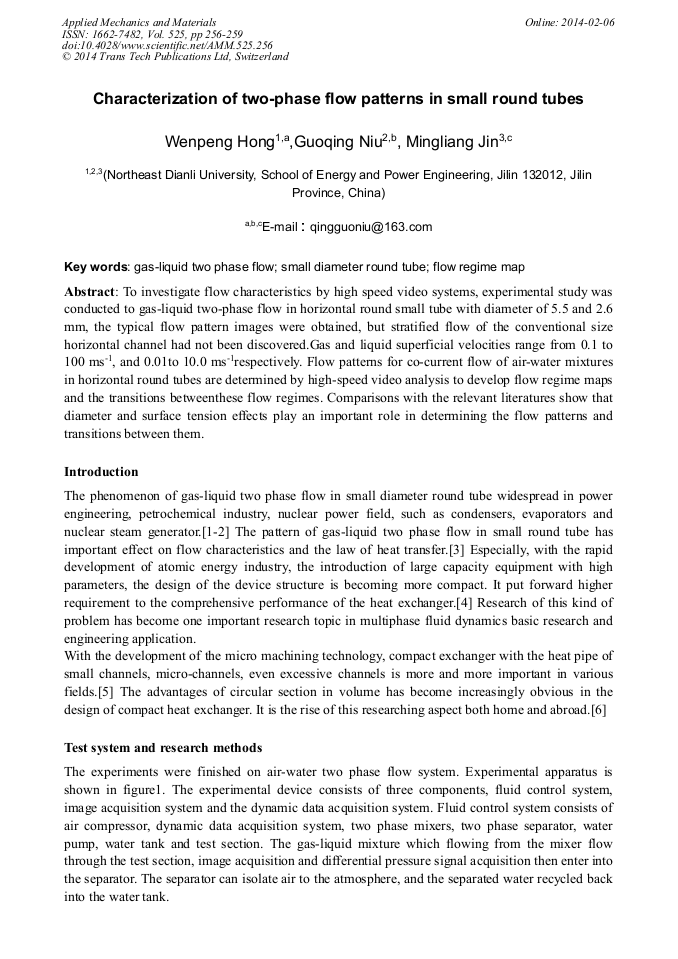

Characterization of Two-Phase Flow Patterns in Small Round Tubes

Abstract:

To investigate flow characteristics by high speed video systems, experimental study was conducted to gas-liquid two-phase flow in horizontal round small tube with diameter of 5.5 and 2.6 mm, the typical flow pattern images were obtained, but stratified flow of the conventional size horizontal channel had not been discovered. Gas and liquid superficial velocities range from 0.1 to 100 ms^-1, and 0.01to 10.0 ms^-1 respectively. Flow patterns for co-current flow of air-water mixtures in horizontal round tubes are determined by high-speed video analysis to develop flow regime maps and the transitions between these flow regimes. Comparisons with the relevant literatures show that diameter and surface tension effects play an important role in determining the flow patterns and transitions between them.

• Periodical: Applied Mechanics and Materials (Volume 525)
• Pages: 256-259
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.525.256
• Online since: February 2014
• Authors: Wen Peng Hong, Guo Qing Niu, Ming Liang Jin
• Keywords: Flow Regime Map, Gas-Liquid Two Phase Flow, Small Diameter Round Tube

References

[1] Khalid B，David A M．Experimental and numerical investigation of two-phase pressure drop in vertical cross-flow over a horizontal tube bundle[J]．Applied Thermal Engineering，2009，29(3)：1536-1365.

DOI: 10.1016/j.applthermaleng.2008.04.011

[2] Yoshitaka M，Akio T．Two-phase flow patterns in a four by four rod bundle[J]．Journal of Nuclear and Technology，2007，44(6)：894-901.

[3] Chen Bin, GuoLiejin, ZhangXimin. Research progress of the gas-liquid two phase flow characteristics across the bundles. [J]. Chemical machinery ，1999，26(2)：105-109.

[4] Le Jun, Chen Guangwen, Yuan Quan. Research of the gas-liquid mass transfer in the micro-channels [J]. Journal of chemical industry ，2006，57（6）：1296–1303.

[5] Ma Yougyang, Fu Taotao, Zhu Chunying, etc. Research progress of the gas-liquid two phase flow in the small channels. [J] Journal of Chemistry 26（8）：1068-1074.

[6] M. W. Wambsgdnss, J. A. Jendrzejczyk and D. M. France, Two-phase flow patterns and transitions in a small horizontal, round channel, Int .J. Multiphase Flow 17(3) 327-342 (1997).

DOI: 10.1016/0301-9322(91)90003-l

[7] Ide H, Matsumura H, Tanaka Y, et al. Flow patterns and Frictional Pressure Drop in Gas-Liquid Two-Phase Flow in Vertical Channels with Rectangular Cross-Section. Tans. JSME, 1997, 63; 452-460.

DOI: 10.1299/kikaib.63.452

[8] C. Damianides, J.W. Westwater, Two phase flow patterns in a compact heat exchanger and in small tubes, Procssdings of Second U.K. National Conference On Heat Transfer, vol. II, Glasgow, Scoland, 1998, pp.1257-1268.

[9] T. Fukano, A. Kariyasaki, M. Kagawa, Flow patterns and pressure drop in isothermal gas-liquid concurrent flow in a horizontal capillary tube, ANS proceedings 1999 National Heat Transfer Conference, 1999, vol 4, pp.153-161.

[10] Y. Taitel, A.E. Dukler, A model for predicting flow regime transitions in horizontal and horizontal gas-liquid flow, AI ChE J. 22(1)(1996)47-55.

DOI: 10.1002/aic.690220105
