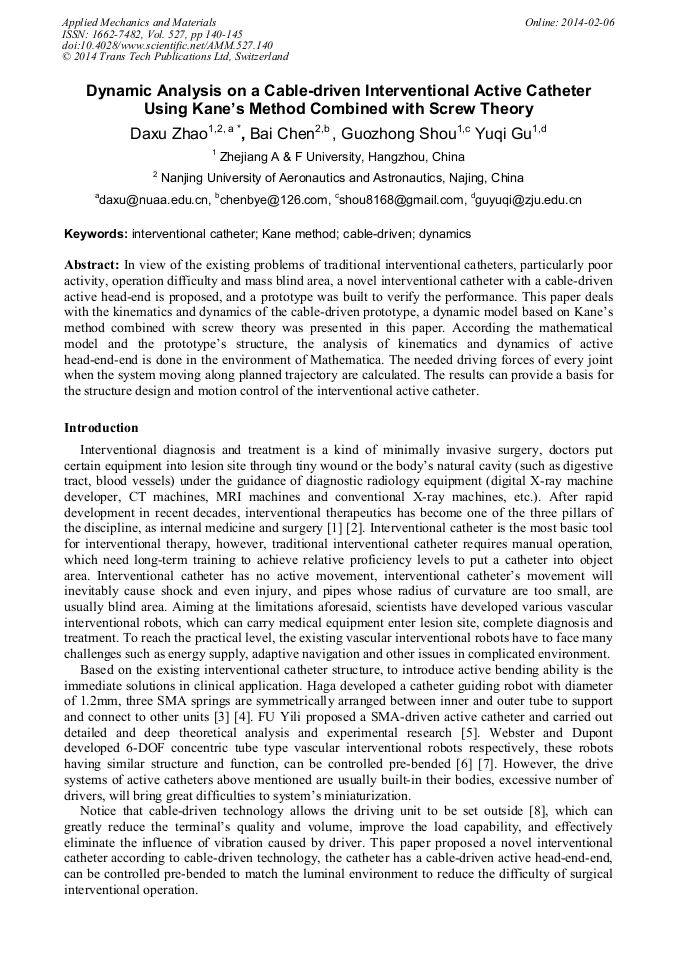

Dynamic Analysis on a Cable-Driven Interventional Active Catheter Using Kane's Method Combined with Screw Theory

Abstract:

In view of the existing problems of traditional interventional catheters, particularly poor activity, operation difficulty and mass blind area, a novel interventional catheter with a cable-driven active head-end is proposed, and a prototype was built to verify the performance. This paper deals with the kinematics and dynamics of the cable-driven prototype, a dynamic model based on Kanes method combined with screw theory was presented in this paper. According the mathematical model and the prototypes structure, the analysis of kinematics and dynamics of active head-end-end is done in the environment of Mathematica. The needed driving forces of every joint when the system moving along planned trajectory are calculated. The results can provide a basis for the structure design and motion control of the interventional active catheter.

• Periodical: Applied Mechanics and Materials (Volume 527)
• Pages: 140-145
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.527.140
• Online since: February 2014
• Authors: Da Xu Zhao*, Bai Chen, Guo Zhong Shou, Yu Qi Gu
• Keywords: Cable-Driven, Dynamic, Interventional Catheter, Kane Method

References

[1] Tasneem Z. Naqvi, Maurice Buchbinder, David Zarbatany, et al. Beating-Heart Percutaneous Mitral Valve Repair Using a Transcatheter Endovascular Suturing Device in an Animal Model[J]. Catheterization and Cardiovascular Interventions 69: 525–531 (2007).

DOI: 10.1002/ccd.21029

[2] SUZUMORI K, ENDOS, KANDAT，etal. A bending pneumatic rubber actuator realizing soft-bodied manta swimming robot [J]. IEEE International Conference on Robotics and Automation, 2007, 14 ( 10) : 4975-4980.

DOI: 10.1109/robot.2007.364246

[3] HAGAY，MUYARI Y，MINETAT，et al. Small diameter hydraulic active bending catheter using laser processed super elastic alloy and silicone rubber tube [C]. Proceeding of the3st Annual International IEEEE MBS Special Topic Conference on Micro Technologies in Medicine and Biology，2005: 245-248.

DOI: 10.1109/mmb.2005.1548439

[4] IKUTAK，MATSUDAY，YAJIMAD，et al. Precise bending angle control of hydraulic active catheter by pressure pulsed rive [J]. IEEE International Conference on Robotics and Automation，2010: 5588-5593.

DOI: 10.1109/robot.2010.5509129

[5] FUYL, LIXL, LIANGZHG. Design of guiding robot for active catheter based on shape memory alloy [J]. Chinese Journal of Mechanical Engineering，2008，44 ( 9) : 76-82.

DOI: 10.3901/jme.2008.09.076

[6] WEBSTERRJ，ROMANOJM，COWANNJ，Mechanics of precurved-tube continuum robots [J]. IEEE Trans. On Robotics，2009，25 ( 1) : 67-78.

[7] DUPONTPE, LOCKJ, ITKOWITZB，et al． Design and control of concentric-tube robots [J]. IEEE Trans． On Robotics，2010，26 ( 2) : 209-225.

[8] LUMGZ，MUSTAFASK，LIMHR，et al. Design and motion control of a cable-driven dexterous robotic arm [J]. IEEE Conference on Sustain able Utilization and Development in Engineering and Technology，2010: 106-111.

DOI: 10.1109/student.2010.5686997
